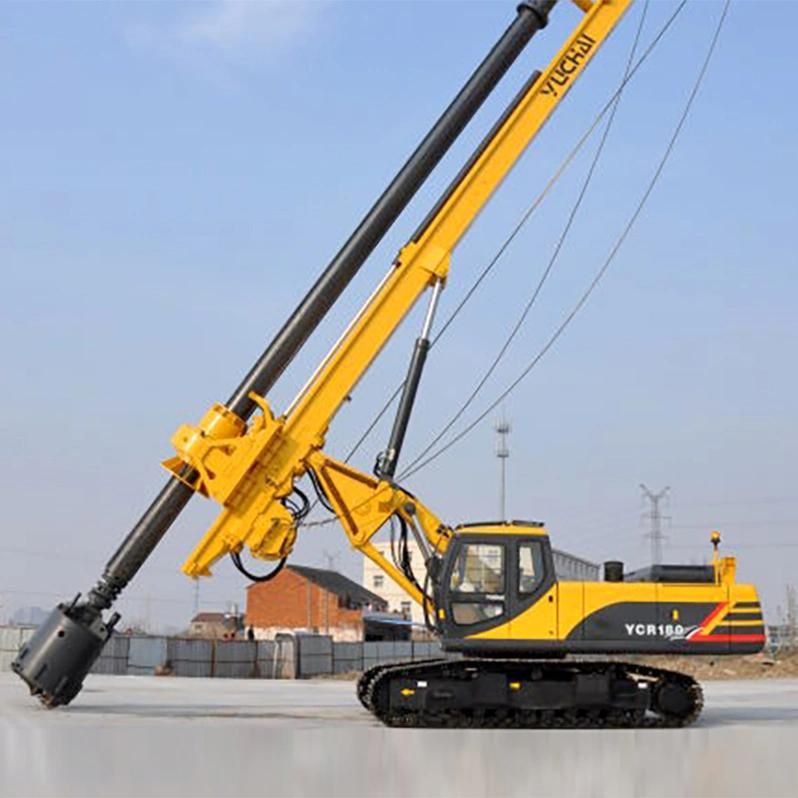

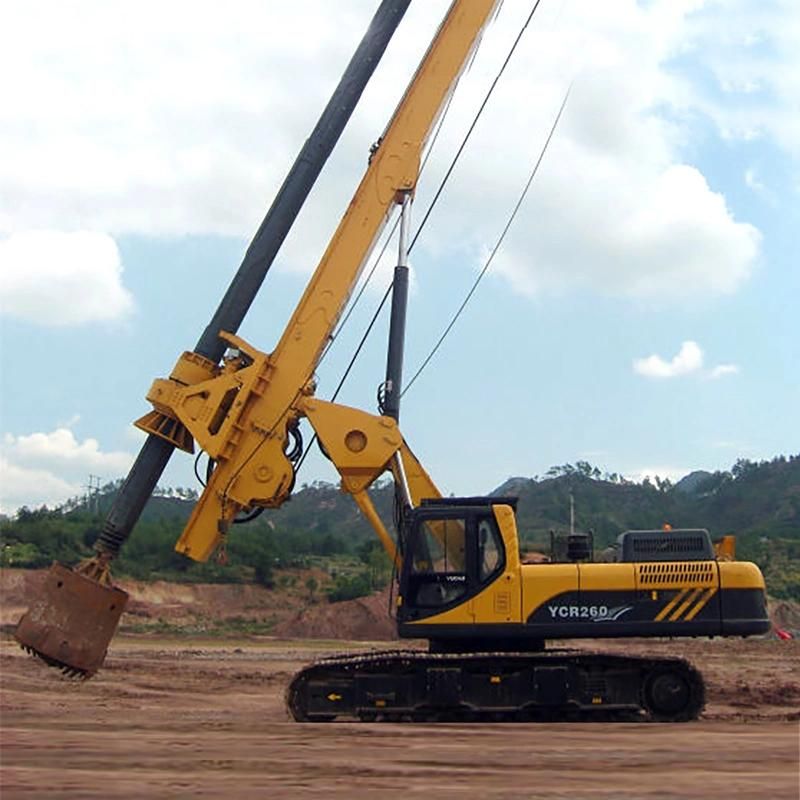

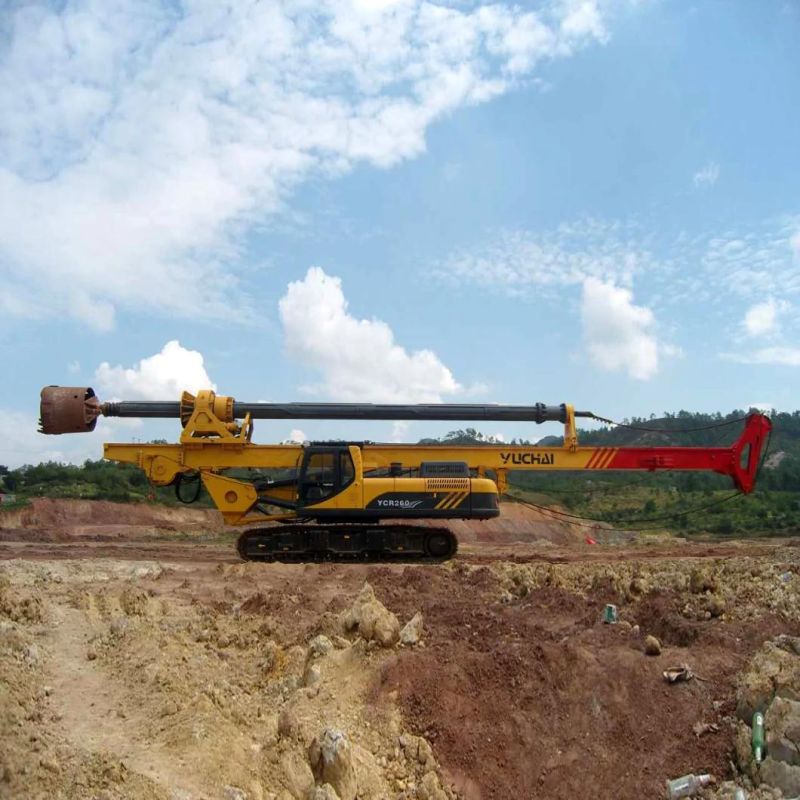

Yuchai Brand Reverse Rotary Drilling Rig Ycr220
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：>300mm
- Drill Hole Depth：<100m
- Bit Type：Cone Bit
Base Info
- Model NO.：YCR220
- Drilling Way：Rotary
- Rated Power：86kw,2200rpm
- Overall Height：11220mm
- Max Pile Depth：23m
- Stroke：1500mm
- Max. Output Torque：50kn.M
- Transport Package：Nude
- Specification：11100*2600*3480
- Trademark：YUCHAI
- Origin：China
- HS Code：8430691100
- Production Capacity：50000
Description
Project
Parameters
Chassis
Engine Type
QSM11-C330
Engine Power/Speed
246/2100
Crawler Expansion Width (From The Outside)
4400
Crawler Board Width
700
Traction Force
400
Power Head
Maximum Output Torque
220
Power Head Speed
6-26
Max.Pull-Down Piston Push
180
Max.Pull-Down Piston Pull
200
Pressure Oil Cylinder Stroke
5000
Winch
Main Winch
Max.Line Pull of the first layer
240
Max.Line Speed
56
Wire Rope Diameter
Φ28
Auxiliary Winch
Max.Line Pull of the first layer
80
Max.Line Speed
65
Wire Rope Diameter
Φ20
Mast
Mast Forward Inclination
5
Mast Sideward Inclination
±6
Hydraulic Pump
Maximum Working Pressure
35
Depth and Diameter
Maximum Drilling Diameter
2000
Maximum Drilling Depth
70
Drilling Pipe
Drilling Pipe
Φ440
