Drilling Rig

Home > Product > Water Well Drilling Rig

Factory Super Rock Crawler Deep Well Air Compressor Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Support
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：200-250mm

Base Info

  • Model NO.：HQZ220L
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Type：Crawler
  • Name：Drilling Rig
  • Drilling Depth：220m
  • Drilling Diameter：245mm
  • Color：Customized
  • Engine Power：60kw
  • Transport Package：Container
  • Specification：3400*1500*2400 mm
  • Trademark：HW
  • Origin：Shandong, China
  • HS Code：8430419000
  • Production Capacity：2000

Description

ApplicationFactory Super Rock Crawler Deep Well Air Compressor Drilling RigFactory Super Rock Crawler Deep Well Air Compressor Drilling Rig
Specification

Model

HQZ220L

Overall weight (T )

4.2

Dimension (mm )

3800*1700*2350

Drilling diameter (mm )

130-294

Drilling depth (m )

220

One-time advance length of the drill(mm)

3000

Traveling speed (km/h )

2.5

Climbing ability (max )

30

Minimum Ground Clearance (mm)

250

Working Air Pressure (mpa )

1.7-2.5

Air consumption (m³/min)

15-27

Main machine power (kw)

Yunnei 60Kw

Rotary Speed (rpm)

48 - 70

Rotary torque (Nm )

4200-5600

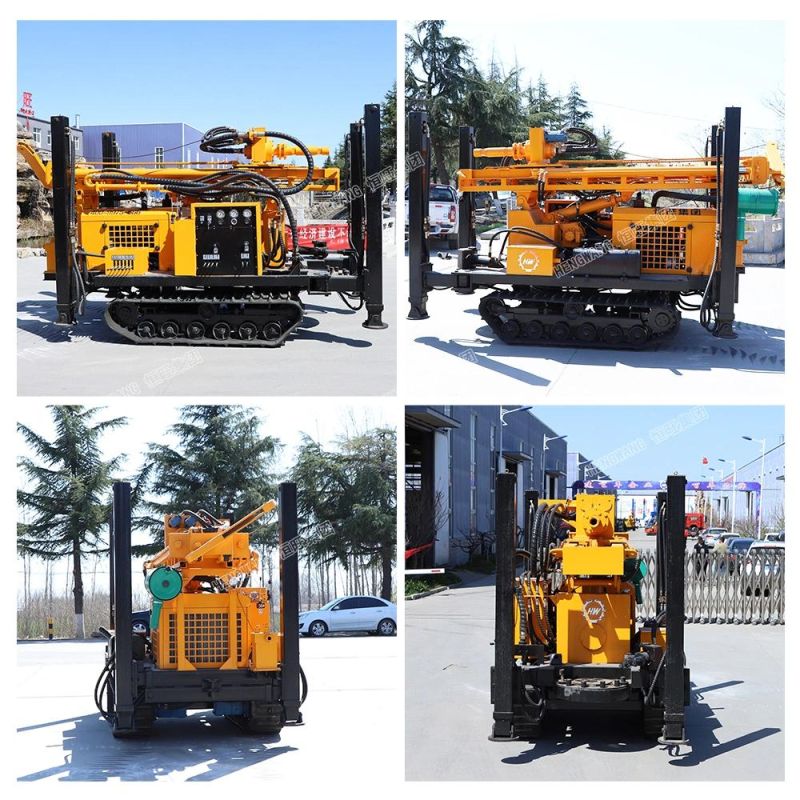

Products DetailsFactory Super Rock Crawler Deep Well Air Compressor Drilling RigFactory Super Rock Crawler Deep Well Air Compressor Drilling Rig
Packing and deliveryFactory Super Rock Crawler Deep Well Air Compressor Drilling Rig



Our factory

Factory Super Rock Crawler Deep Well Air Compressor Drilling Rig
