• Model NO.：HWQ150
• Drilling Way：Impactor
• Type：Three Wheel Type
• Use：Water Well Drill
• Total Weight：2800 Kg
• Drilling Diameter：90---203mm
• Drilling Depth：0-150m
• Speed of Rotary：0---90r,Min
• Torque of Rotary：2000n.M
• Once Promotion Distance：2000(mm)
• Working Pressure：1.2---2.46(MPa)
• Air Consumption：16---25m³,Min
• Hoist Power：45kw
• Transport Package：Satandard Package
• Specification：150m depth
• Trademark：HW
• Origin：Shandong
• HS Code：8430411900
• Production Capacity：1000sets,Year

Total Weight2800 kgDrilling diameter90---203mmDimension(L * W * H)4400*2100*2300mmDrilling depth0-150mSpeed of Rotary0---90r/min Torque of Rotary2000N.m Once promotion distance2000(mm)Working pressure1.2---2.46(Mpa)Air consumption16---25m³/minHoist Power45KwRotate speed of diesel engine2400r/minFor rock6----20fImpact frequency0-900r/minNote: The Company's products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation

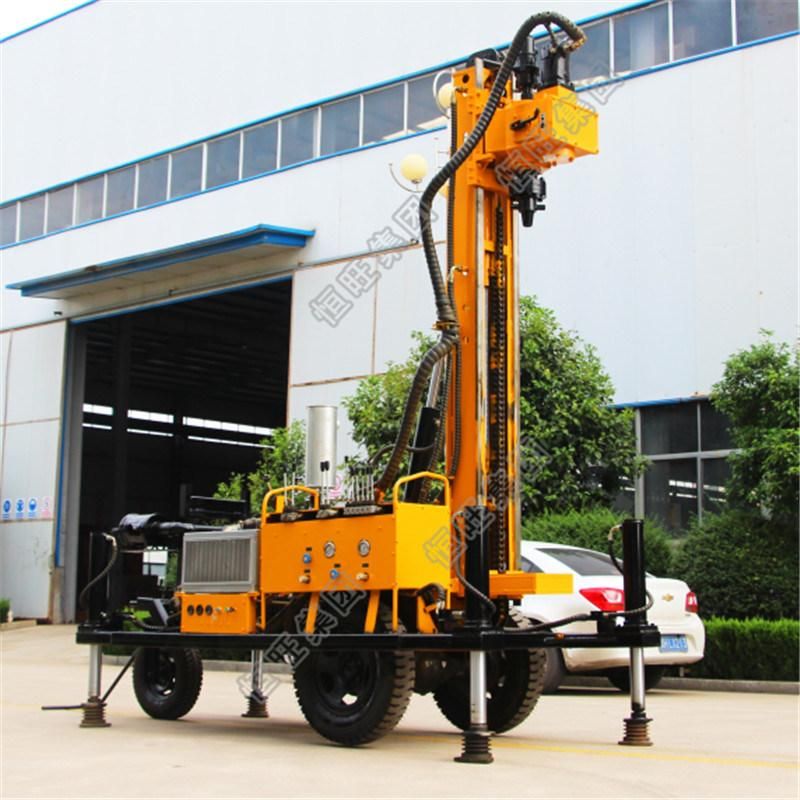

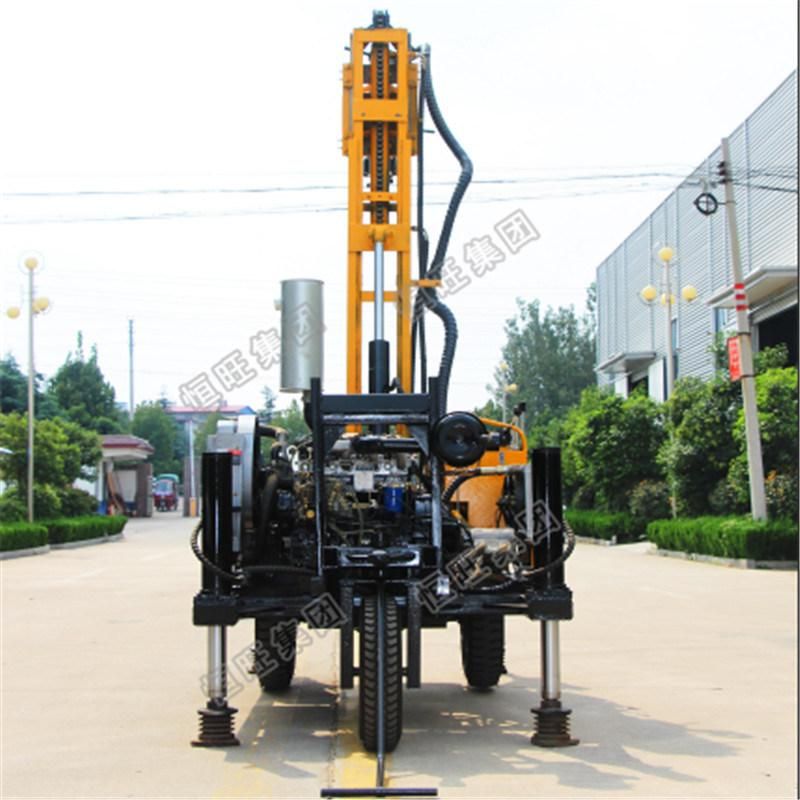

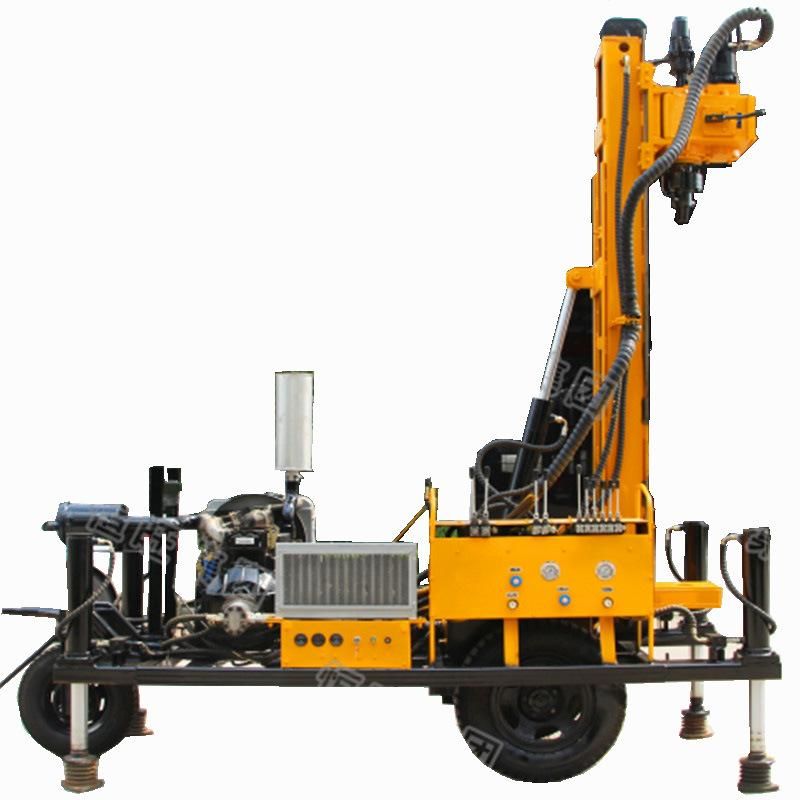

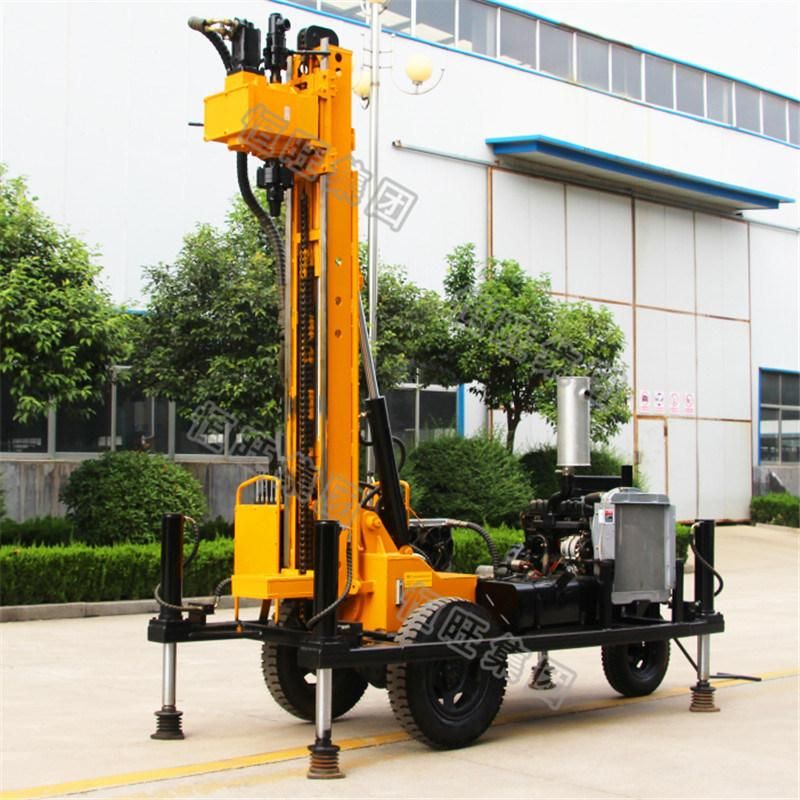

Product Real Photos

             Water Well Drilling Rig with Mud Pump & Air Compressor

                       Water Well Drilling Rig with Mud Pump & Air Compressor

                                    Water Well Drilling Rig with Mud Pump & Air Compressor

                   Water Well Drilling Rig with Mud Pump & Air Compressor
