High Quality Pneumatic Deep Water Well Air Compressor Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Support
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：200-250mm

Base Info

  • Model NO.：HQZ220L
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Type：Crawler
  • Name：Drilling Rig
  • Drilling Depth：220m
  • Drilling Diameter：245mm
  • Color：Customized
  • Transport Package：Wooden Case
  • Specification：3400*1500*2400 mm
  • Trademark：HW
  • Origin：Shandong, China
  • HS Code：8430419000
  • Production Capacity：5000sets,Year

Description

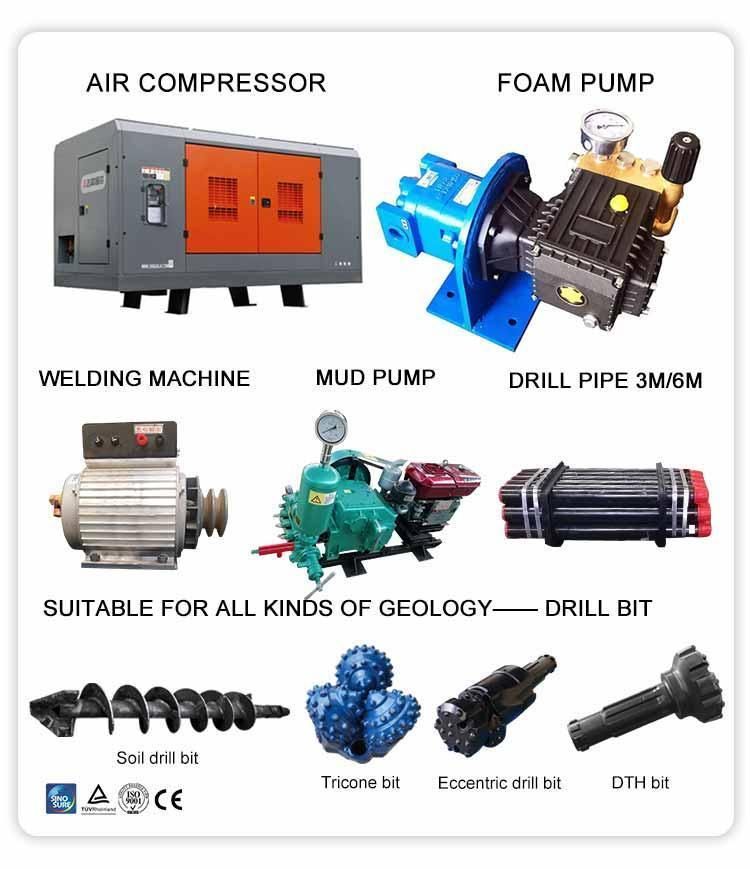

ApplicationHigh Quality Pneumatic Deep Water Well Air Compressor Drilling RigHigh Quality Pneumatic Deep Water Well Air Compressor Drilling Rig
Specification

Model

HQZ220L

Overall weight (T )

4.2

Dimension (mm )

3800*1700*2350

Drilling diameter (mm )

130-294

Drilling depth (m )

220

One-time advance length of the drill(mm)

3000

Traveling speed (km/h )

2.5

Climbing ability (max )

30

Minimum Ground Clearance (mm)

250

Working Air Pressure (mpa )

1.7-2.5

Air consumption (m³/min)

15-27

Main machine power (kw)

Yunnei 60Kw

Rotary Speed (rpm)

48 - 70

Rotary torque (Nm )

4200-5600

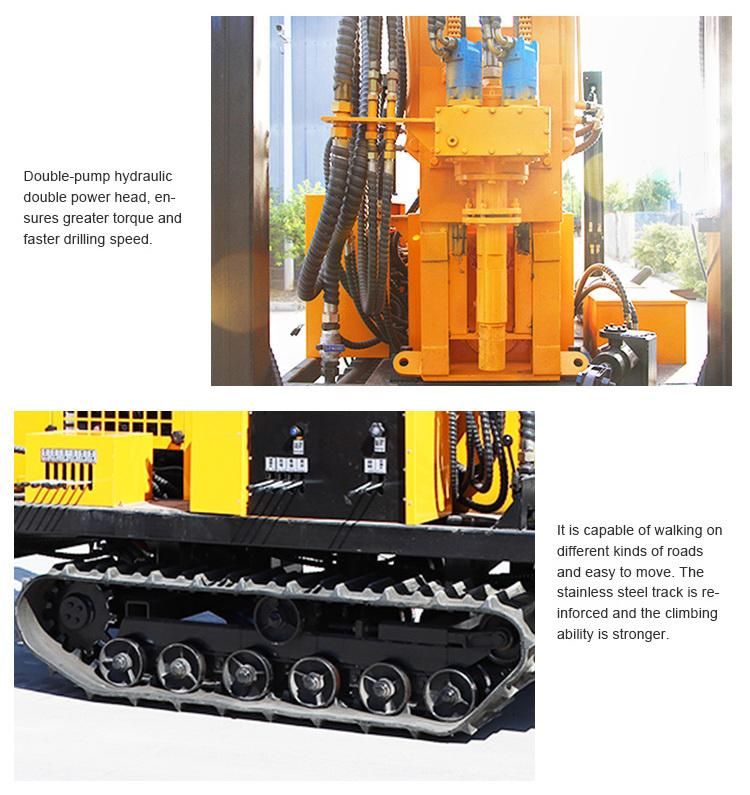

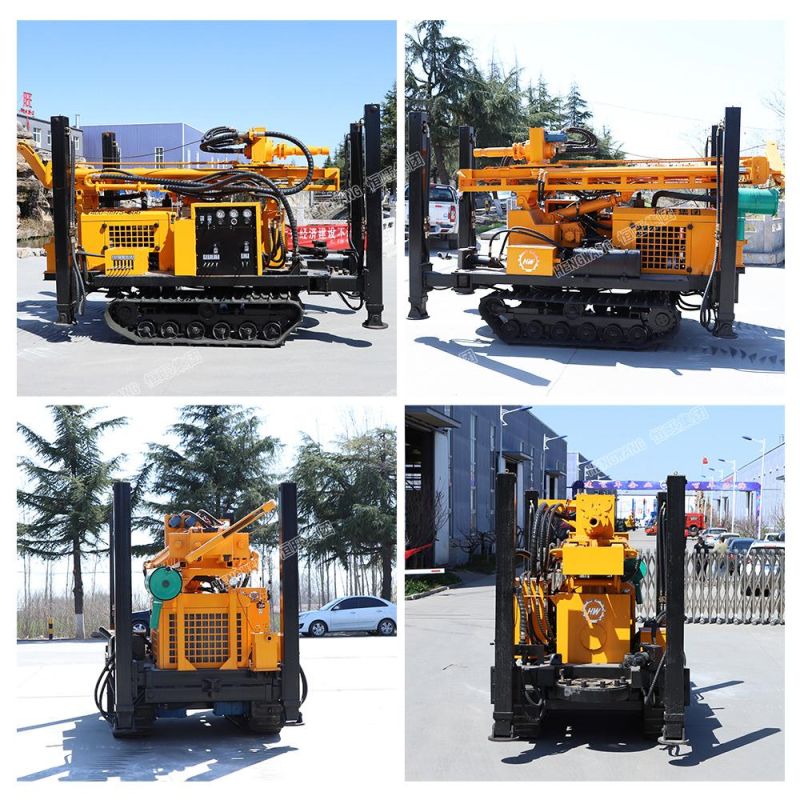

Products DetailsHigh Quality Pneumatic Deep Water Well Air Compressor Drilling RigHigh Quality Pneumatic Deep Water Well Air Compressor Drilling Rig

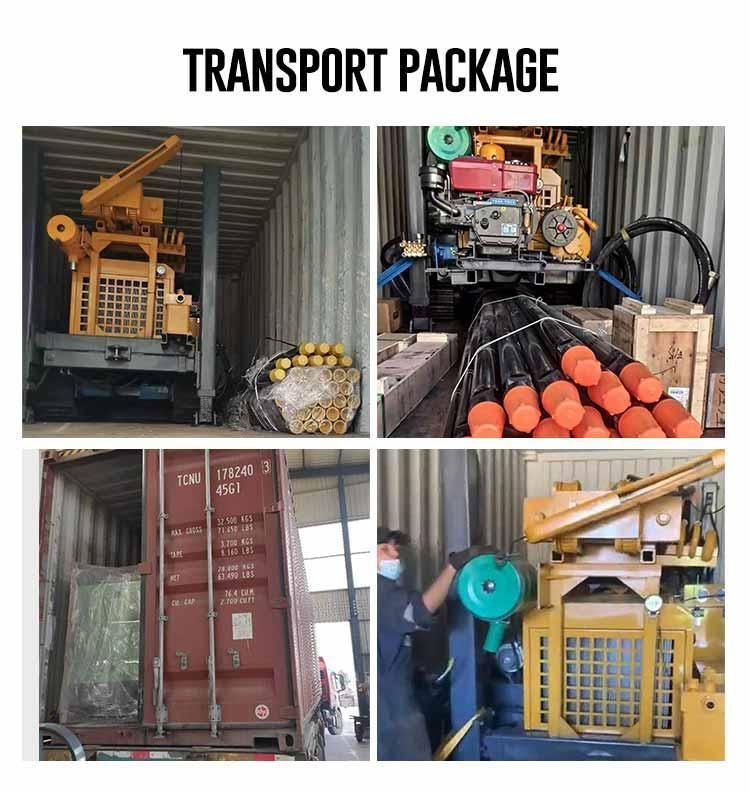

Packing and deliveryHigh Quality Pneumatic Deep Water Well Air Compressor Drilling Rig



Our factory

High Quality Pneumatic Deep Water Well Air Compressor Drilling Rig
