Borehole Machine Soil Investigation Portable Core Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Certification：ISO 9001:2000
  • Condition：New
  • Motor：Diesel
  • Drill Hole Diameter：150-200mm
  • Drill Hole Depth：100-150m
  • Bit Type：Cone Bit

Base Info

  • Model NO.：HW-160
  • Drilling Way：Rotary
  • Use：Water Well Drill
  • Drilling Depth：10-160m
  • Maximum Open Hole Caliber：260mm
  • End Hole Caliber：75mm
  • Drill Rod Caliber：50mm
  • Drilling Angle：90~75
  • Drill Weight (No Include Power)：510 560K
  • Spindle Speed：142,285,570r,Min
  • Spindle Stroke：450mm
  • Mud Pump：Horizontal Single Urn Twin-Action
  • Transport Package：Wooden Case
  • Specification：160m depth
  • Trademark：HW
  • Origin：Shandong
  • HS Code：8430411900
  • Production Capacity：5000sets,Year

Description

Mud pump of HZ-130YY model drilling rigTypeHorizontal single urn twin-actionDisplacement95/77L/minDiesle engines1115 or 22HPElectric motorY160M-4 11kw 1440r/minMaximum pressure1.2MpaWork pressure0.7MpaWater inlet caliber30mmWater to exit caliber25mmTriangle conveyer beltB1575mmDetailed Images

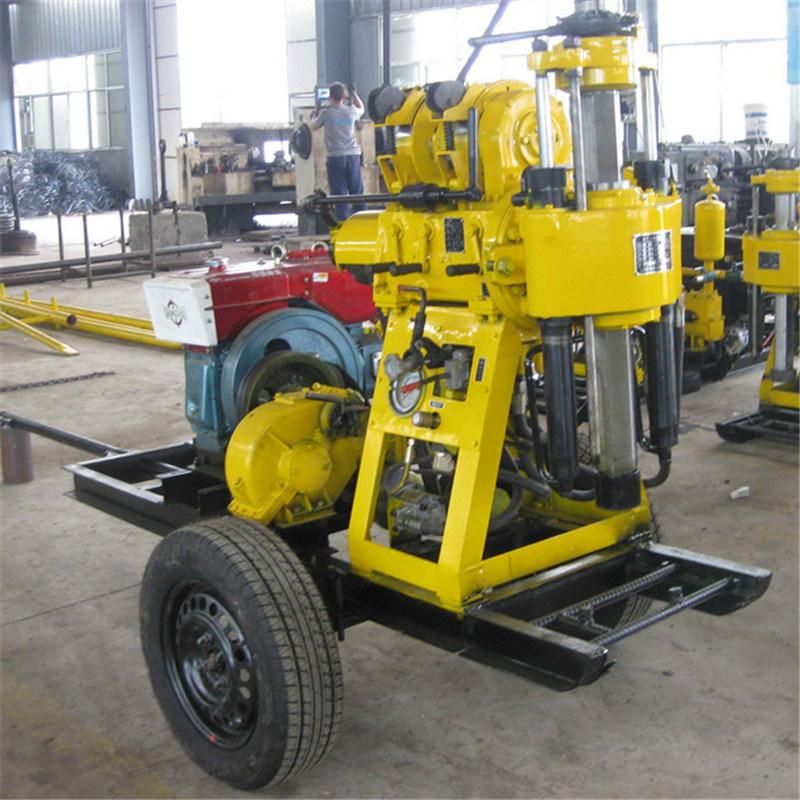

Borehole Machine Soil Investigation Portable Core Drilling Rig

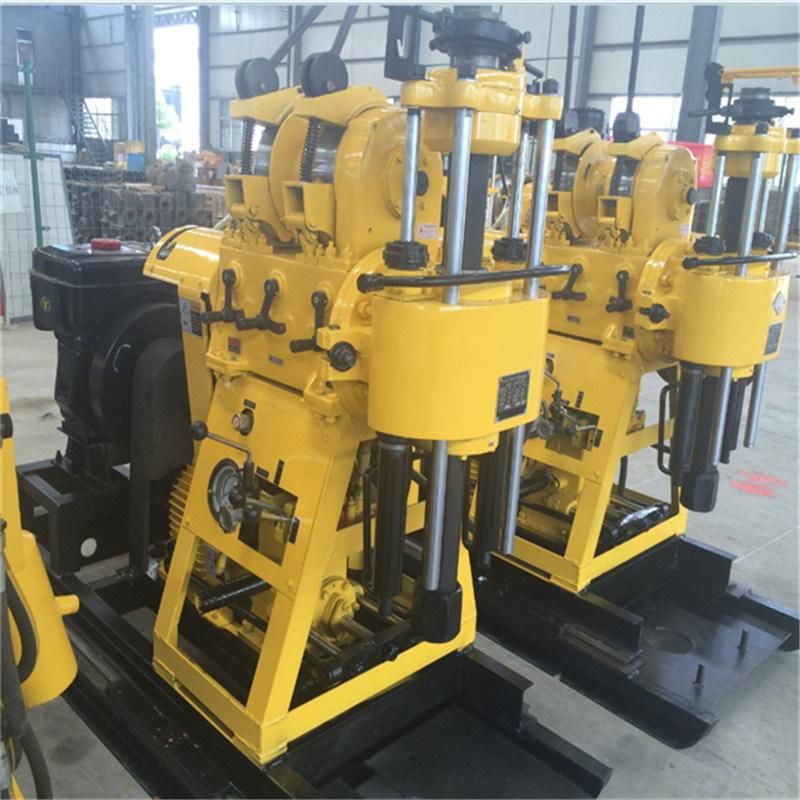

Borehole Machine Soil Investigation Portable Core Drilling Rig

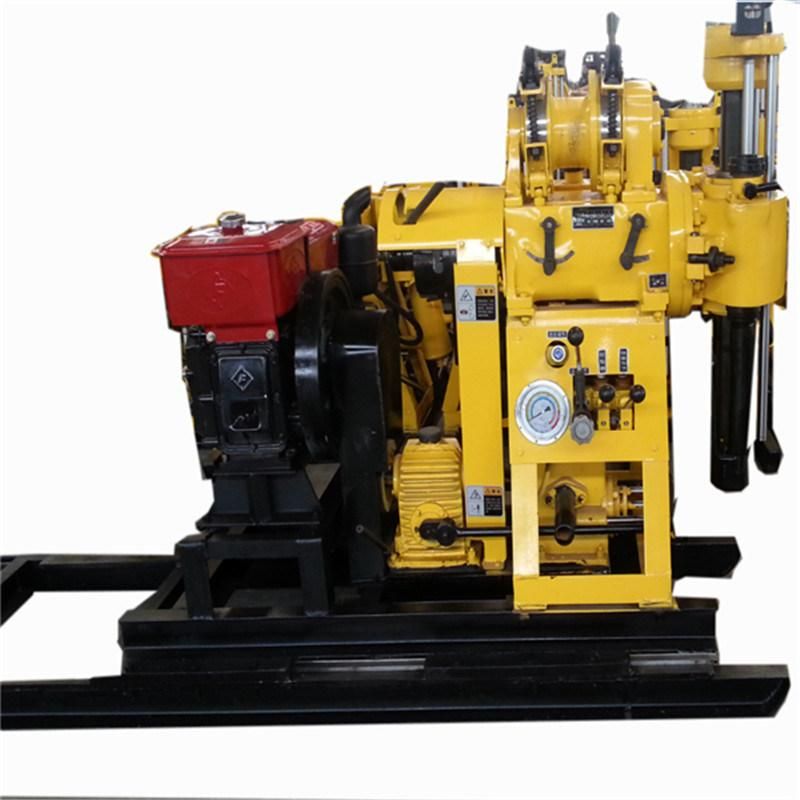

Borehole Machine Soil Investigation Portable Core Drilling Rig

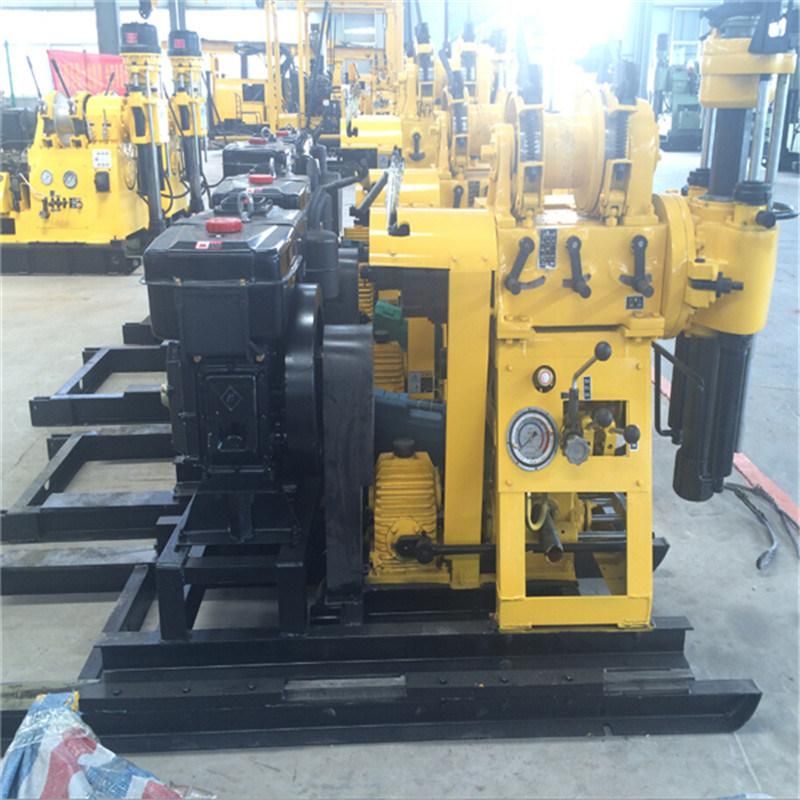

Borehole Machine Soil Investigation Portable Core Drilling Rig

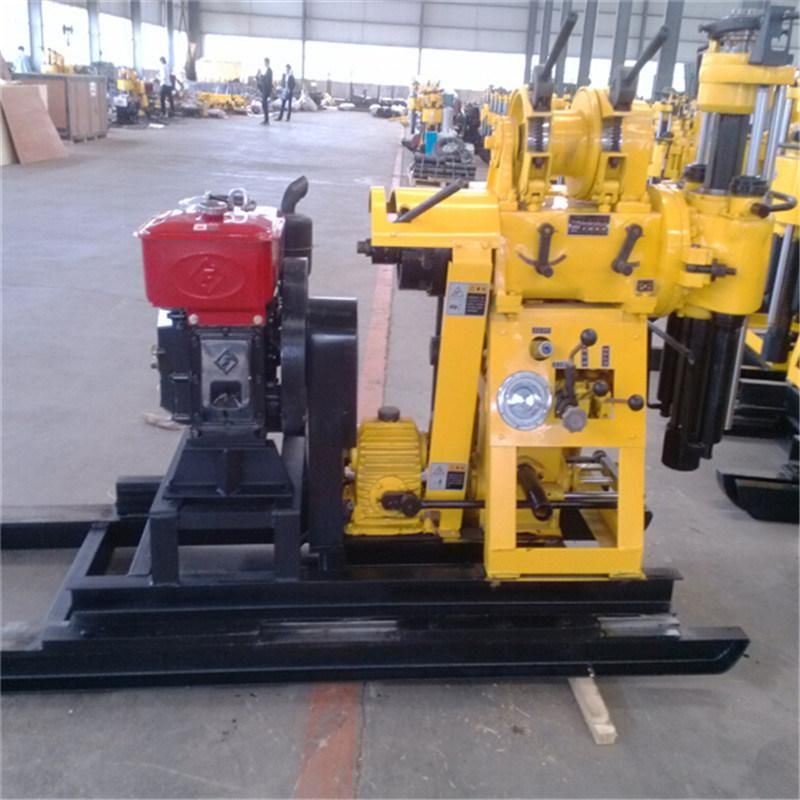

Borehole Machine Soil Investigation Portable Core Drilling Rig
