• Model NO.：HWED50
• Drill Hole Depth：<30m
• Bit Type：Cone Bit
• Drilling Way：Rotary
• Name：Soil Core Drilling Rig
• Drilling Form：Direct Push
• Casing Diameter (mm)：52,63,76,95
• Sampling Diameter (mm)：38,52,65,70
• Drilling Diameter (mm)：38-180
• DTH Depth (M)：0-200
• Engine(Kw R/Min)：Joint Venture Brand 40kw,3000
• Transport Package：Wooden Box
• Specification：2600*950*1700mm
• Trademark：HW
• Origin：China
• HS Code：8430419000
• Production Capacity：500 Set,Sets Per Month New Mini Road Roller Compac

Model

HWED50

Core depth(m)

0-50

Drilling form

Direct push

Casing diameter (mm)

52/63/76/95

Sampling diameter (mm)

38/52/65/70

DTH depth (m)

0-200

Drilling diameter (mm)

38-180

Effective stroke (mm)

1650

Engine(kw r/min)

Joint venture brand 40KW/3000

Hydraulic pump

Imported plunger pump

Multi-way valve

imported

Whole machine oil pipe

Horse Brand (Germany)

Maximum lifting force(t)

10

Drilling force(t)

0-6.5

Direct frequency(bmp)

600-2000

Walking motor

import

Transport size(mm)

2600*950*1700

Maximum working size(mm)

2550*950*4220

Total Weight(T)

1.8

Walking speed(kmZh)

0-5 (high and low speed)

Maximum climbing angle(°)

35

Remote control

Optional function

Usage:

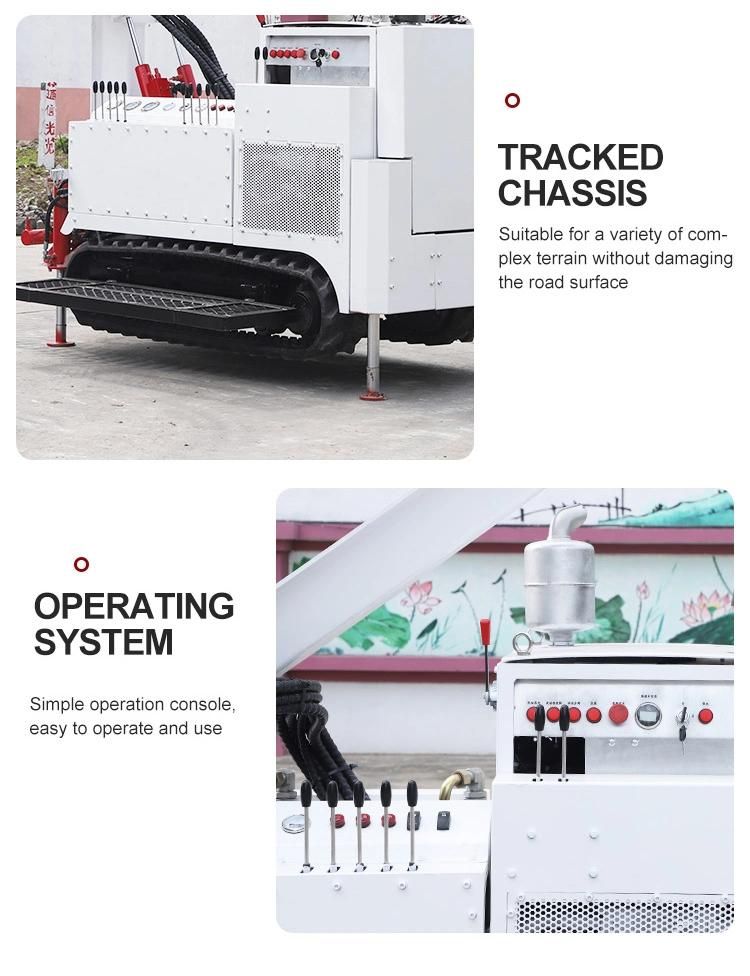

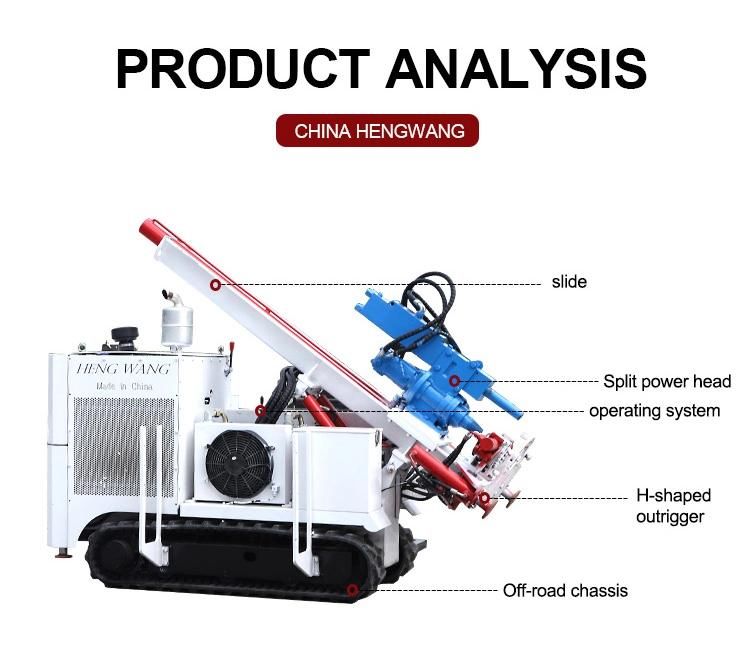

Details:

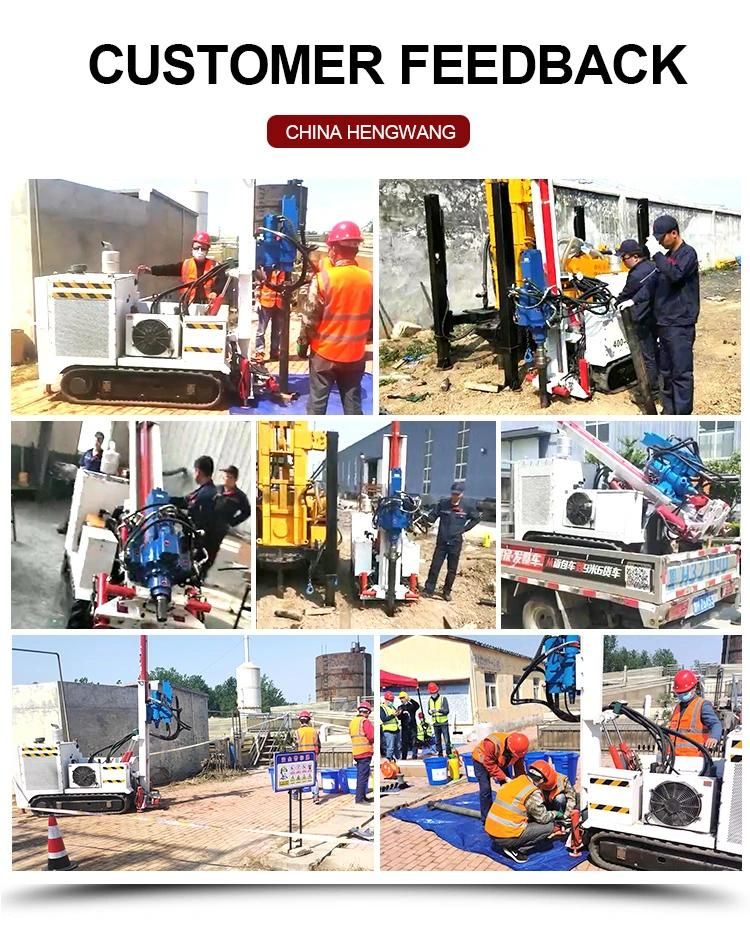

Customer feedback:


Welcome your enquiry: Hengwang drilling rig
