• Model NO.：BL series
• Size：4m Length and 5m Height
• Brand：Bestlink
• Aplication：Drill Hole for Passage of Diamond Wire,Blast Hole
• Special Design：Special Design Are Available Based on Needs
• Color：Normall Blue, Also Can Be Special Made.
• Material：Hard Steel for The Control Stand,and Good Driller
• Compressor Air Required：0.4-0.7mpa
• Air Motor：2.0bcbm,Min
• Key Word：Horizontal Drill Rigs,Mobile Rock Drill,
• Transport Package：Plywood Packing
• Specification：CE, ISO2000, SGS
• Trademark：BESTLINK
• Origin：Xiamen Fujian
• HS Code：84305039
• Production Capacity：100sets

Basic Info.

Model NO. BL series Size 4m Length and 5m Height Brand Bestlink Aplication Drill Hole for Passage of Diamond Wire,Blast Hole Special Design Special Design Are Available Based on Needs Color Normall Blue, Also Can Be Special Made. Material Hard Steel for The Control Stand,and Good Driller Compressor Air Required 0.4-0.7mpa Air Motor 2.0bcbm/Min Key Word Horizontal Drill Rigs,Mobile Rock Drill, Transport Package Plywood Packing Specification CE, ISO2000, SGS Trademark BESTLINK Origin Xiamen Fujian HS Code 84305039 Production Capacity 100sets

Product Description

Minging&Quarrying Drill Rigs for Hard Rock

Products feature:

Mobile line drilling machine is ideal for quarrying, rock explosion, especially making large diameter holes. (90mm/3.5 inch). It is mainly used for making holes for the passage of diamond wire. And also good for normal line hole drilling, such as holes for expansive mortar.
Practicality in use,

Structure:

derived from its simple construction, and the lightness of the structure are its main characteristics. Two control ways to choose, one is feeding by pneumatic motor, cross moving by handwheel.
The other one is both feeding and cross moving by pneumatic motor.
The drill is equipped with a pneumatic rotation head which combined with the hole hammer permits drilling linearity to be maintained, reaching considerable depths at high penetration speeds.
The support column has a special fixing system with a spherical joint and an anchoring down jack which permits drilling in all directions.
Other construction characteristics permit the drill height from the ground to be kept to a minimum, in the case of horizontal drill.

Why Choose Us?

Xiamen Bestlink Factory Co., Ltd since 1985 is committed to providing the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. It is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones.

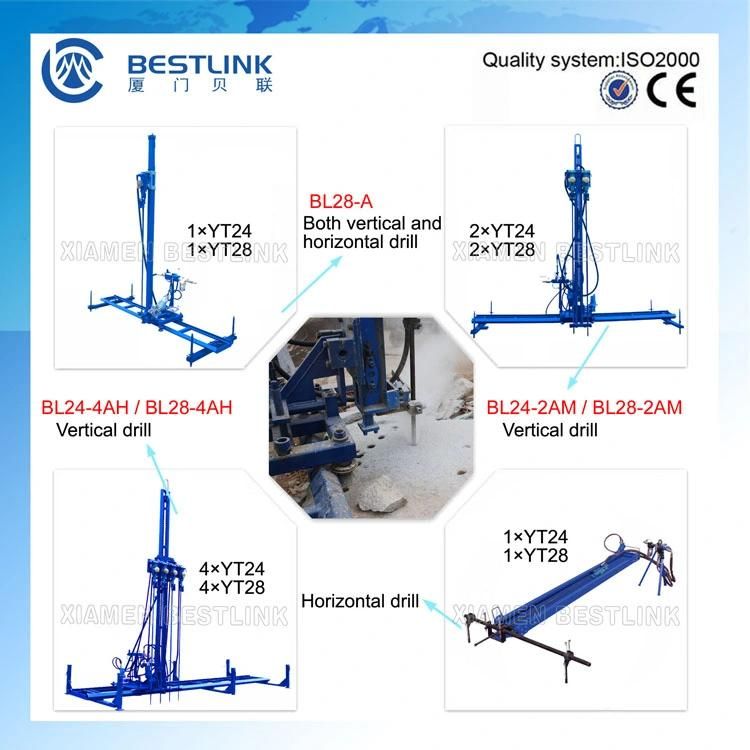

Model no.	Drilling direction	Feeding system & cross moving device	Jackhammer	Positional device
BL28-AHM	horizontal drilling	feeding by pneumatic motor	1*YT28	anchor-wedge
BL28-AV	vertical drilling	feeding by pneumatic motor,cross moving by handwheel	1*YT28	anchor-wedge and adjustable screw rod
BL24-2AM	vertical drilling	feeding by pneumatic motor,cross moving by handwheel	2*YT24	anchor-wedge and adjustable screw rod
BL28-2AM	vertical drilling	feeding by pneumatic motor,cross moving by handwheel	2*YT28	anchor-wedge and adjustable screw rod
BL24-2AM	vertical drilling	feeding and cross moving by pneumatic motor	2*YT24	anchor-wedge and adjustable screw rod
BL28-2AM	vertical drilling	feeding and cross moving by pneumatic motor	2*YT28	anchor-wedge and adjustable screw rod
BL24-4AH	vertical drilling	feeding and cross moving by pneumatic motor	4*YT24	anchor-wedge and fast positional leg
BL28-4AH	vertical drilling	feeding and cross moving by pneumatic motor	4*YT28	anchor-wedge and fast positional leg
