Hydraulic Drilling Jumbo Face Tunnel Drilling Rig for Sale

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
  • After-sales Service：Online Support,Field Maintenance
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Depth：5,268mm,5,843mm,6,140mm

Base Info

  • Model NO.：HFG-33J
  • Drilling Way：Rotary
  • Rated Diesel Engine Power：Cummins173 Kw
  • Work Coverage：168 M2
  • Electric Motor：200 Kw
  • Voltage：380 V
  • Frequency：50-60Hz
  • Max. System Pressure：210 Bar
  • Hydraulic Oil Tank Capacity：755 , 470 L( Max. , Min. )
  • Max. F.a.D ( at 7 Bar )：15.7 L , S
  • Rotation Speed：0 - 388 Rpm
  • Rotation Torque ( Max. )：752 Nm
  • Transport Package：Machine in Nude Package,Spare Parts in Wooden Case
  • Specification：2926*3089*3789mm
  • Trademark：HF
  • Origin：Zhengzhou City, China
  • HS Code：8430490000
  • Production Capacity：10sets,Month

Description

                190

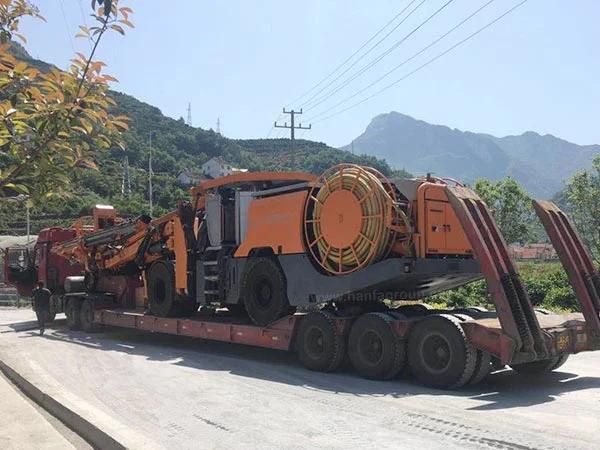

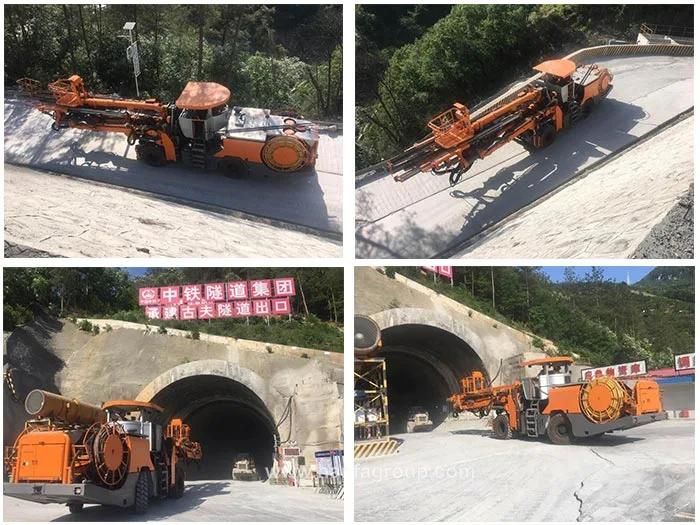

Working and delivery

Hydraulic Drilling Jumbo Face Tunnel Drilling Rig for Sale
Hydraulic Drilling Jumbo Face Tunnel Drilling Rig for Sale

Hydraulic Drilling Jumbo Face Tunnel Drilling Rig for Sale
