Drilling Rig

Home > Product > Water Well Drilling Rig

Portable Water Well Hydraulic Core Drilling Rig for Sale

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Online Support, Video Technical Support
  • Warranty：1 Year
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：75-300mm

Base Info

  • Model NO.：HW230C
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Type：Trailer Type
  • Name：Portable Water Well Hydraulic Core Drilling Rig
  • Usage：Water Well
  • Power Type：Diesel
  • Drill Rod Diameter：40 50mm
  • Spindle Speed：142 R,Min
  • Working Pressure：12MPa
  • Inlet Hose Diameter：51mm
  • Outlet Hose Diameter：32mm
  • Drilling Angle：90-75degree
  • Spindle Stroke：450mm
  • Transport Package：Wooden Box
  • Specification：2.7*0.9*1.5m
  • Trademark：HW
  • Origin：China
  • HS Code：8462919000
  • Production Capacity：500 Set,Sets Per Month Water Well Drilling Rig

Description

121
   Main features

1, Truck-mounted drilling rigs are hydraulic spindle rotary drilling rig.

2, HW-230C uses Tangjun Jinlika chassis, XY-3C uses Qingdao Sailong medium truck chassis, drilling rig and mud pump are installed on the chassis, Reasonable and compact layout, easy to operate

3, Configuring BW-160 or BW-250 mud pump, high pressure, big flow, it ensures drill depth and diameter.

4,Drilling rig self-equipped with mobile devices, drilling rig can be achieved move back and forth, and it is convenient for wellhead operation.

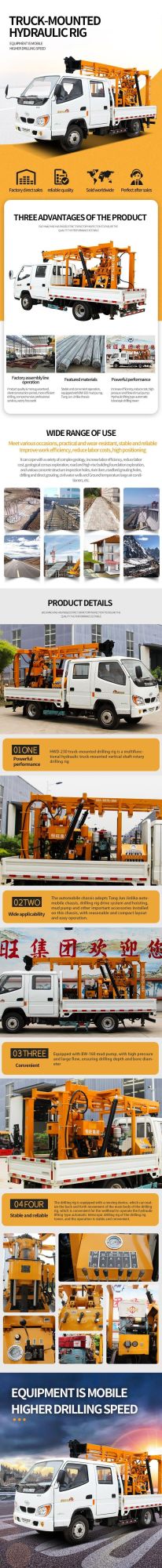

5,Drilling rig tower hydraulic up and down and automatic telescopic drilling tower, safe and convenient operation.  Drilling Rig Photos
Portable Water Well Hydraulic Core Drilling Rig for Sale
