Mini Tricycle Air and Mud Borehole Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Within a Year
  • Warranty：Within a Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel
  • Drill Hole Diameter：200-250mm

Base Info

  • Model NO.：HWQ150
  • Drill Hole Depth：100-150m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Type：Three Wheel Type
  • Use：Water Well Drill
  • Total Weight：2800 Kg
  • Drilling Diameter：90---203mm
  • Drilling Depth：0-150m
  • Speed of Rotary：0---90r,Min
  • Torque of Rotary：2000n.M
  • Once Promotion Distance：2000(mm)
  • Working Pressure：1.2---2.46(MPa)
  • Air Consumption：16---25m³,Min
  • Hoist Power：45kw
  • Transport Package：Satandard Package
  • Specification：150m depth
  • Trademark：HW
  • Origin：Shandong
  • HS Code：8430411900
  • Production Capacity：1000sets,Year

Description

Total Weight2800 kgDrilling diameter90---203mmDimension(L * W * H)4400*2100*2300mmDrilling depth0-150mSpeed of Rotary0---90r/min Torque of Rotary2000N.m Once promotion distance2000(mm)Working pressure1.2---2.46(Mpa)Air consumption16---25m³/minHoist Power45KwRotate speed of diesel engine2400r/minFor rock6----20fImpact frequency0-900r/minNote: The Company's products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation

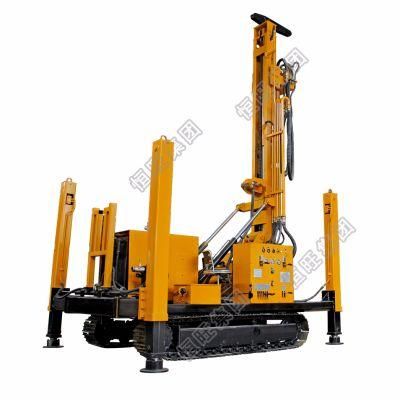

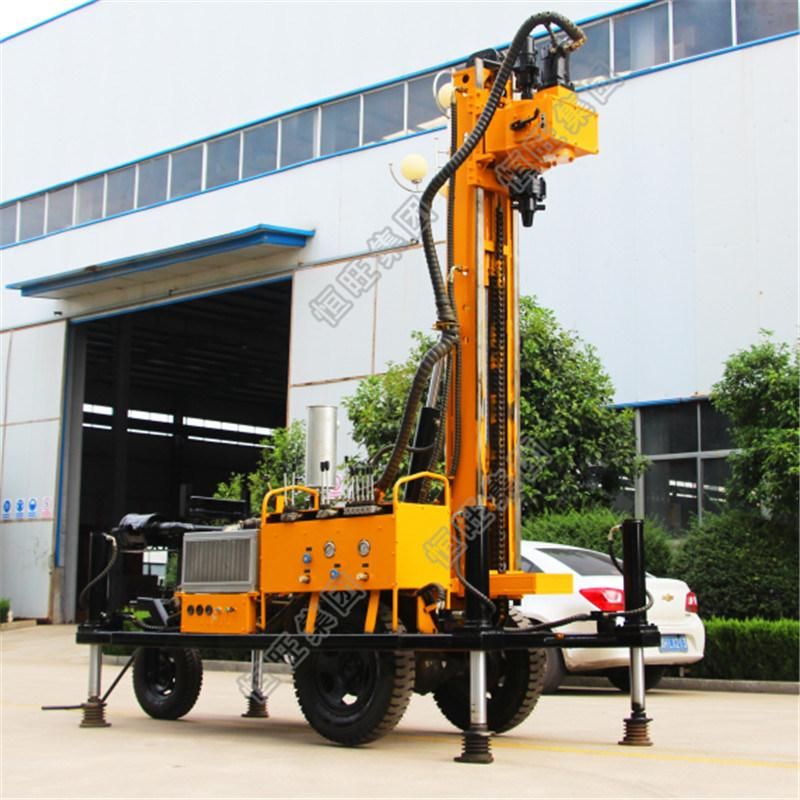

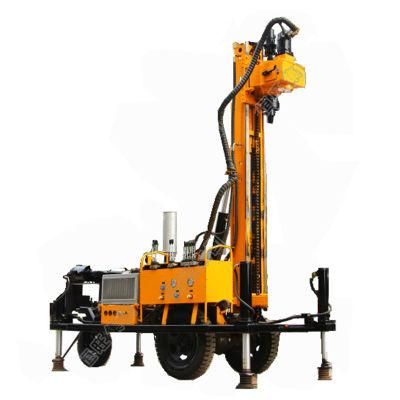

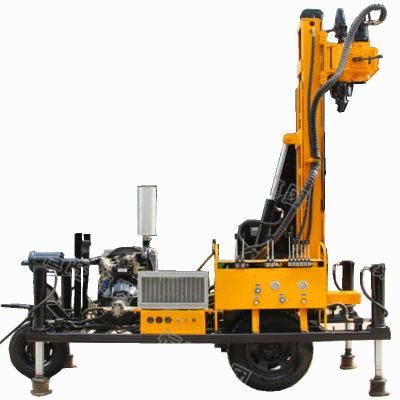

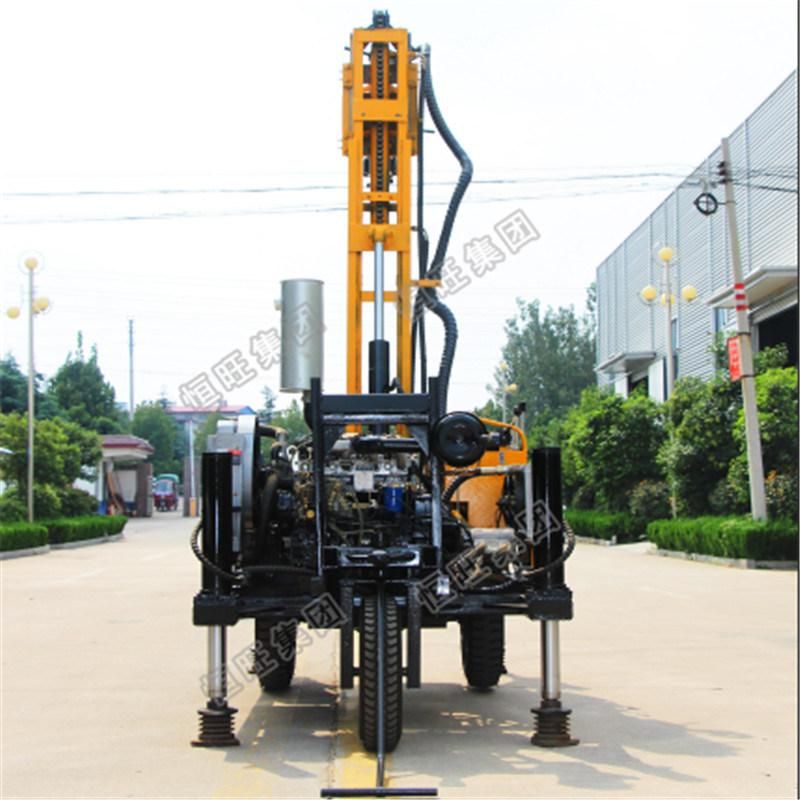

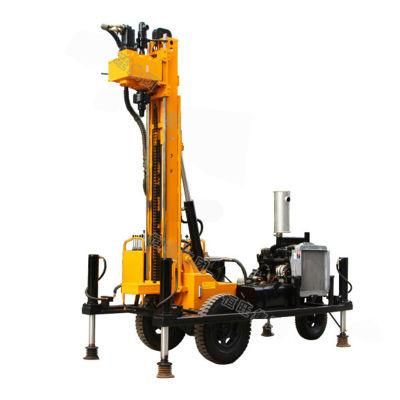

Product Real Photos
    Mini Tricycle Air and Mud Borehole Drilling Rig
           Mini tricycle Air and mud borehole drilling rig
Mini Tricycle Air and Mud Borehole Drilling Rig
                     Mini tricycle Air and mud borehole drilling rig
Mini Tricycle Air and Mud Borehole Drilling Rig
                           Mini tricycle Air and mud borehole drilling rig
Mini Tricycle Air and Mud Borehole Drilling Rig
               Mini tricycle Air and mud borehole drilling rig
