Small Folded Water Well Drilling Rig Bore Well Drilling Machine Price
Jining Bafang Mining Machinery Group Co., Ltd.- Certification:CE
- Condition:New
- Motor:AC Motor
- Drill Hole Diameter:100-300mm
- Drill Hole Depth:100-150m
- Bit Type:Diamond Bit
Base Info
- Drilling Way:Rotary
- Type:Gantry Type
- Transport Package:Wooden Case
- Specification:Size: 1510*624*515
- Trademark:Bafang
- Origin:China, Shandong
- Production Capacity:1000pieces,Year
Description
Basic Info.
Drilling Way Rotary Type Gantry Type Transport Package Wooden Case Specification Size: 1510*624*515 Trademark Bafang Origin China, Shandong Production Capacity 1000pieces/YearProduct Description

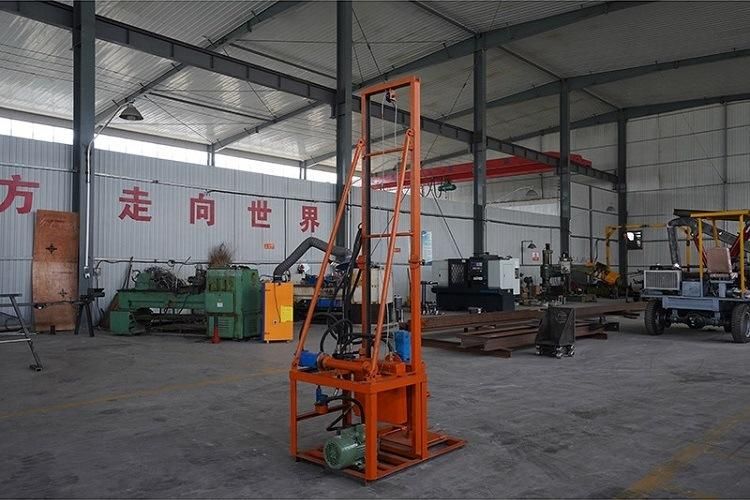

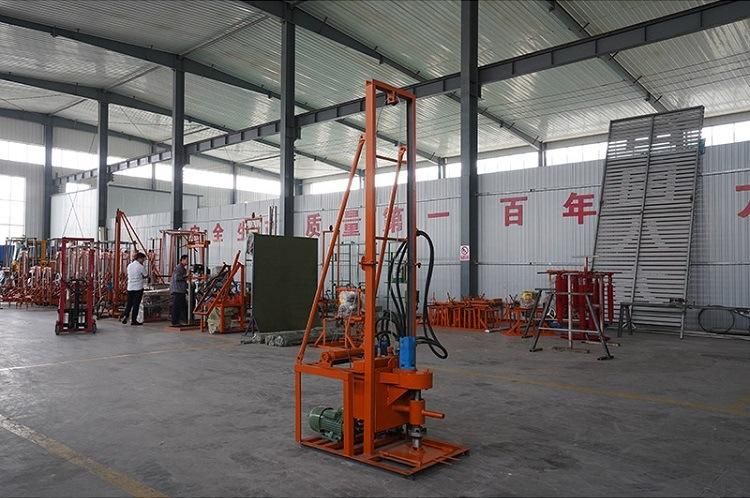

Small Folded Water Well Drilling Rig Bore Well Drilling Machine PriceFolding Hydraulic Drilling Machine is an efficient, portable, economical and practical new mechanized drilling machine produced by our factory. Its advantages are: large torque, small volume, portable, high efficiency, easy operation, low noise, and adaptability to various environmental topography. The machine is easy to use, simple to operate, fast to form holes. It can be operated by a single person at about 10 meters per hour. It can dump the drill pipe mechanically. Taking a well drilled at 100 meters as an example, the average time of drill pipe disassembly takes about 10 minutes. After completion of drilling operation, the machine can be moved by a single person.,,,,,,,,,.
Hydraulic oil pump, parallel transmission design, separate single oil pump, reasonable power distribution, unique design of hydraulic system, power head gearbox, dual motor power supply, large torque, durable, simple maintenance and low cost.
Parameter | Unit | BF-folding hydraulic drilling rig |
Power Source | Motor or Diesel Engine | |
Hydraulic oil | 46# | |
Hydraulic Motor | Kw | 110 |
Borehole diameter | mm | 32-220 |
Drill pipe diameter | 1 inch, 1.2 inch, 1.5 inch various specifications and lengths can be selected | |
Bit Specification | Multi-bore Alloy and Diamond Bit Selection | |
Drilling depth | M | 100 |
weight | Kg | 715 |
Suitable for soil | mud layer, quicksand layer, small amount of rock layer, pebble, etc. |
