• Model NO.：C400ZYII
• Drilling Way：Rotary
• Type：Rotary Drilling Rig
• Item：C400zyii
• Hole Diameter (mm)：500
• Hole Depth (M)：400
• Bearing Capacity of Mast (Kn)：270
• The Height of Mast (mm)：11500
• Single Rope Lifting Capacity of Main Win：45
• The Capacity of Main Windlass(Kn)：270
• Single Rope Lifting Capacity of Hydrauli：40
• The Capacity of Hydraulic Windlass(Kn)：160
• The Lifting Capacity of Hook(Kn)：270
• Usage：Water Well
• Power Type：Diesel
• Transport Package：Seaworthy Packing
• Specification：,
• Trademark：GLORYTEK
• Origin：Beijing, China

Basic Info.

Model NO. C400ZYII Drilling Way Rotary Type Rotary Drilling Rig Item C400zyii Hole Diameter (mm) 500 Hole Depth (M) 400 Bearing Capacity of Mast (Kn) 270 The Height of Mast (mm) 11500 Single Rope Lifting Capacity of Main Win 45 The Capacity of Main Windlass(Kn) 270 Single Rope Lifting Capacity of Hydrauli 40 The Capacity of Hydraulic Windlass(Kn) 160 The Lifting Capacity of Hook(Kn) 270 Usage Water Well Power Type Diesel Transport Package Seaworthy Packing Specification / Trademark GLORYTEK Origin Beijing, China

Product Description

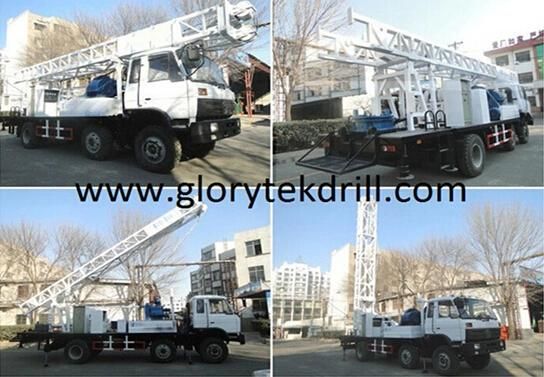

C400ZYII truck mounted drilling rig



Main features:

 C400CLCA truck mounted drilling rig is designed by our professional engineers with the world leading technology      concept; It is a kind of truck mounted and rotary drilling rig.

 The truck chassis adopts the 6X4 special crane chassis of brand SINOTRUK , the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are set up on the chassis.

This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2Amud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.

The power of drilling rig comes from the truck engine, the rig setups distribute implement and hydraulic system.

 We can upset the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.

We can set up a generator (15kw) , so that it is convenient to illuminate or work at night.

 The adding pressure device is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.

 The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.

The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.

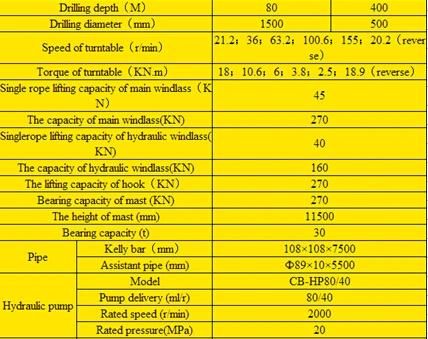

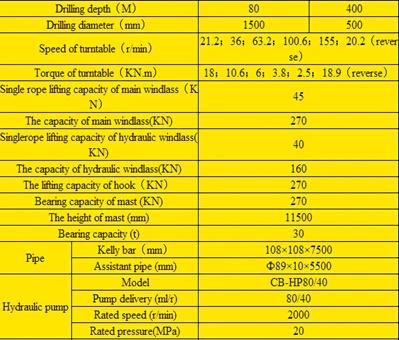

Technical Parameter
