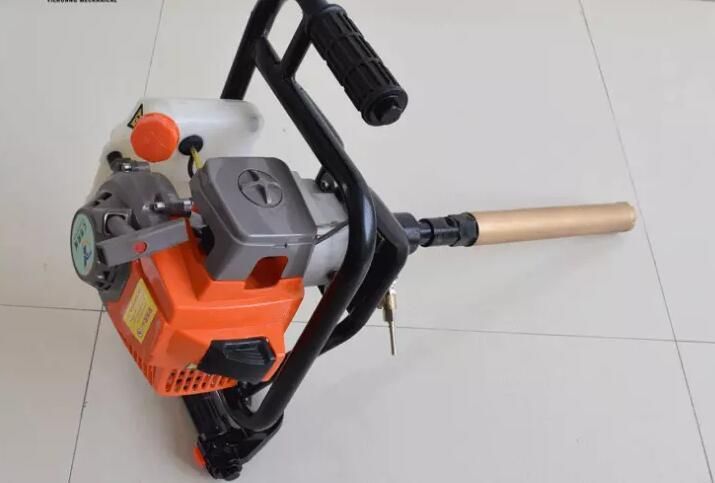

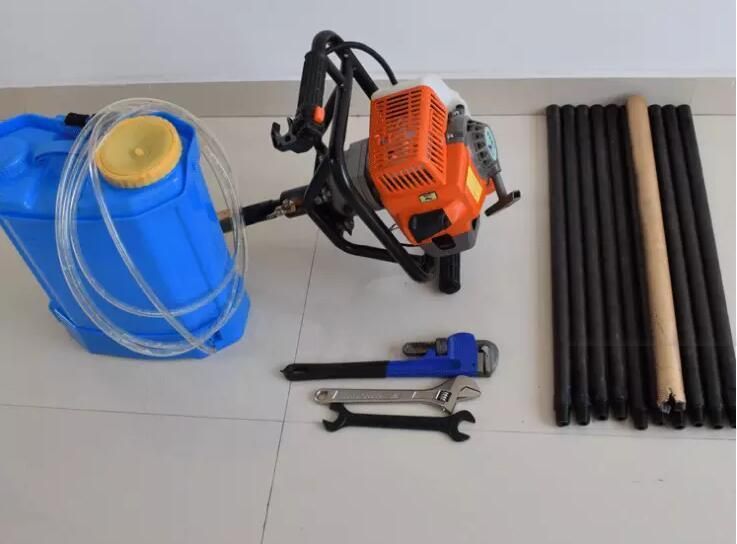

20m Depth Portable Drilling Rig, Backpack Portable Core Sampling Drill
Jining Bafang Mining Machinery Group Co., Ltd.- Certification：ISO 9001:2000
- Condition：New
- Drill Hole Diameter：<100mm
- Drill Hole Depth：10-30m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
Base Info
- Model NO.：CT-20B
- Type：Surface Drill
- Frame：Optional
- Transport Package：Wooden Case
- Specification：65kg
- Trademark：Bafang
- Origin：Jining, China
- Production Capacity：100sets,Month
Description
Overall Dimension
380*390*850mm
Water Consumption
18L/h
Water tank size & weight
43.3cm×18.8cm×18.8cm/ 7kg
Gasoline Consumption about
0.42L/h
Drilling speed
1900r/min
Engine type
Air-cooled 4-stroke petrol engine
Engine size & weight
30*28*33cm/ 7.2kg
Power
2.4KW
Max drilling depth
20m
Weight of Water injection pump
7kg
Rock core drilling diameter
32mm
Drilling hole diameter
40-108mm
