Zlj Series Coal Mine Geological Explosion Tunnel Drilling Rig for Sale
Jining Bafang Mining Machinery Group Co., Ltd.- Certification：CE
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：200-250mm
- Drill Hole Depth：100-150m
- Bit Type：Diamond Bit
Base Info
- Drilling Way：Rotary
- Rated Output Torque：350n.M
- Rated Pressure：8MPa
- Drilling Angle：0~360degree
- Drill Rod Caliber：42
- Power：5.5kw
- Dimensions：1265*650*1020
- Weight：480kg
- Specification：1265*650*1020mm
- Trademark：bafang
- Origin：Shandong, China (Mainland)
- Production Capacity：50,Month
Description
Item
Technical Parameter
ZLJ-250
ZLJ-350
ZLJ-650
Rated torque
High speed
250N.m
350
650
Medium speed
150N.m
250
380
Low speed
85N.m
100
214
Rated speed
High speed
340r/min
350
270
Medium speed
192r/min
170
151
Low speed
112r/min
99
88
Rated pressure
8Mpa
8
8
Max feed force
9KN
9
34
Max pulling and lining force
12kn
12
12
Drilling angle
0~360°
0~360°
0~360°
Capacity of drum
26.3m
26.3
40
Diameter of wire rope
8.8mm
8.8
11
Drill rod caliber
42mm
42
42
Supply water pressure
0.6~1.2Mpa
0.6~1.2
0.6~1.2
Power
4kw
5.5
7.5
Voltage
380/660v
380/660
380/660
Rated current
8.8/5.3A
9/13.0
15/10.0
Dimensions
1235×630×1165
1265×650×1020
1200x1290x700
Weight
440kg
480
630

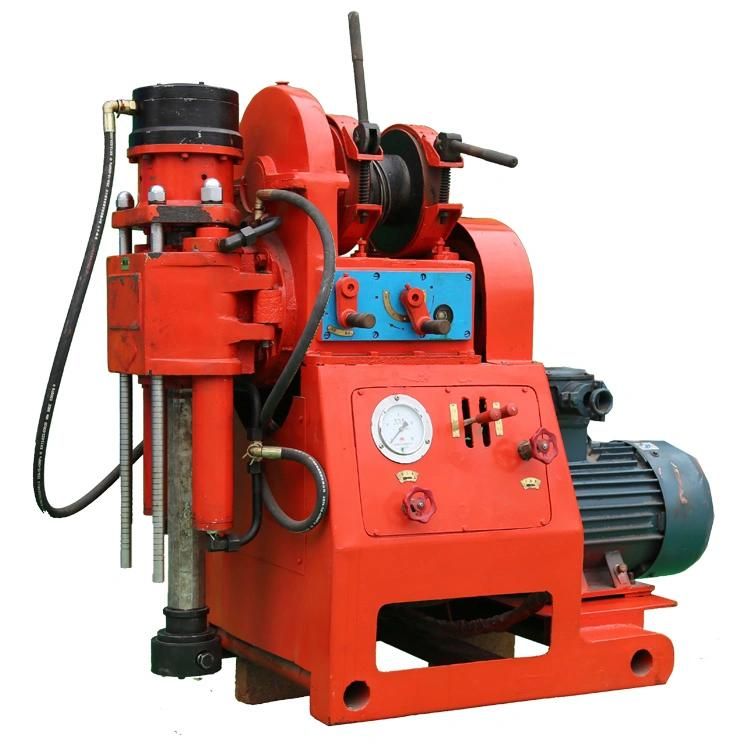

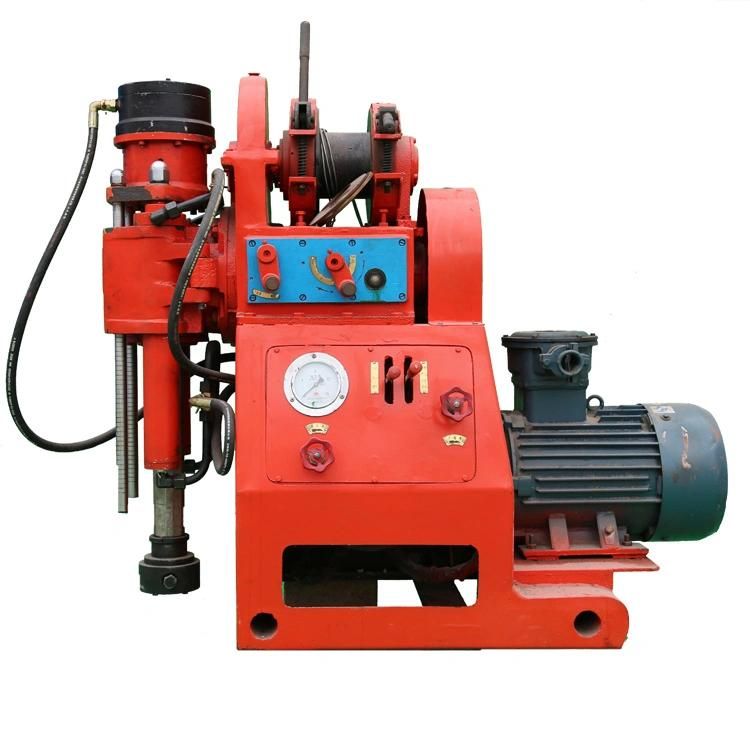

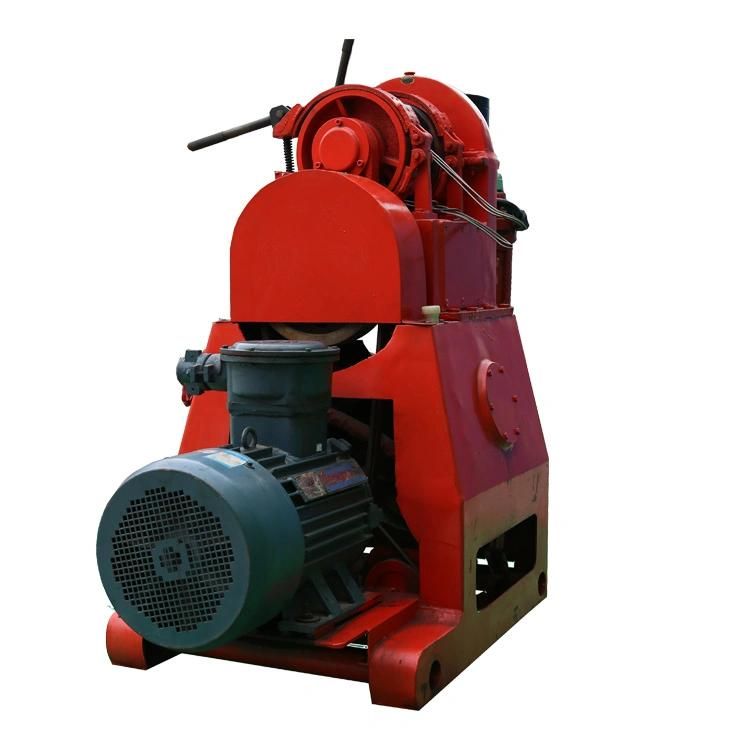

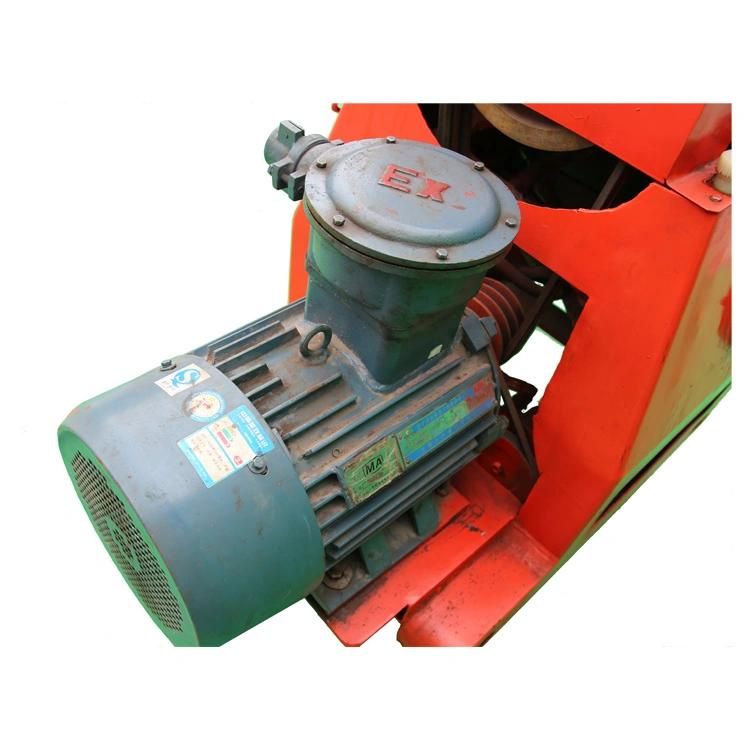

Product picture:
Company information:
