• Model NO.：YT28
• Drill Hole Diameter：<100mm
• Drill Hole Depth：<100m
• Bit Type：Diamond Bit
• Drilling Way：Compound
• Working Water Pressure：200~300 PA
• Rock Drill Hole Diameter：34~42 mm
• Rock Drill Hole Depth：5m
• Transport Package：Wooden Box
• Trademark：HIGHTOP
• Origin：China
• HS Code：8430503900
• Production Capacity：50000 Pieces Each Year

Basic Info.

Model NO. YT28 Drill Hole Diameter <100mm Drill Hole Depth <100m Bit Type Diamond Bit Drilling Way Compound Working Water Pressure 200~300 PA Rock Drill Hole Diameter 34~42 mm Rock Drill Hole Depth 5m Transport Package Wooden Box Trademark HIGHTOP Origin China HS Code 8430503900 Production Capacity 50000 Pieces Each Year

Product Description

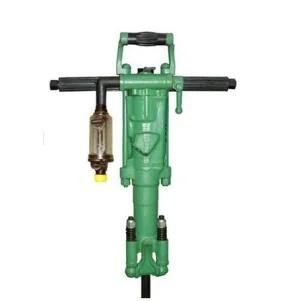

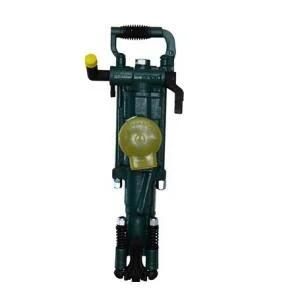

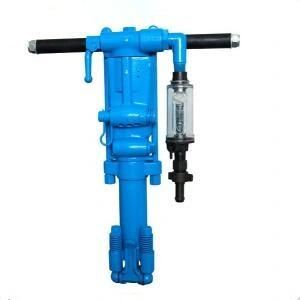

Pneumatic rock drill is an important tool for rock drilling operation in mines, railway, communication and water conservancy projects. Suitable for making horizontal and inclined blast holes in medium-hard and hard rocks. Computer controlled drilling machine from the factory run test bed, grasp the dynamic characteristics of each product to avoid the occurrence of human error to ensure that the manufactured products of excellent quality and superior performance.



Main Characteristics:

1. The use of modern design means, performance of each product is optimized.

2. For all operating agencies were arranged according to ergonomic principles, to ensure that the products of high-performance, high efficiency and convenience of operation, security.

3. Quality materials and scientific and forging, all reflect the "quality" content, to ensure that the products of high strength, high wear resistance and impact resistance.



Model	YT24	YT27	YT28	YT29A	YT23 (7655)	YSP45
Weight	24kg	27kg	27kg	26.5kg	24kg	44kg
Length	678mm	668mm	640mm	659mm	628mm	661mm
Air pressure	0.4-0.63Mpa	0.63Mpa	0.4-0.5Mpa	0.4-0.63mpa	0.4-0.63Mpa	0.4-0.63Mpa
Impact frequency	>=31HZ	>=36.7HZ	>=38HZ	>=36HZ	≥34HZ	>=47HZ
Air consumption	<=66.7L/s	<=83.3L/s	<=85L/s	<=88L/s	≤80L/S	≤83L/S
Impact energy	>=65J	>=75.5J	>=70J	>=50J	>=42J
Cylinder*stroke	70mm*70mm	80mm*60mm	90mm*500mm	82mm*60mm	76mm*55mm	95*47mm
Air pipe diameter	19/25 mm	19/25 mm	19/25 mm	19/25 mm	19/25 mm	19/25 mm
Bit head size	22*108mm	22*108mm	22*108mm	22*108mm	22*108mm	22*108mm
Drilling depth	5m	5m	5m	5m	5m	5m
Bit diameter	34-42mm	34-45mm	34-42mm	34-45mm	34-42mm	34-42mm



FAQ

1. OEM is available?

Yes, we can put your logo on the machine if needed.

2. May I know the Lead time?

The lead time of our machine is 5 to 10 workdays.

3. Can you provide the whole rock drill/jack hammer equipments?

Yes. we offer hand held rock drill, pneumatic air leg rock drill, YT26 portalbe handheld rock drill/air powered pick.

4. Are you a factory?

We are a professional manufacturer of rock drill equipment since 2002.

You are welcomed to contact me for more information and product details!
I would like to offer my best quality, transport, help and discount for you!!!
