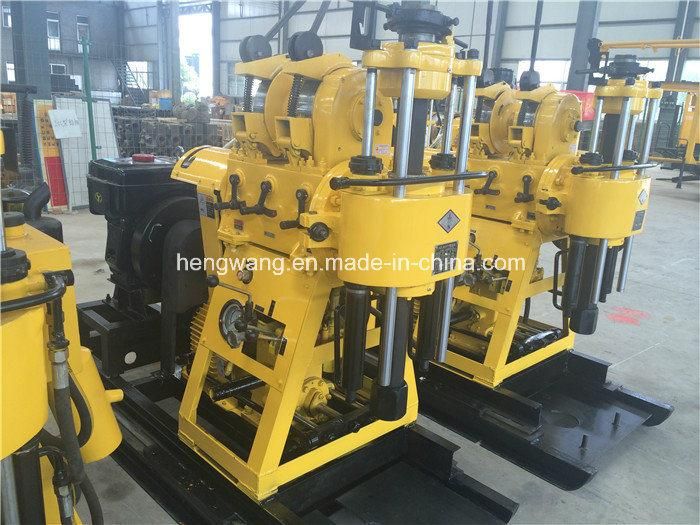

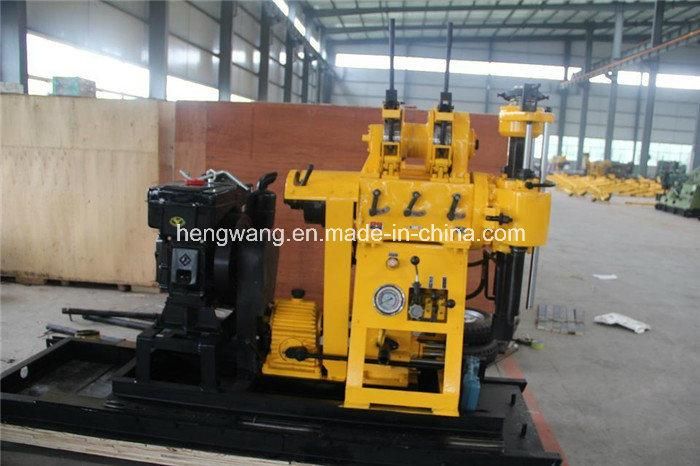

Hot Sale in Africa Water Well Drilling Equipment (HW-190)

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Certification：ISO 9001:2000
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：200-250mm
  • Drill Hole Depth：100-150m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HW-190
  • Drilling Way：Rotary
  • Type：Core Drilling Rig
  • Part Name：Water Well Drilling Rig
  • Model Number：Hw-190
  • Drilling Depth：190m
  • Maximum Open Hole Caliber：300mm
  • End Hole Caliber：75mm
  • Drill Rod Caliber：50mm
  • Drilling Angle：90~75
  • Diesle Engine Power：18 HP
  • Warranty：1 Year
  • Usage：Coal, Water Well
  • Transport Package：Wooden Case
  • Specification：SGS
  • Trademark：HW
  • Origin：Shandong, China
  • HS Code：8430412100
  • Production Capacity：1000-2000 Sets,Month

Description


Unity machine parameterDrilling depth30-190mDrill rod caliber50 42mmEnd hole caliber75 46mmMax. open hloe caliber220mmDrilling angle90°~75°Drill weight (No include power)610kgUnity machine dimensions2.1×0.9×1.3mSpindlespindle speed130, 300, 480, 730, 830, 1045r/minSpindle stroke450mmHoistMax.single line hoisting capacity1600kgSingle line lifting speed1.06, 0.67, 0.32m/sWirerope caliber13mmWirerope cubic measure35mHug floodgate caliber254mmHug folldgate belt width50mmDistance between drill and hole230mmMud pumpTypeHorizontal single urn twin-actionDisplacement170L/minMaximum pressure1.5MpaWork pressure0.7MpaPowerDiesle engineS1105 18HPElectric motorY160M-4 15KW
