0~80m Depth Small Water Well Drilling Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：<100mm
  • Drill Hole Depth：50-100m
  • Bit Type：Drag Bit
  • Drilling Way：Rotary

Base Info

  • Model NO.：HW80
  • Type：Gasoline or Diesel
  • Model：Hw80
  • Max. Drilling Diameter：70-300mm
  • Max. Drilling Depth：60-80m
  • Total Power：7.5 Kw
  • Engine Power：1.2kw
  • Pump：2.2kw, 220V(Flow Head 46m)
  • Height of Tower：3m
  • Dimension(L*W*H)：1100*600*500(mm
  • Power Type：Gasoline
  • Transport Package：Wooden Case
  • Specification：CE
  • Trademark：HW
  • Origin：Shangdong China
  • HS Code：84304122
  • Production Capacity：50000set,Year

Description

Technical Parameters of Water Well Drilling Rig

Type

HW-80

Max. Drilling Diameter

70-300mm

Max. Drilling Depth

60-80m

Total Power

7.5 kw

Engine Power

1.2kw

Lifting Power

1.0kw

Pump

2.2kw,220V(flow head 46m)

Capacity of hoist

1.0t

Height of tower

3m

Total Weight

700kgs(150m pipes)

Drilling Rod Length

2m/piece

Diameter of Drilling Rod

42mm

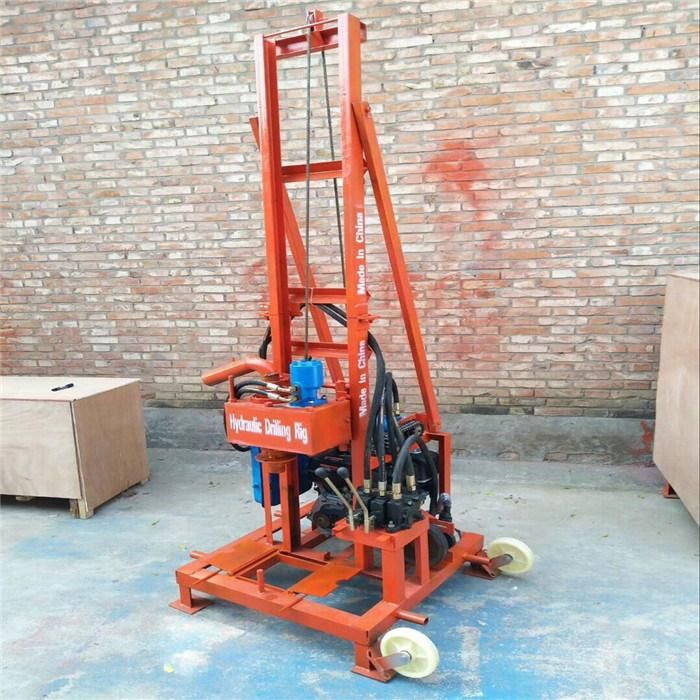

The real details photo
0~80m Depth Small Water Well Drilling Machine
