Hwd-230 Borehole Small Water Well Drilling Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Certification：ISO 9001:2000
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：200-250mm
  • Drill Hole Depth：100-150m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HWD-230
  • Drilling Way：Mobile Gyrator
  • Type：Core Drilling Rig
  • Part Name：Water Well Drilling Rig
  • Model Number：Hwd-230
  • Drilling Depth：230m
  • Maximum Open Hole Caliber：300mm
  • End Hole Caliber：75mm
  • Drill Rod Caliber：50mm
  • Drilling Angle：90~75
  • Diesle Engine Power：22 HP
  • Usage：Coal, Water Well
  • Power Type：Diesel
  • Transport Package：Wooden Case
  • Specification：SGS
  • Trademark：HW
  • Origin：Shandong, China
  • HS Code：8430412100
  • Production Capacity：1000-2000 Sets,Month

Description

Spindlespindle speed64, 128, 287, 557r/minSpindle stroke450mmHoist Max.lifting capacity2400kgSingle line lifting speed0.41, 0.82, 1.64m/sWirerope caliber13mmWirerope length35mReel diameter140mmHug floodgate caliber260mmHug folldgate belt width70mmMud pumpTypeHorizontal single-urn twin-actionDisplacementDiesel engine 170L/min     Electric motor 150L/minMaximum pressure3MpaWork pressure1.5MpaInlet pipe caliber40mmOutlet pipe caliber30mmTriangle conveyer beltB1728mmHydralic oil pumpTypeCBT-F-314Triangle conveyer beltB1100 X 1

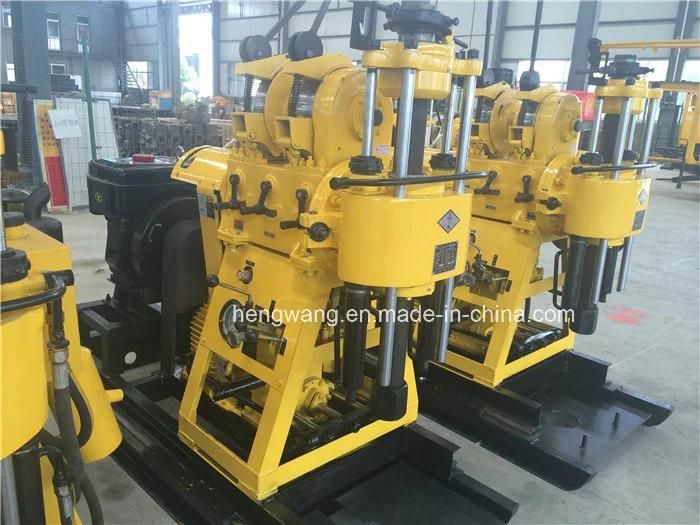

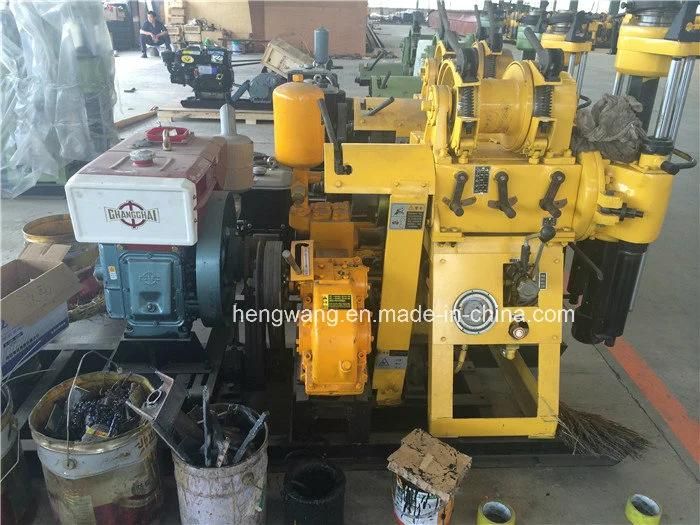

Hwd-230 Borehole Small Water Well Drilling Machine
Hwd-230 Borehole Small Water Well Drilling Machine
Hwd-230 Borehole Small Water Well Drilling Machine
Hwd-230 Borehole Small Water Well Drilling Machine
