Borehole Drill Rig in Nigeria Mining

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：2 Years
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：100-150mm

Base Info

  • Model NO.：60M
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Name：Borehole DTH Drill Rig
  • Color：as Your Requirement
  • Engine：Yuchai
  • Drill Pipe Sizes：76 X 3,000 mm
  • Drill Pipe Dia：90-130 mm
  • Rotation Torque (Max.)：2200 N.M
  • Rotation Speed：0 -150 Rpm
  • Working Pressure：0.7 - 2.5 MPa
  • F.a.D：8 - 20 M3,Min
  • Transportation Dimensions：5700 X 2130 X 2200 mm
  • Transport Package：Standard Export Package
  • Specification：60m Max
  • Trademark：Hengwang
  • Origin：Shandong, China
  • HS Code：8430419000
  • Production Capacity：500 Sets Per Month

Description

Transportation Dimensions

5700 X 2130 X 2200 mm

Borehole Drill Rig in Nigeria Mining

Features:

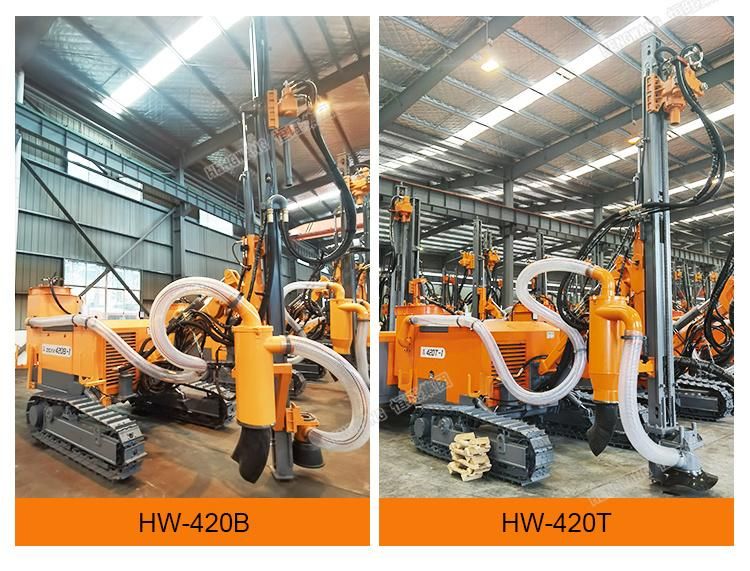

  • 1. HW-420B model uses double cycloid motor slewing head, with large torque and fast speed, which can meet the requirements of 76mm drill pipe and 130 hole diameter.

  • 2. The HW-420B series is equipped with engineering crawlers and plunger motors as standard, which makes the product quality more reliable, stronger driving force, and can better adapt to the complex geological and road environment of open-pit mines.

  • 3. The centralized control console is easy to operate, improve work efficiency, and increase the safety and comfort of operation.

  • 4. The HW-420B series drilling rig has added leveling function, which improves the climbing and cross-country performance of the equipment, can adapt to complex terrain conditions, and can drill vertical holes for slopes to meet the needs of different working conditions.
    Borehole Drill Rig in Nigeria Mining
