Portable Hydraulic Rock Drilling Machine
Ji Ning Hengwang Mining Machinery Co., Ltd.- Certification：ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：4100X2030X2020
- Drill Hole Depth：25m
- Bit Type：Diamond Bit
Base Info
- Model NO.：HW-50
- Drilling Way：Impactor
- Type：Crawler
- Name：Crawler Rock Drilling Machine
- Drill Diameter：80-110mm
- Drill Depth：25m
- Geology：Rock
- Rock Hardness：F = 6-20
- Lifting Force：15000n
- Power：20.2kw
- Drill Pipe：60mm
- Working Pressure：0.7-1.4 MPa
- Air Consumption：9-13m ³ , Min
- Transport Package：Container
- Specification：4100x2030x2020
- Trademark：Hengwang
- Origin：Shandong, China
- HS Code：8430691900
- Production Capacity：500 Sets Per Month
Description
Basic Info.
Model NO. HW-50 Drilling Way Impactor Type Crawler Name Crawler Rock Drilling Machine Drill Diameter 80-110mm Drill Depth 25m Geology Rock Rock Hardness F = 6-20 Lifting Force 15000n Power 20.2kw Drill Pipe 60mm Working Pressure 0.7-1.4 MPa Air Consumption 9-13m ³ / Min Transport Package Container Specification 4100x2030x2020 Trademark Hengwang Origin Shandong, China HS Code 8430691900 Production Capacity 500 Sets Per MonthProduct Description
Hydraulic Crawler DTH Drilling Rig Rock Blasting Down Hole Drill Rig DescriptionHydraulic Crawler DTH Drilling Rig Rock Blasting Down Hole Drill Rig equipped with large power pneumatic motor, heavy duty hydraulic drill arm,hydraulic system 17.24 Mpa, 5.9m long sliding frame and high air presssure DTH hammer. drilling rig has reliable performance, suitable for operating conditions. It also reduce costs and improve the efficiency.
Hydraulic Crawler DTH Drilling Rig Rock Blasting Down Hole Drill Rig Parameter
| Model | HW-50 |
| Rock hardness | f = 6-20 |
| Machine weight | 3100kg |
| Drilling hole diameter | Φ80-110mm |
| Dimensions | 4100x2030x2020 |
| Economic drilling depth | 25m |
| The pitch angle of the carriage | 118.5 ° and 23.5 ° |
| Rotation speed | 105r / min |
| The swing angle of the carriage | 36.5 ° to 11.5 ° for a total of 48 ° |
| Rotary torque | 980N · m |
| Lifting force | 15000N |
| The carriage compensation length | 900mm |
| Push the way | cylinder - chain |
| Power | ZS1125GM (20.2kW 2200r / min) |
| Advance travel | 2000mm |
| Drill pipe | Φ60 |
| Walking speed | 0-2.0Km / h |
| Working pressure | 0.7-1.4 MPa |
| Climbing capacity | 30 ° |
| Air consumption | 9-13m ³ / min |
| Ground clearance | 254mm |

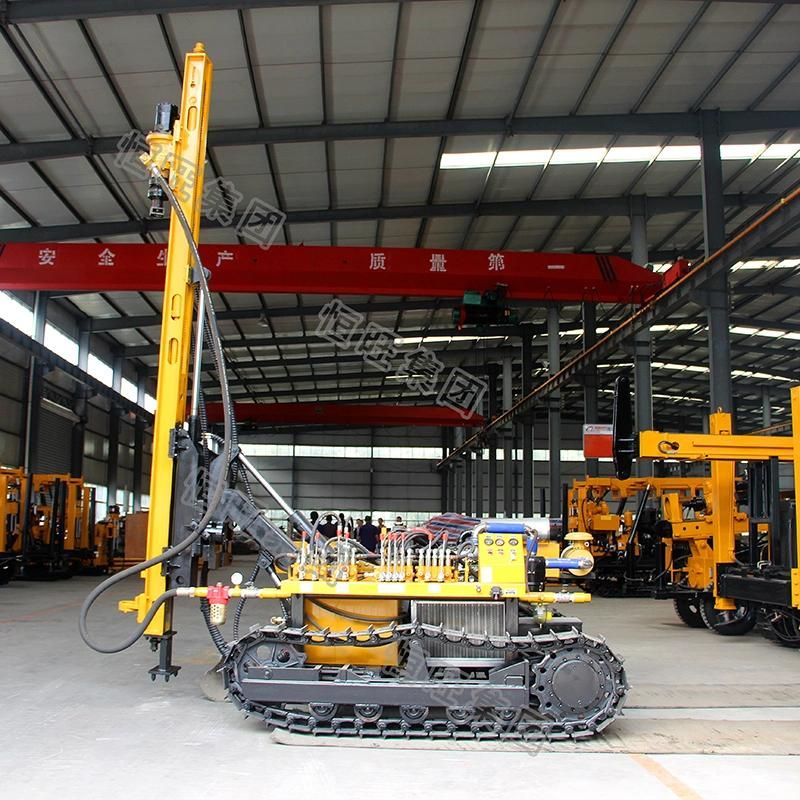

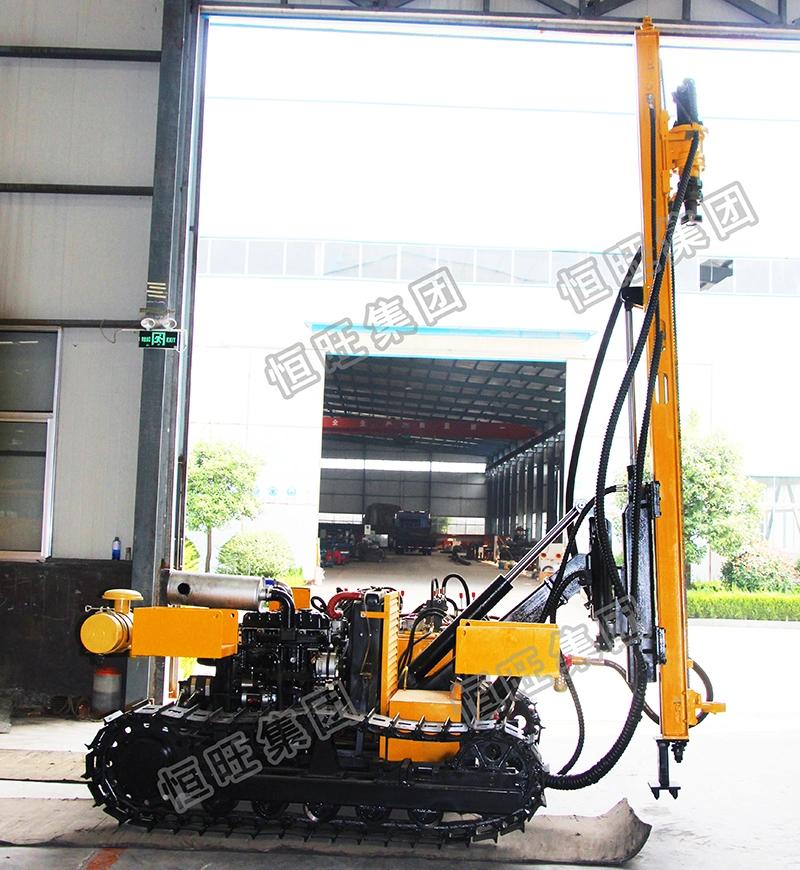

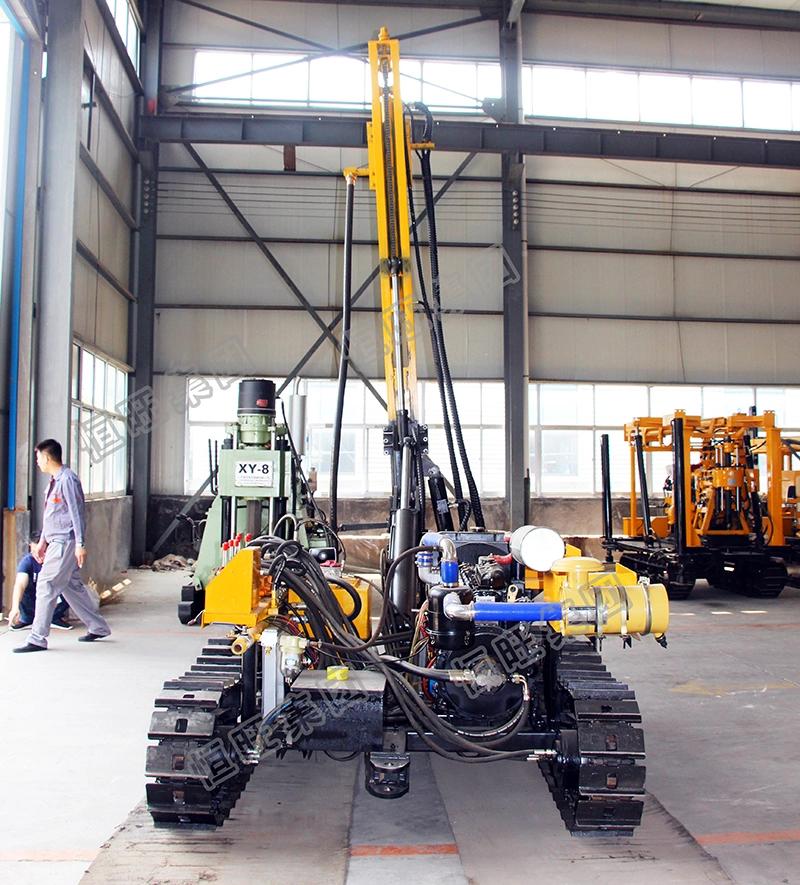

Hydraulic Crawler DTH Drilling Rig Rock Blasting Down Hole Drill Rig Photos
If you have any further questions, please don't hesitate to drop us an email - we're here to help!
mobile:+8613608913867
