160m Depth Water Boring Machine, Water Well Drilling Rig Price

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Certification：ISO 9001:2000
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：150-200mm
  • Drill Hole Depth：150-200m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HW160
  • Drilling Way：Compound
  • Type：Core Drilling Rig
  • Part Name：Water Well Drilling Rig
  • Model Number：Hw-160
  • Drilling Depth：160m
  • Maximum Open Hole Caliber：260mm
  • End Hole Caliber：75mm
  • Drill Rod Caliber：50mm
  • Drilling Angle：90~75
  • Diesle Engine Power：18 HP
  • Usage：Coal, Water Well
  • Power Type：Diesel
  • Transport Package：Wooden Case
  • Specification：SGS
  • Trademark：HW
  • Origin：Shandong, China
  • HS Code：8430412100
  • Production Capacity：1000-2000 Sets,Month

Description



Unity machine parameter

Drilling depth

10-160m

Maximum open hole caliber

260mm

End hole caliber

75mm

Drill rod caliber

50mm

Drilling angle

90~75

Drill weight (No include power)

510 560kg

Unity machine dimensions

2.5×1×1.3 2.5×0.9×1.3m

Spindle

spindle speed

142,285,570r/min

Spindle stroke

450mm

Hoist

Max.single line hoisting capacity

960kg

Single line lifting speed

0.41,0.82,1.64m/s

Tightrope caliber

27m

Mud pump

Type

Horizontal single urn twin-action

Displacement

95/77L/min

Diesle engine

Model s1110  18HP

Electric motor

Y160M-4 11kw 1440r/min

Maximum pressure

1.2Mpa

Work pressure

0.7Mpa

Water inlet caliber

30mm

Water to exit caliber

25mm

Triangle conveyor belt

B1575mm160m Depth Water Boring Machine, Water Well Drilling Rig Price

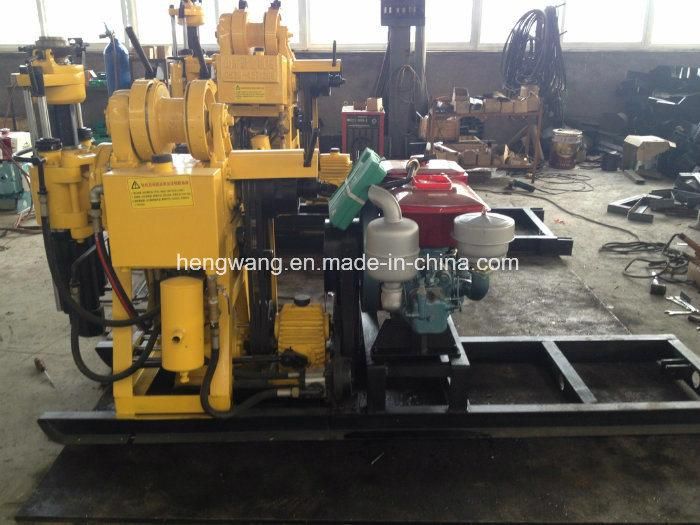

160m Depth Water Boring Machine, Water Well Drilling Rig Price

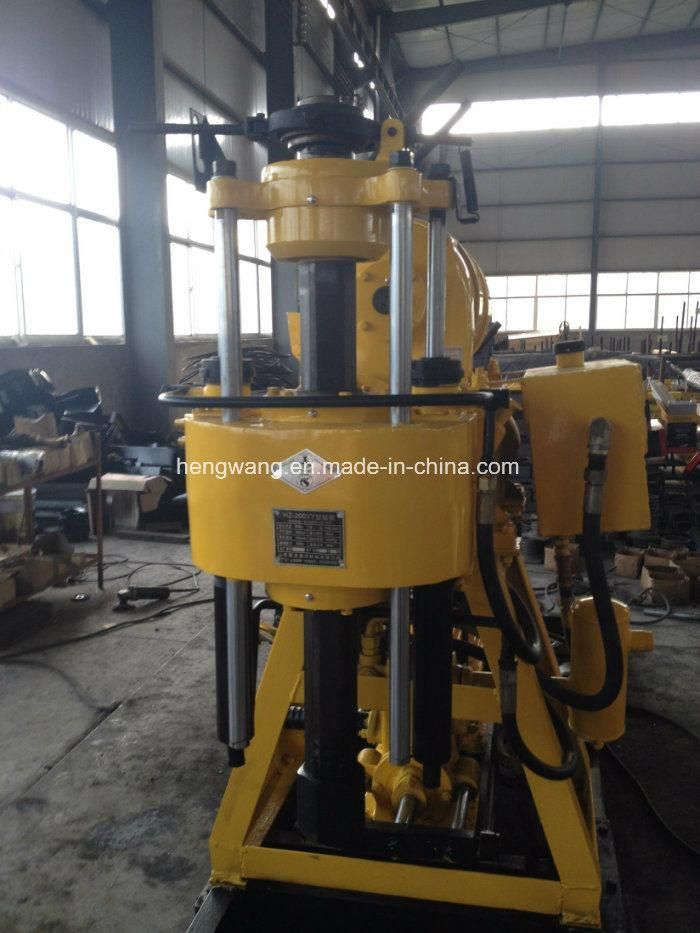

160m Depth Water Boring Machine, Water Well Drilling Rig Price
