Geotechnical Crawler Rotary Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Online Support, Video Technical Support
- Warranty：1 Year
- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：75mm-300mm
Base Info
- Model NO.：HW-230D
- Drill Hole Depth：230m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Type：Truck Mounted
- Name：Crawler Rock Drilling Machine
- Drill Diameter：75-300mm
- Drill Depth：230m
- Geology：Rock,Sand ,Clay,Soil,etc
- Power：15kw
- Drill Pipe：Dia.60mm,Dia.76mm Dia.89 Dia.102
- Drill Pipe Length：1 M 2m 3m
- Mud Pump：Bw160
- Weight：1150kg
- Size：2700*950*1770
- Transport Package：Container
- Specification：2700*950*1770
- Trademark：Hengwang
- Origin：Shandong, China
- HS Code：8430691900
- Production Capacity：500 Sets Per Month
Description
Details Images
Geotechnical Crawler Rotary Drilling Rig

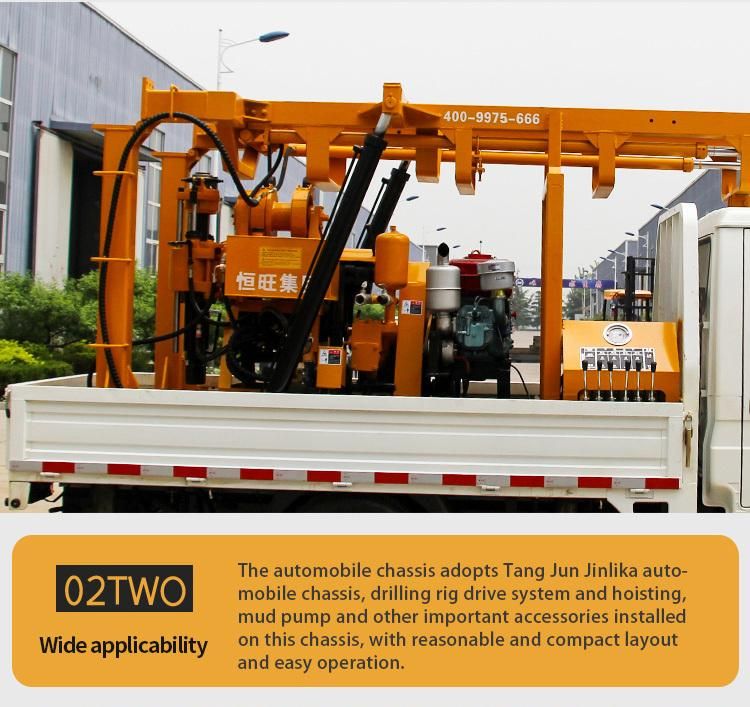

The automobile chassis adopts Tang Jun Jinlika auto-mobile chassis, drilling rig drive system and hoisting,mud pump and other important accessories installedon this chassis, with reasonable and compact layoutand easy operation.

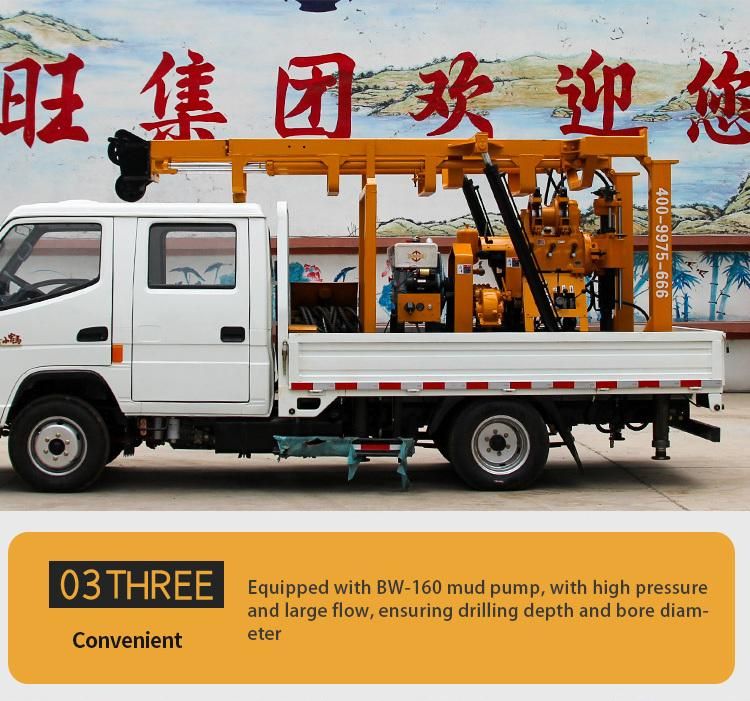

Equipped with BW- 160 mud pump, with high pressureand large flow, ensuring drilling depth and bore diameter

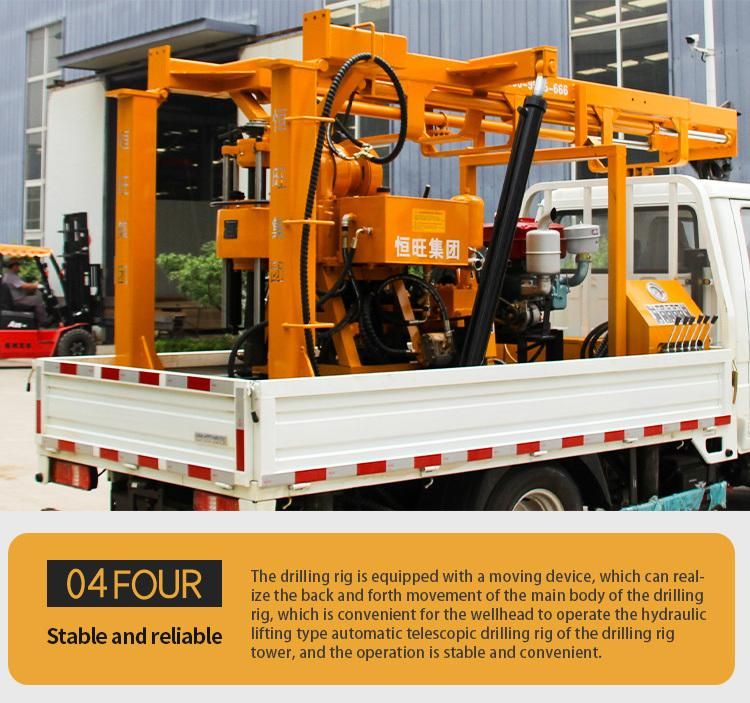

The dilling rig is equipped with a moving device, which can real-ize the back and forth movement of the main body of the drillingrig, which is convenient for the wellhead to operate the hydrauliclifting type automatic telescopic dilling rig of the rilling rig tower, and the operation is stable and convenient.
Product Usage
It can cope with avariety of complex geology, increase labor efficiency, reduce labor cost,geological census exploration, road and high rise building foundation exploration,and' various concrete structure inspection holes, river dam,road bed grouting holes,drilling and direct grouting, civil water wells and Ground temperature large air conditioners, etc.

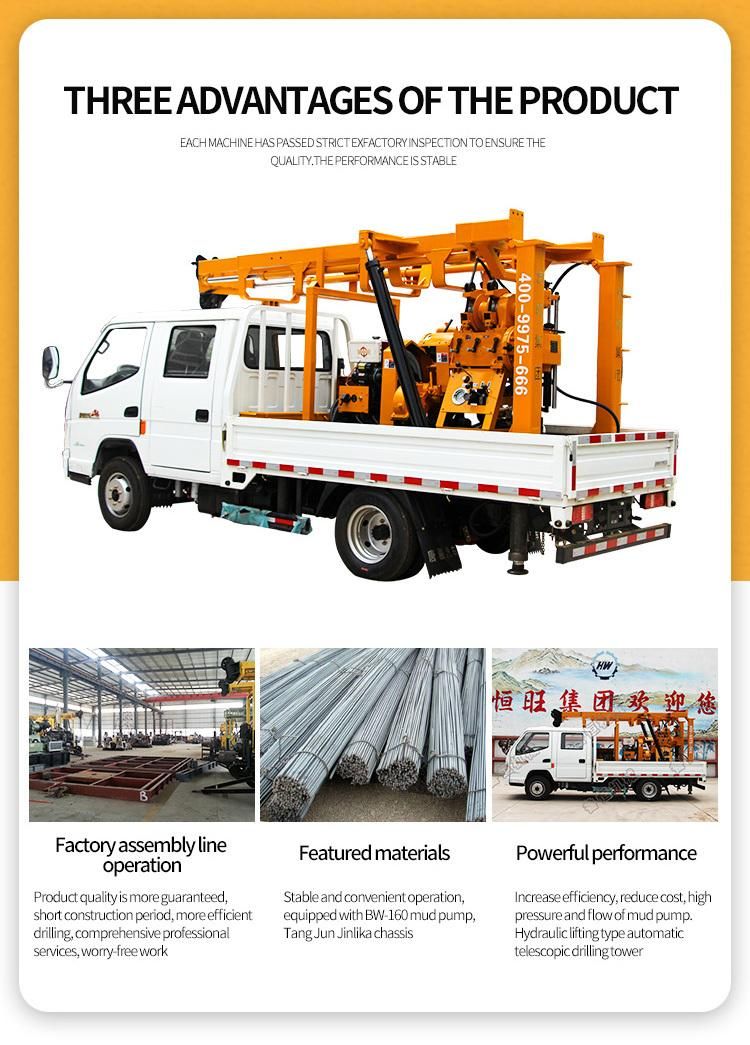

Our Advantages
Company Profile
