Crawler Mounted DTH Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：Yes
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：<100mm

Base Info

  • Model NO.：HW421
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Product Name：Surface DTH Drilling Rig
  • Model ：421
  • Diesel Engine Power：162kw
  • Drill Depth：20m
  • Hole Diameter：80-115mm
  • Air Comrpessor Size：14.5bar
  • Working Weight ：6800kg
  • Transport Package：Wooden Box
  • Specification：6800kg
  • Trademark：HW
  • Origin：Shandong
  • HS Code：8430509000
  • Production Capacity：800set,Month

Description

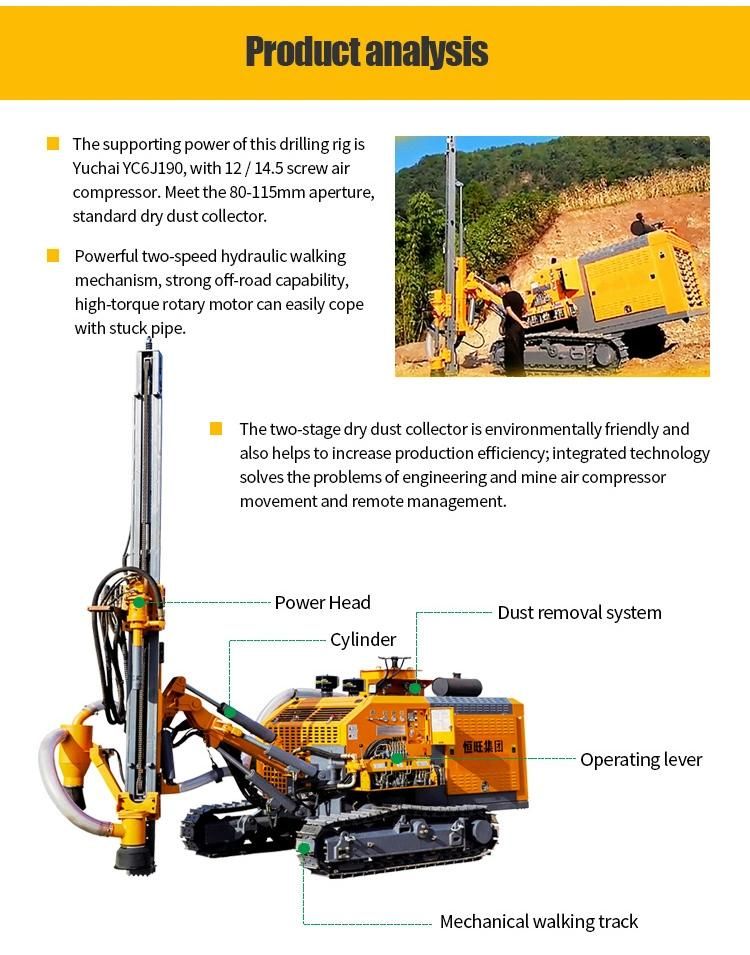

                                       air compressor built-in  surface DTH mine drilling rig for quarry                                                                                     ModelHW421Machine Weight6800kgEngineYuchai  162 kWDrill Pipe Sizes60 X 3,000 mmHole Dia80-115 mmWorking Pressure15 barF.A.D12 m3/minTramming Speed ( Max.)3 km/h (High Speed)Gradient25°Track Frame Oscilation±10°Transportation Dimensions6000X2800X2750 mm
Crawler Mounted DTH Drilling Rig
Crawler Mounted DTH Drilling Rig
Crawler Mounted DTH Drilling Rig
Crawler Mounted DTH Drilling Rig
Crawler Mounted DTH Drilling Rig
Crawler Mounted DTH Drilling Rig
China crawler mounted mobile  blasting surface driling rig contacts:
