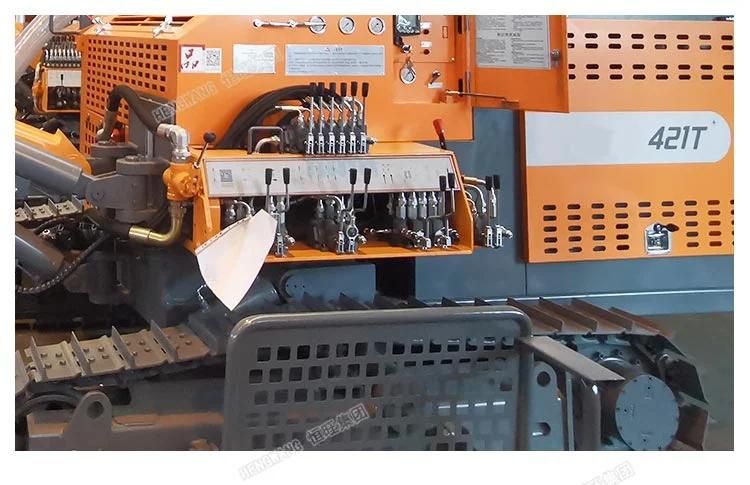

Small Pneumatic Mining Surface Borehole DTH Drilling Rigs

Ji Ning Hengwang Mining Machinery Co., Ltd.

After-sales Service：Yes
Warranty：Yes
Certification：CE, ISO 9001:2008
Condition：New
Motor：AC Motor
Drill Hole Diameter：100-150mm

Base Info

Model NO.：40m
Drill Hole Depth：<100m
Bit Type：Hammer Bit
Drilling Way：Impactor
Name：Small Pneumatic Mining Surface Borehole DTH Drilli
Transport Package：Standard Export Box
Specification：40M
Trademark：Hengwang
Origin：Shandong
HS Code：8430419000
Production Capacity：1000 Sets Per Month

Description

Main technical specifications

Power

Yuchai YC6J220 162 kW

Hole Depth

20m

Drill Pile Sizes

60 mmX3000 mm

Hole Dia

80-115mm

DTH Hammer

3.5"

Rotation Torque (Max.)

1650N.m

Rotation Speed

0-110 rpm

Working Pressure

14.5 bar

F.A.D

12 m3/min

Tramming Speed (Max.)

2/3 km/h Dual Speed

Gradient

30°

Track Frame Oscilation

±10°

Total Weight

6,800 kg

Transportation Dimensions

6,000X2,800X2,750 mm

Dry Dust Collector

Standard

Dual Speed Walking Motor

Standard

Small Pneumatic Mining Surface Borehole DTH Drilling Rigs
