200m 300m Borehole Air Drilling Rig Water Well Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Support
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：200-250mm

Base Info

  • Model NO.：HQZ220L
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Type：Crawler
  • Rated Power：60kw
  • Max. Drilling Depth：220m
  • Drilling Diameter：245mm
  • Drill Rod：76,89mm
  • Color：Customized
  • Transport Package：Container
  • Specification：3400*1500*2400 mm
  • Trademark：HW
  • Origin：China
  • HS Code：8430419000
  • Production Capacity：500

Description

Application200m 300m Borehole Air Drilling Rig Water Well Drilling Rig200m 300m Borehole Air Drilling Rig Water Well Drilling Rig
Specification

Model

HQZ220L

Overall weight (T )

4.2

Dimension (mm )

3800*1700*2350

Drilling diameter (mm )

130-294

Drilling depth (m )

220

One-time advance length of the drill(mm)

3000

Traveling speed (km/h )

2.5

Climbing ability (max )

30

Minimum Ground Clearance (mm)

250

Working Air Pressure (mpa )

1.7-2.5

Air consumption (m³/min)

15-27

Main machine power (kw)

Yunnei 60Kw

Rotary Speed (rpm)

48 - 70

Rotary torque (Nm )

4200-5600

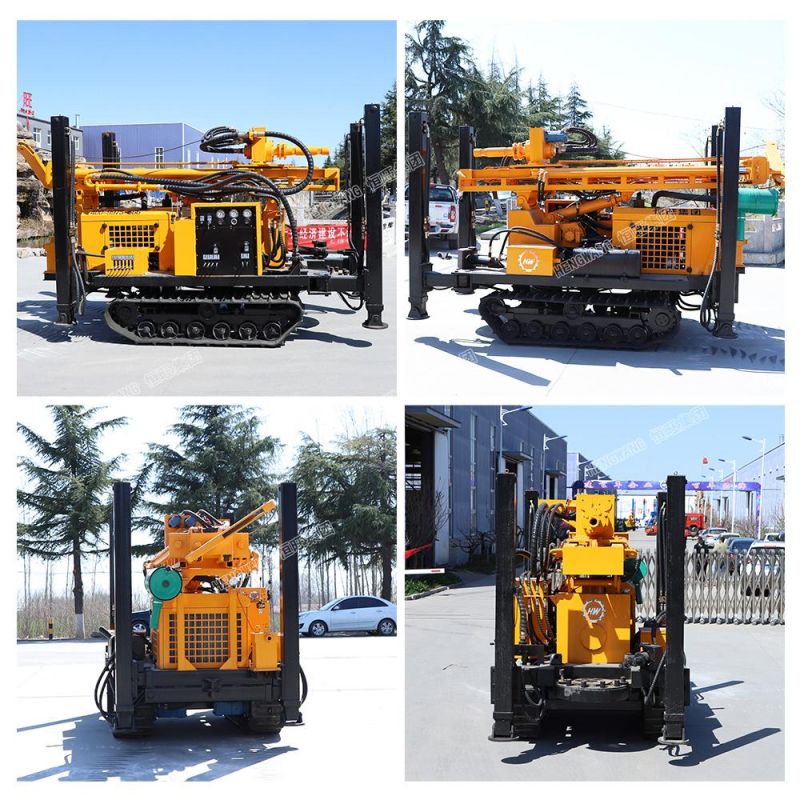

Products Details200m 300m Borehole Air Drilling Rig Water Well Drilling Rig200m 300m Borehole Air Drilling Rig Water Well Drilling Rig
