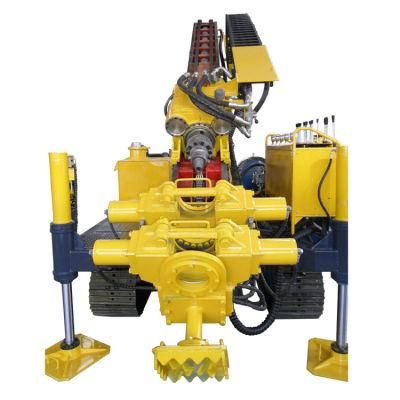

Integrated DTH Surface Rock Blast Hole Drill Rig Machine
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：90-138mm
Base Info
- Model NO.：20m
- Drill Hole Depth：30m
- Bit Type：Diamond Bit
- Drilling Way：Impactor
- Model：Hw421t
- Drilling Diameter：90-138mm
- Drilling Depth：20m
- Drill Pile Sizes：60 Mmx3000 mm
- DTH Hammer：3.5"
- Rotation Torque (Max.)：1650n.M
- Rotation Speed：0-110 Rpm
- Working Pressure：14.5 Bar
- Transport Package：Container
- Specification：6, 000X2, 800X2, 750 mm
- Trademark：Hengwang
- Origin：China
- Production Capacity：300pieces,Month
Description
Main technical specifications
Power
Yuchai YC6J220 162 kW
Hole Depth
20m
Drill Pile Sizes
60 mmX3000 mm
Hole Dia
80-115mm
DTH Hammer
3.5"
Rotation Torque (Max.)
1650N.m
Rotation Speed
0-110 rpm
Working Pressure
14.5 bar
F.A.D
12 m3/min
Tramming Speed (Max.)
2/3 km/h Dual Speed
Gradient
30°
Track Frame Oscilation
±10°
Total Weight
6,800 kg
Transportation Dimensions
6,000X2,800X2,750 mm
Dry Dust Collector
Standard
Dual Speed Walking Motor
Standard
Whole set with air compressor needs a 40GP;
