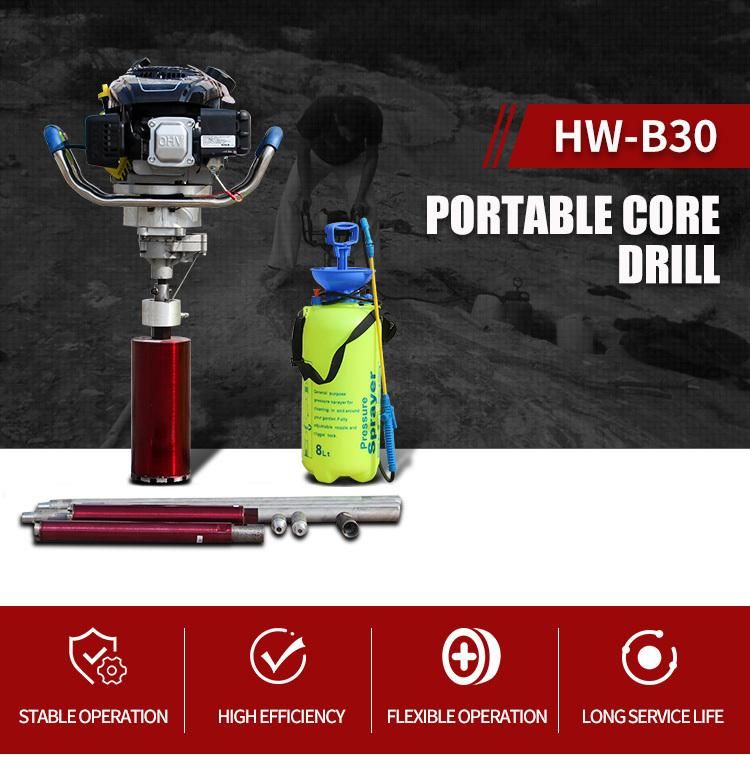

Portable Backpack Sample Drill Rig Hydraulic Mining Core Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：<100mm
- Drill Hole Depth：<30m
- Bit Type：Diamond Bit
Base Info
- Model NO.：HW-B30
- Drilling Way：Rotary
- Transport Package：1.7m*0.96m*0.85m
- Specification：1.7m*0.96m*0.85m
- Trademark：Hengwang
- Origin：Shandong, China
- HS Code：8428909090
- Production Capacity：500 Sets Per Month
Description
model
HW-B30
borehole diameter (mm)
φ40-φ108mm
Drill hole depth (m)
30m(diameter 40mm)
application of rock types
Soil, medium hard(10grade)
rotation speed
2200r/min
Water consumption (L/H)
14.4L/H
power (cc)
173cc
rod rotation speed (r/min)
0-800
drill pipe
(1)Drill pipe diameter (mm)
φ32
(2)drill pipe length (mm)
720mm(including connector)
(3)Drill pipe material
Titanium alloys
(4)drill pipe weight (kg)
1.1kg
hydraulic motor
(1) Power
7.5hp
The host weight (kg)
23 kg

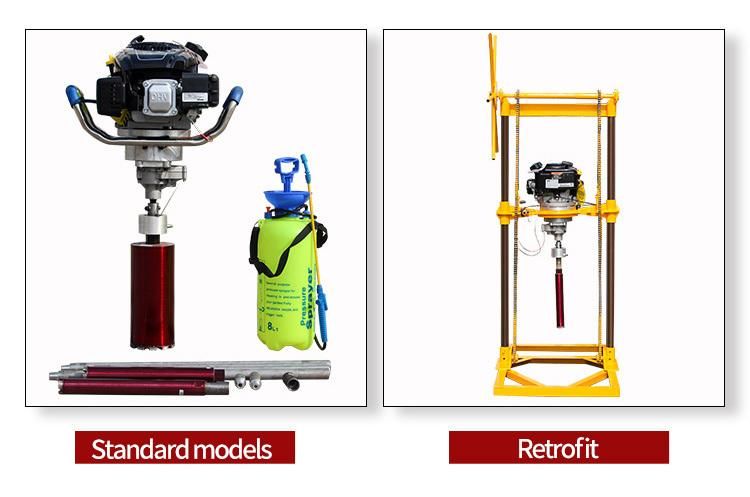

Mini Backpack drill rig Photos
