• Model NO.：HQY100
• Drilling Way：Rotary
• Type：Wheels
• Power：7.5kw
• Weight：1800kg
• Drilling Angle：90-75
• Transport Package：Standard Packing

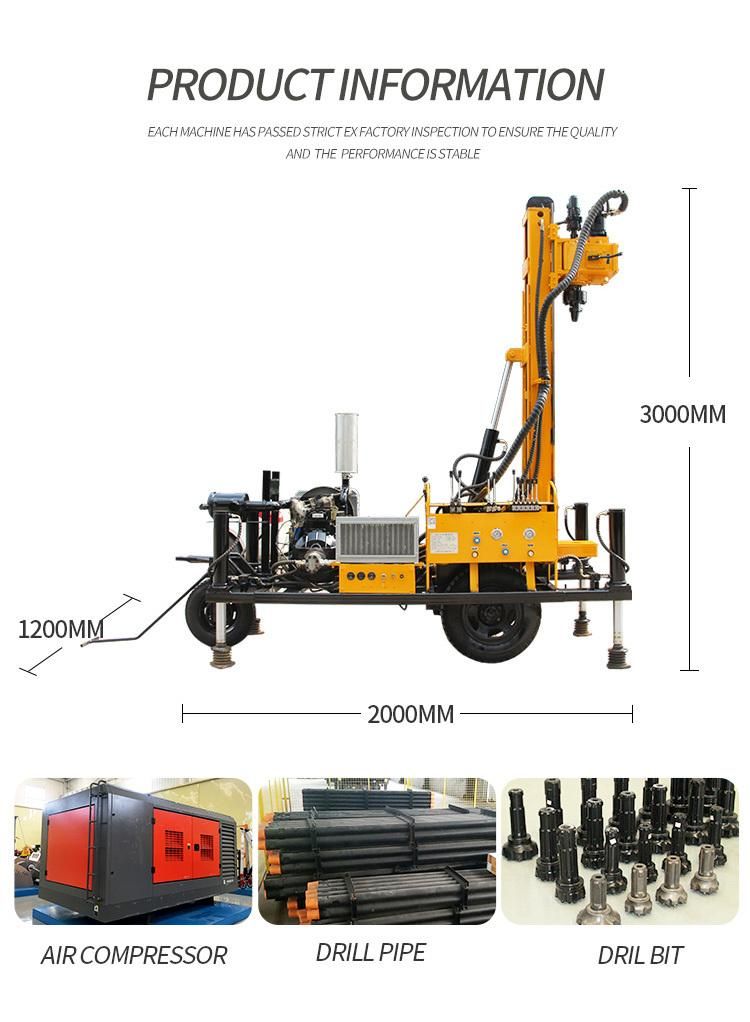

• Specification：3000*1200*2000
• Trademark：HW
• Origin：China
• HS Code：8430412100
• Production Capacity：100PCS,Month

Basic Info.

Model NO. HQY100 Drilling Way Rotary Type Wheels Power 7.5kw Weight 1800kg Drilling Angle 90-75 Transport Package Standard Packing Specification 3000*1200*2000 Trademark HW Origin China HS Code 8430412100 Production Capacity 100PCS/Month

Product Description

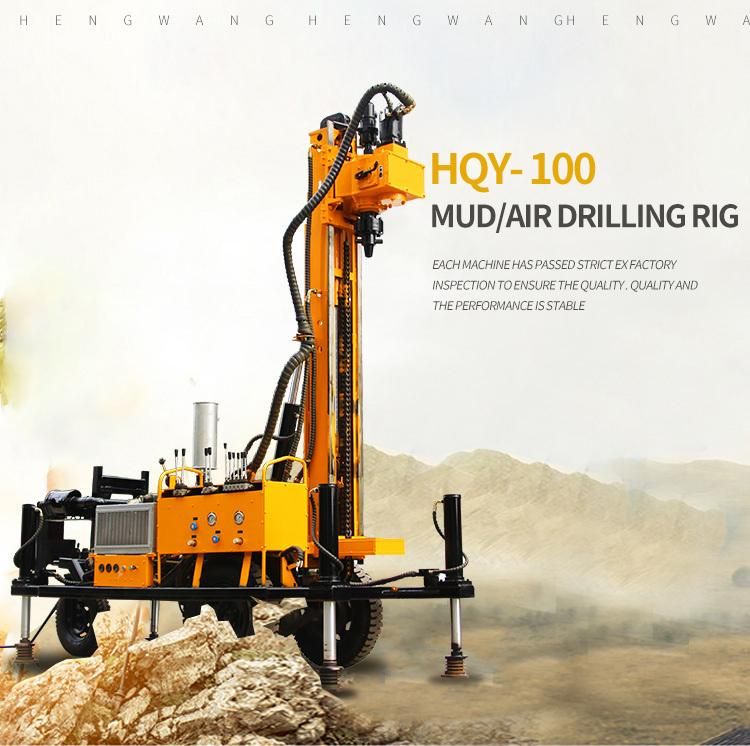

Hydraulic Pneumatic Rock Drilling Rig

Features
1: Small size, light weight, easy to install.
2: three major components, host, pumping station, console.
3: In the original transport, prospecting can be put into production, the overall structure of the mine play a protective role. Can also be used for 0-90 degree drilling on the surface.
4: rig layout flexible, mechanized twist drill pipe, reduce labor intensity, improve work efficiency.
5: The use of box-type into the rack, grips to step up, power head rotary drilling, tank pull drill,
Save bulky rigs.

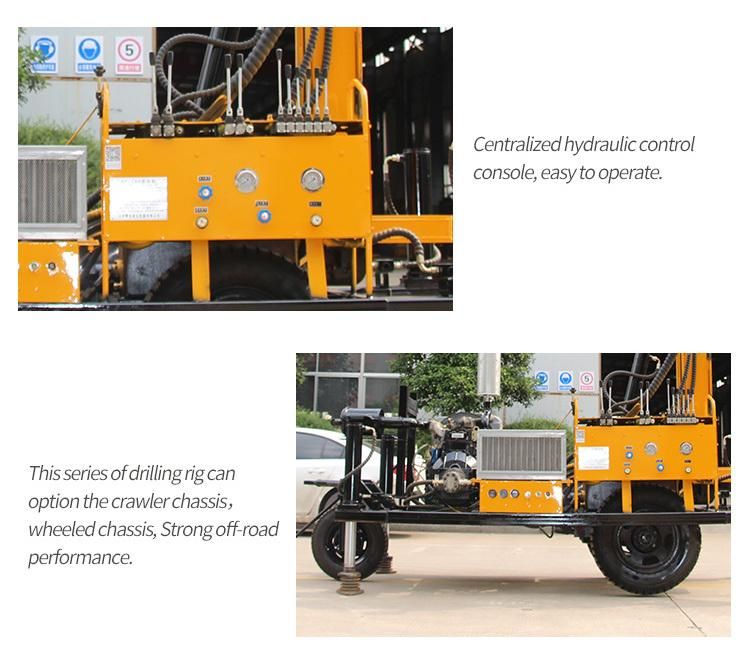

6: With the linkage function, centralized control through the console, simple and safe, Promise speed.
7: Hollow shaft design, the length of the drill pipe is not limited by the rig. Can be drilled at any angle of 360 °.
8: disassembly is good, easy to move and transport

Weight    8.7T
Size    5300*1900*2700mm
Drill diameter    130-245mm
Drill depth    140m
Push length per time    400mm
Walking speed    6000m/h
gradeability    2.5
Min. ground clearance    30mm
Working pressure    1.7-3.5mpa
air consumption    17-35 cbm/min
Power    95kw
Rotation speed    45-75 RPM
Rotation torque    9000-10000N.m
