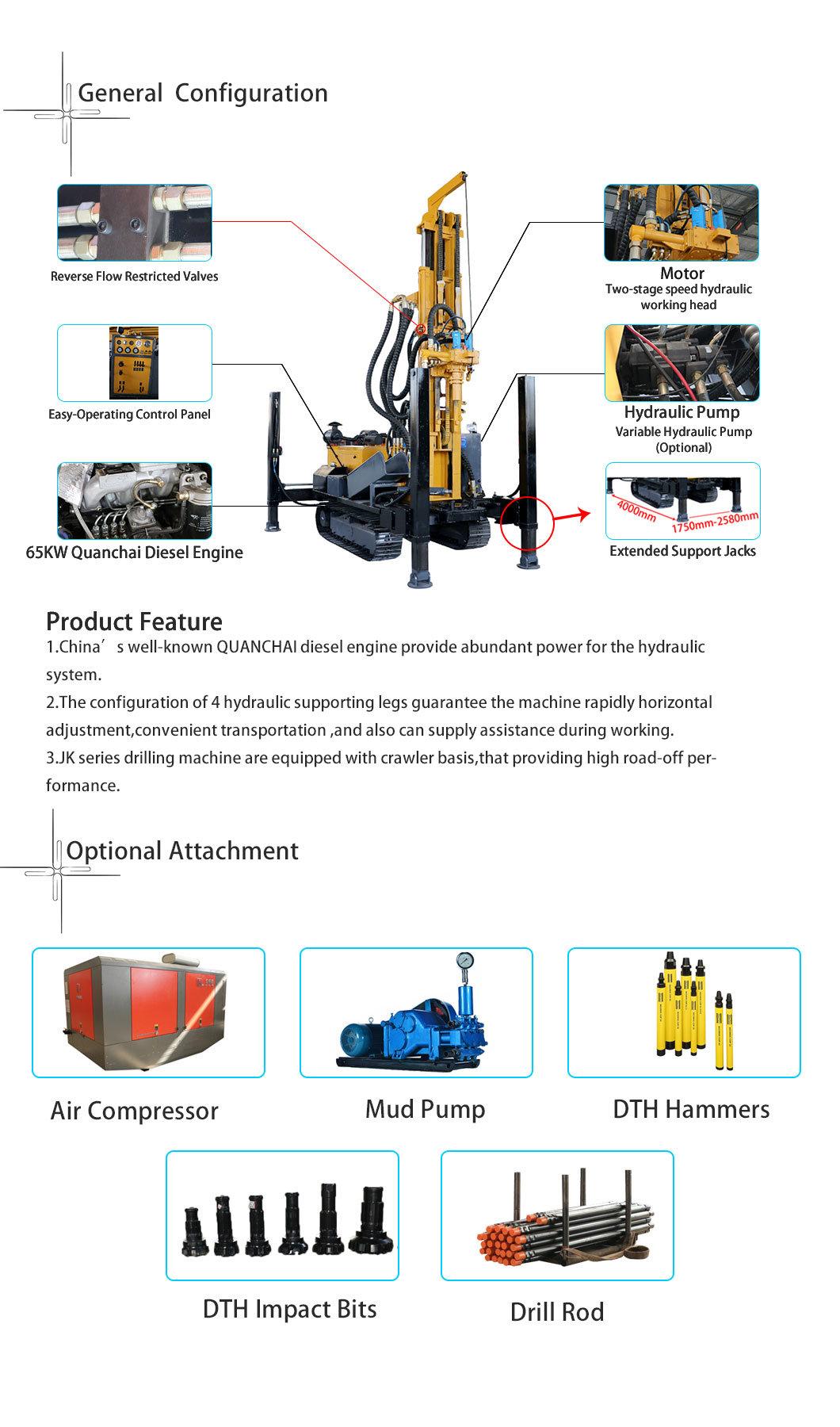

New Arrival Water Well Drilling Rig Drilling Depth 200m
Shandong JK Machinery Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：140-305mm
- Drill Hole Depth：200m
- Bit Type：Diamond Bit
Base Info
- Model NO.：JK-DR200
- Drilling Way：Rotary
- Type：Crawler
- Usage：Water Well
- Voltage：24V
- Weight：5.8t
- Warranty：1 Year
- Power Type：Diesel
- Product Name：Water Well Drilling Rig
- Transport Package：20gp
- Specification：4000*1750*2450mm
- Trademark：SDJK
- Origin：Shandong
- HS Code：8430412100
- Production Capacity：100 Pieces,Month
Description
The Main Parameters Model JK-DR200 Weight 5.8T Bore diameter 140-305mm Drilling depth 200m Stroke 3.4m Travelling speed 2.5km/h Gradeability 30% Power 65-70KW Rated pressure 1.7-3.0mpa Air consumption 17-30m³/min Drill rod diameter Φ76, Φ89 Drill rod length 1.5m 2.0m 3.0m Elevating capacity 15T Swing speed 45-70rpm Swing torque 3500-4800N.M Dimensions 4000*1750*2450mm
