• Model NO.：TZ-260
• Drilling Way：Rotary
• Type：Crawler
• Power：Hydraulic
• Configuration：Portable
• Warranty：One Year
• Transport Package：Export Standard
• Specification：4000x1600x2150mm
• Trademark：TZ
• Origin：Guangxi Liuzhou
• HS Code：8430412900
• Production Capacity：100

Basic Info.

Model NO. TZ-260 Drilling Way Rotary Type Crawler Power Hydraulic Configuration Portable Warranty One Year Transport Package Export Standard Specification 4000x1600x2150mm Trademark TZ Origin Guangxi Liuzhou HS Code 8430412900 Production Capacity 100

Product Description

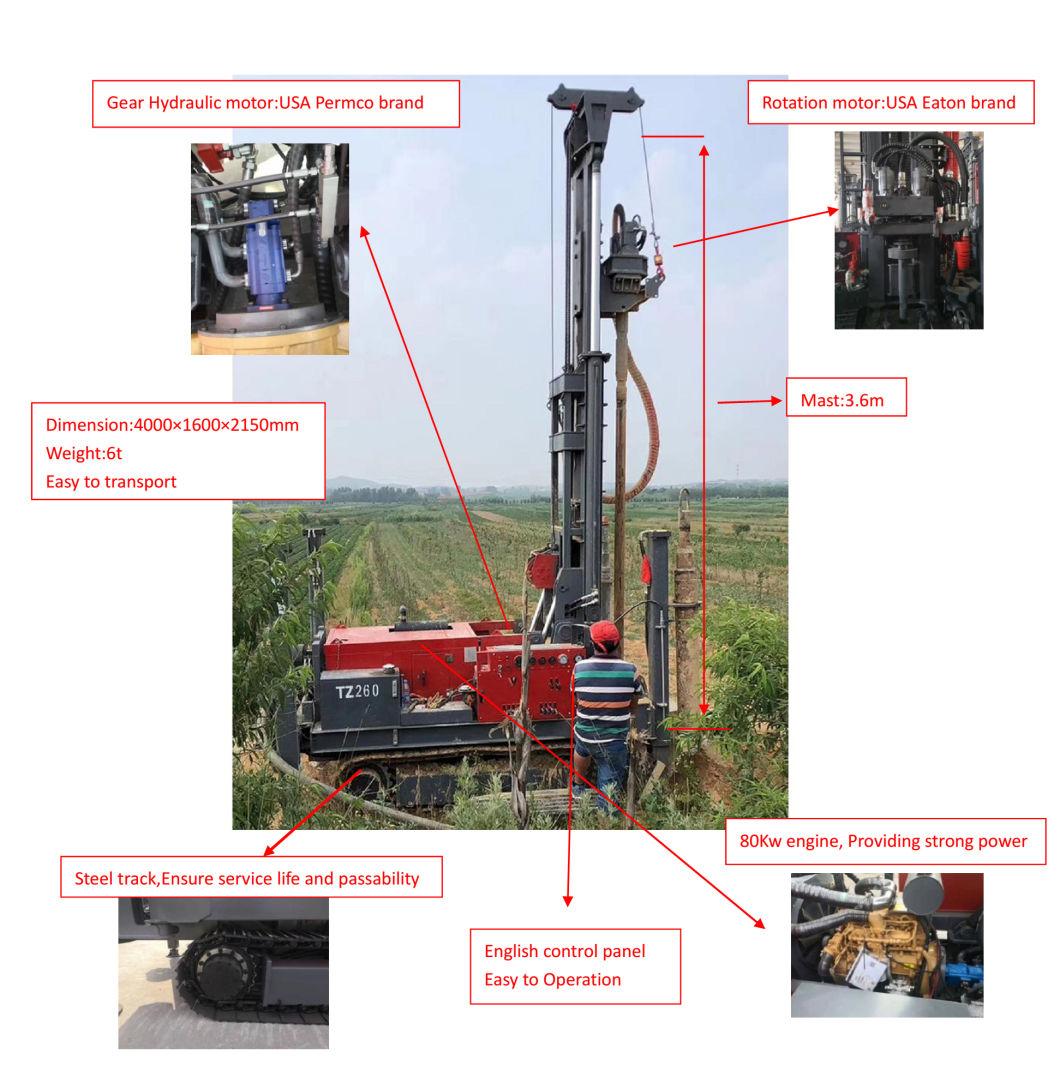

Our TZ series water well drill rig is uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency,Reasonable overall layout uses the tractor-mounted or all terrain chassis for the transportation with good maneuverability.very flexible in difficult roads,it can be widely used in many fields,such as resource exploration of hydrology wells,coal bed methane,shallow layer of shale gas,terrestrial heat,ect,and can also be used for coal-mine gas exploitation or salvage work.TZ series well drilling rig have been exported to many countries



The top-mounted driving head principal shaft have a great drift diameter,which is suitable for many kinds of construction work such as mud pump drilling,air drilling and air foal drilling,meeting the demands of well drilling in different terrain strata



Model	TZ-200	TZ-260	TZ-300
Max drilling depth	200	260m	300m
Drilling diameter	105-254mm	105-305mm	105-305mm
Adaptation condition	F=6-20	F=6-20	F=6-20
Recommendation Working pressure	1.2-3.5MPa	1.2-3.5MPa	1.2-3.5MPa
Recommendation air consumption	16-55m3/min	16-55m3/min	16-55m3/min
Drill Rod length	3m	3m	3/6m
Drill rod diameter	76/89mm	89/102mm	89/102mm
Maximum propulsion	4.5T	5T	5.5T
Maxumum lifting force	10T	12T	14T
Fast forwarding speed	60m/min	80m/min	60m/min
Fast lifting speed	30m/min	40m/min	30m/min
Maximum  Rotation speed	70/140r/min	70/140r/min	70/140r/min
Maxumum rotation torque	5000/2500Nm	6000/3000Nm	6500/3250Nm
Drilling speed	10-35m/h	10-35m/h	10-35m/h
Winch lifting force	1.1T	1.1T	1.1T
Working speed	2.5km/h	2.5km/h	2.5km/h
Grade ability	21	21	21
High leg stroke	1.5m	1.5m	1.5m
Dimension	4070x1500x2050mm	4390x1600x2220mm	5690x1700x2340mm
Drilling method	Air Drilling or  Mud pump drilling	Air Drilling or  Mud pump drilling	Air Drilling or  Mud pump drilling
Engine	58Kw	80Kw	80Kw
Total weight	5.3T	5.4T	7T

  Details determine quality

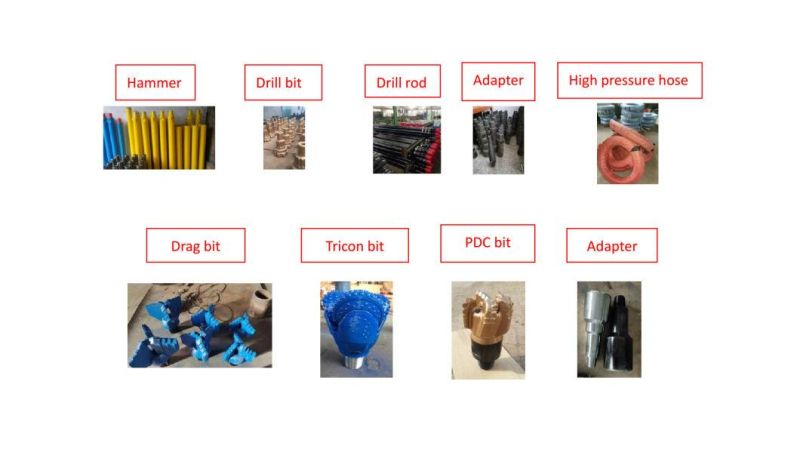

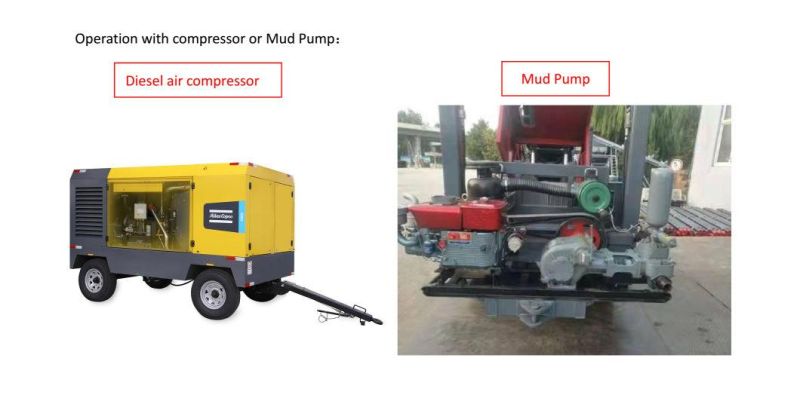

 You decide how to drilling,Compressor or Mud Pump Drilling Tools:

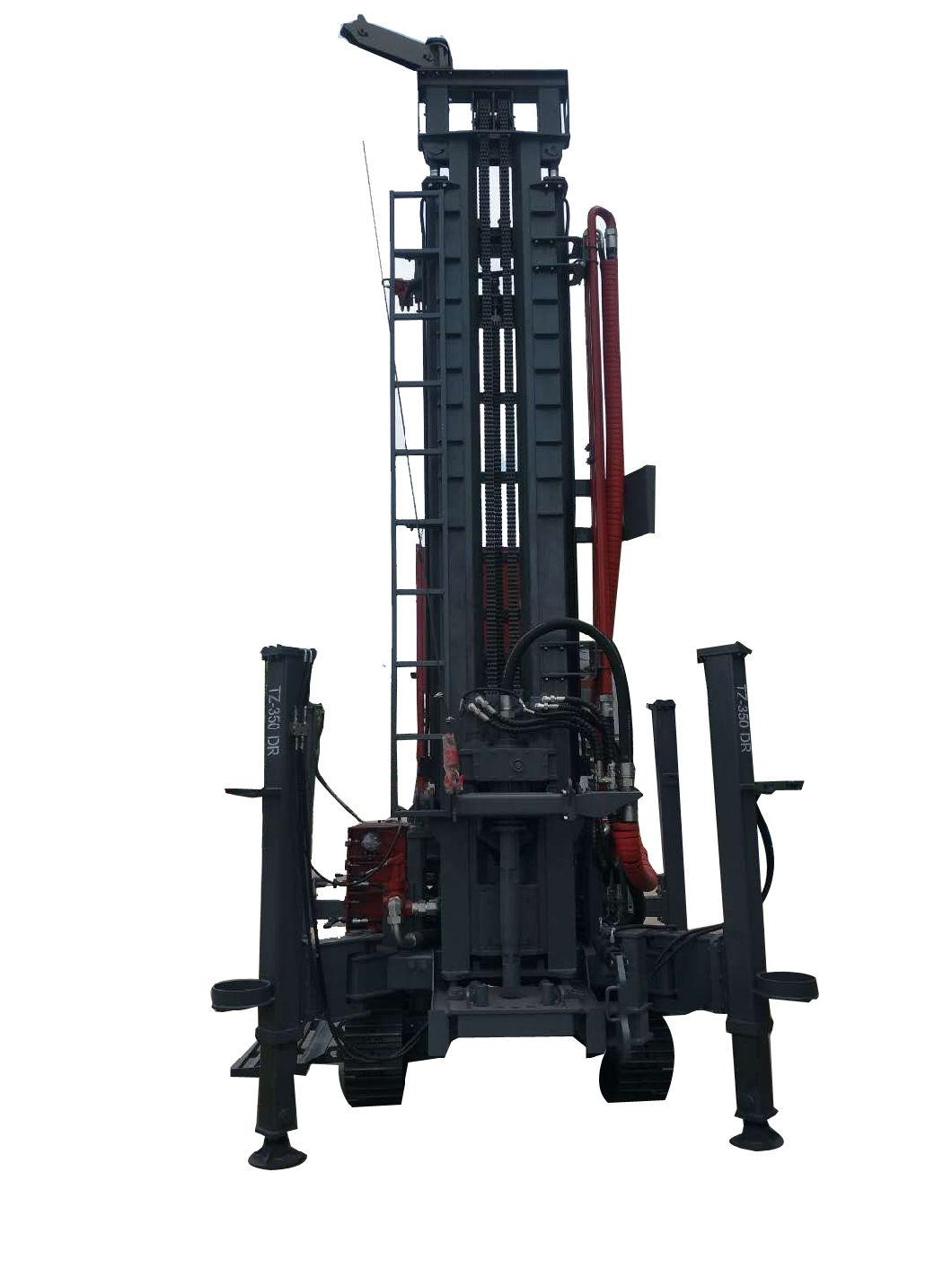

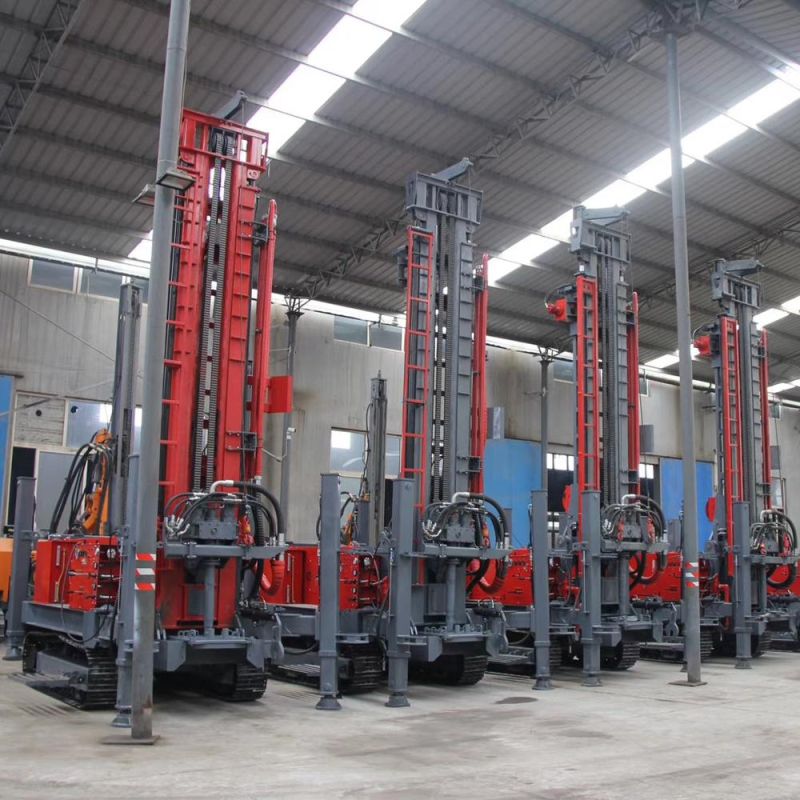

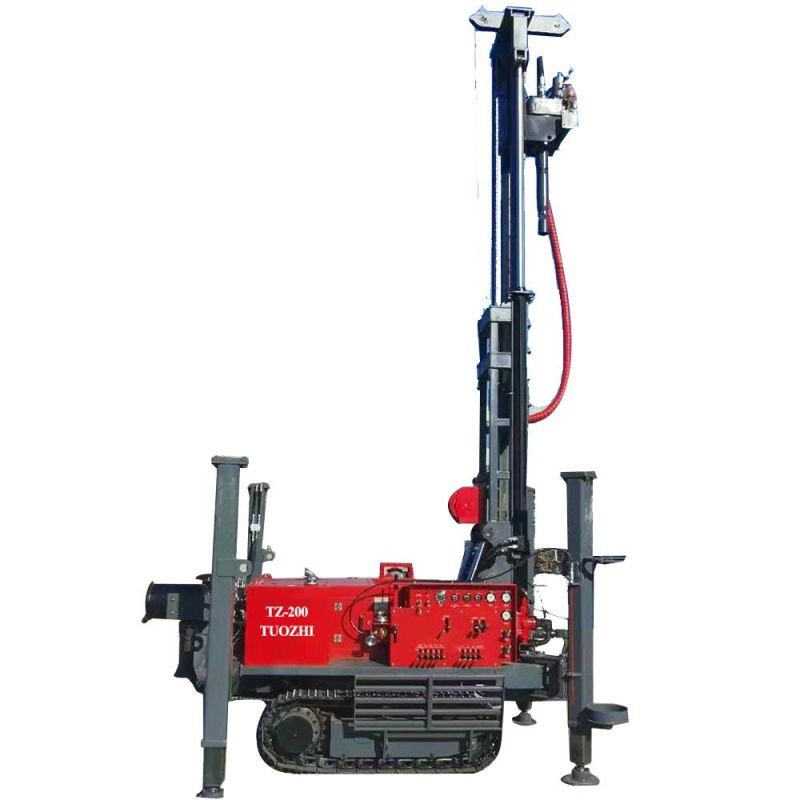

Products display:
