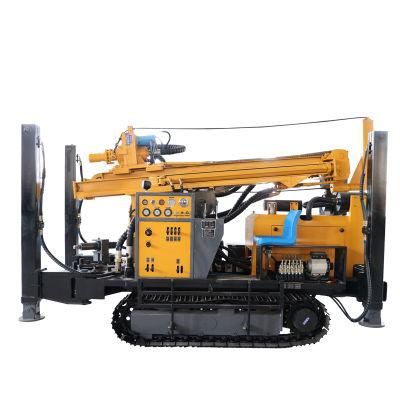

Powerful Water Well Drilling Machine
Shandong JK Machinery Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：140-350mm
- Drill Hole Depth：600m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
Base Info
- Model NO.：JK-DR 600
- Type：Crawler
- Usage：Water Well
- Voltage：24V
- Weight：12t
- Warranty：1 Year
- Power Type：Diesel
- Product Name：Water Well Drilling Rig
- Power：132kw
- Transport Package：40hc
- Specification：6000*2200*2850mm
- Trademark：SDJK
- Origin：Shandong
- HS Code：8430412100
- Production Capacity：100sets,Month
Description
The Main Parameters Model JK-DR600 Weight 12T Bore diameter 140-350mm Drilling depth 600m Stroke 6.6m Travelling speed 2.5km/h Gradeability 30% Power 132KW Rated pressure 1.7-3.5mpa Air consumption 17-35m³/min Drill rod diameter Φ102, Φ108 , Φ114 Drill rod length 1.5m 2.0m 3.0m 6.0m Elevating capacity 28T Swing speed 45-115rpm Swing torque 8500-11000N.M Dimensions 6000*2200*2850mm
1. The engine uses YUCHAI 132 KW turbocharged engine;
2. Walking Type: crawler mounted ,trailer mounted for choice.
3. Hydraulic oil pump:Parallel gearbox design separates the oil pump unit, the power supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;
4.Rotary head device:gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5.Drilling machine chassis:professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6.Lifting force:design composite tower, 6.6m long stroke, double cylinder lift capacity 28 ton.
7. Each rig is equipped with a relief valve to raise the boom to protect the cylinder and ensure work safety;
8. Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe last longer.
