600m Hydraulic Water Well Drilling Rig Manufacturer
Shandong JK Machinery Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：140-350mm
- Drill Hole Depth：600m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
Base Info
- Model NO.：JK-DR 600
- Type：Crawler
- Usage：Water Well
- Voltage：24V
- Weight：12t
- Warranty：1 Year
- Power Type：Diesel
- Product Name：Water Well Drilling Rig
- Power：132kw

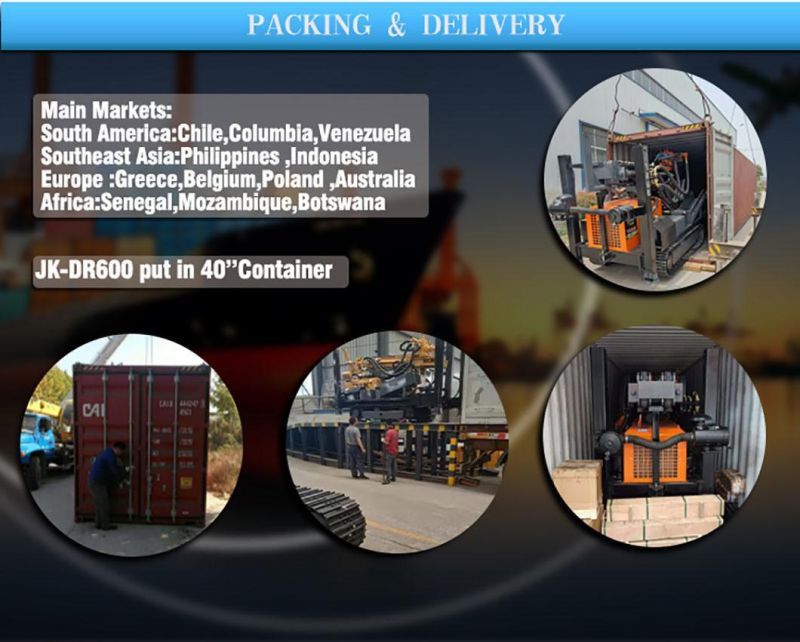

- Transport Package：40hc
- Specification：6000*2200*2850mm
- Trademark：SDJK
- Origin：Shandong
- HS Code：8430412100
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. JK-DR 600 Type Crawler Usage Water Well Voltage 24V Weight 12t Warranty 1 Year Power Type Diesel Product Name Water Well Drilling Rig Power 132kw Transport Package 40hc Specification 6000*2200*2850mm Trademark SDJK Origin Shandong HS Code 8430412100 Production Capacity 100sets/MonthProduct Description

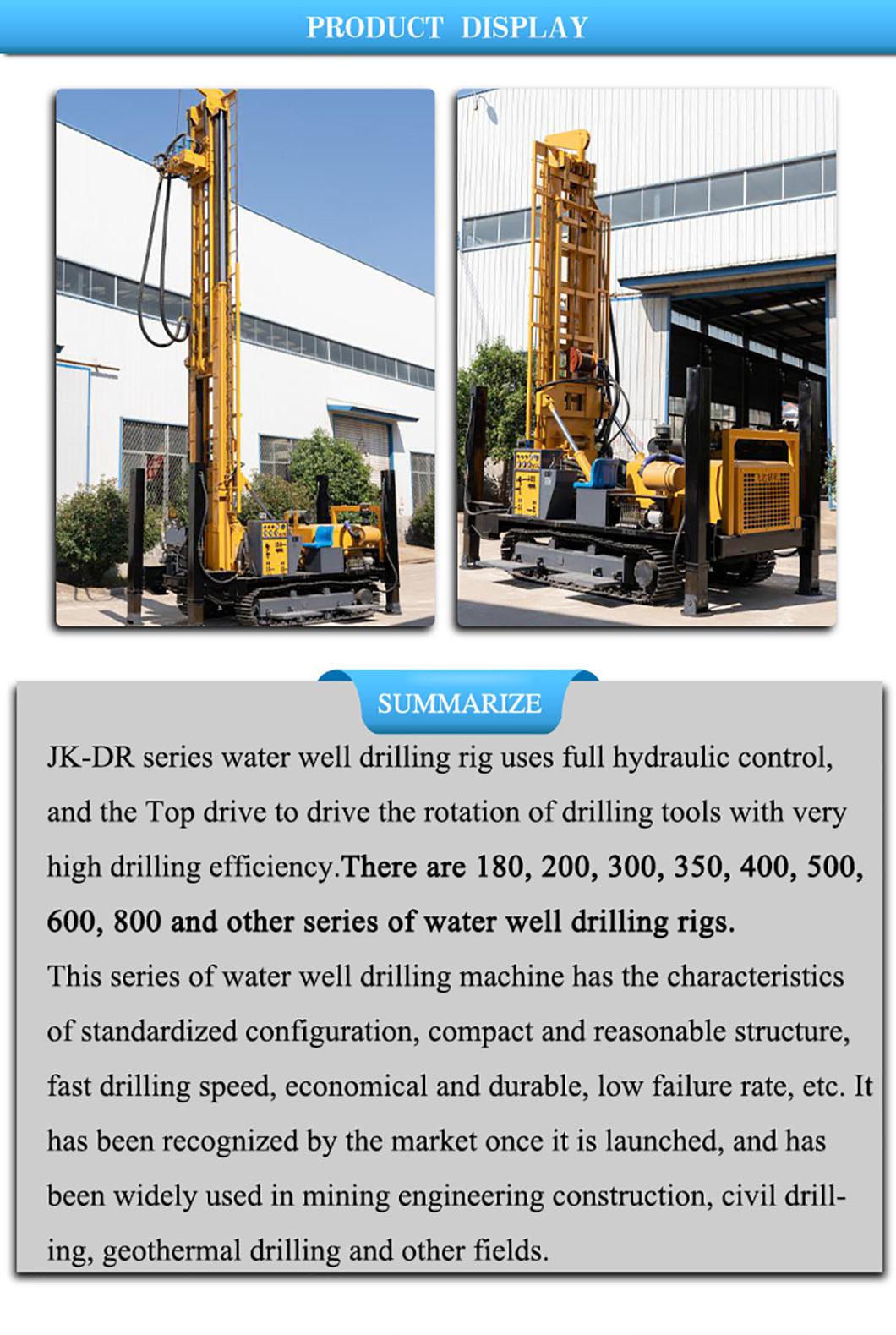

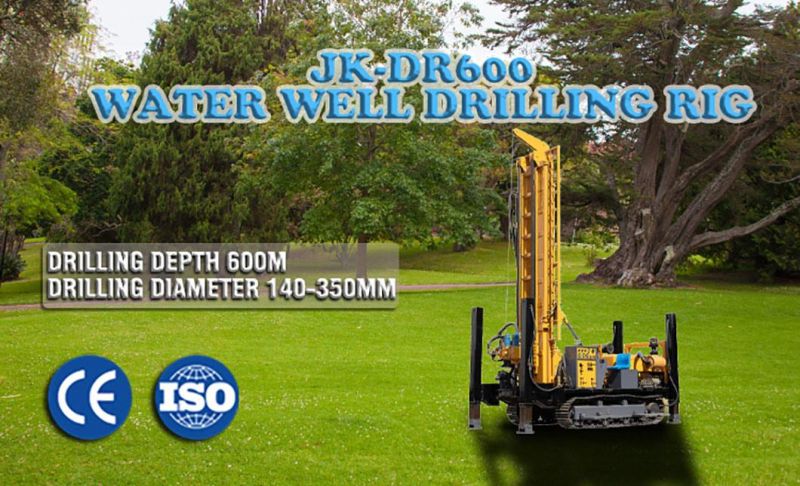

JK-DR600 Multifuncational Water Well Drilling Rig For Sale
| Model & Name | JK-DR600 |
| Weight | 12Ton |
| Dimensions(mm) | 6200*2200*2950mm |
| Power Oil | Diesel |
| Engine Model | YUCHAI |
| Rated Power | 132 kW |
| Travelling System | Steel Crawler |
| Drilling depth | 600m |
| Bore diameter | 140-350mm |
| Drive Head Stroke | 6.6m |
| Travelling speed | 2.5km/h |
| Gradeability | 30% |
| Rated pressure | 1.7-3.5 MPa |
| Air consumption | 17-42 m³/min |
| Drill rod diameter | Φ102 / Φ108/ Φ114 mm |
| Drill rod length | 1.5m, 2.0m, 3.0m, 6.0m |
| Elevating capacity | 28 Ton |
| Winch Elevating capacity | 3 Ton |
| Swing speed | 45-115rpm |
| Swing torque | 8500-11000 N.m |
1. The engine uses YUCHAI 132 KW turbocharged engine;
2. Walking Type: crawler mounted ,trailer mounted for choice.
3. Hydraulic oil pump:Parallel gearbox design separates the oil pump unit, the power supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;
4.Rotary head device:gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5.Drilling machine chassis:professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6.Lifting force:design composite tower, 6.6m long stroke, double cylinder lift capacity 28 ton.
7. Each rig is equipped with a relief valve to raise the boom to protect the cylinder and ensure work safety;
8. Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe last longer.
