Top Drive System (for short TDS) Spare Parts
Shandong Seaco Machinery Equipment Co., Ltd.- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：100-150mm
- Drill Hole Depth：>300m
- Bit Type：Diamond Bit
Base Info
- Model NO.：VARCO TDS-11
- Drilling Way：Rotary
- Name：Top Drive for Drilling Rig
- Application：for Oil Well
- Drilling Depth：7,000m(23,000FT)
- Rated Load Capacities：4,500kn(500t)
- Drilling Torque (Continuous, Max.)：54kn.M
- Rotary Speed：0 - 220rpm
- Rated Power of AC Induction Motor：350kw X 2
- Tilt Angle of Tilt Arm ( Max)：Forth 30" Back 55"
- Maximum Torque of Break out：80kn.M
- Working Pressure of Hydraulic System：16MPa
- Transport Package：Standard Export Packing
- Specification：xj350 xj450 xj550
- Trademark：SEACO
- Origin：China
- HS Code：84314310
Description

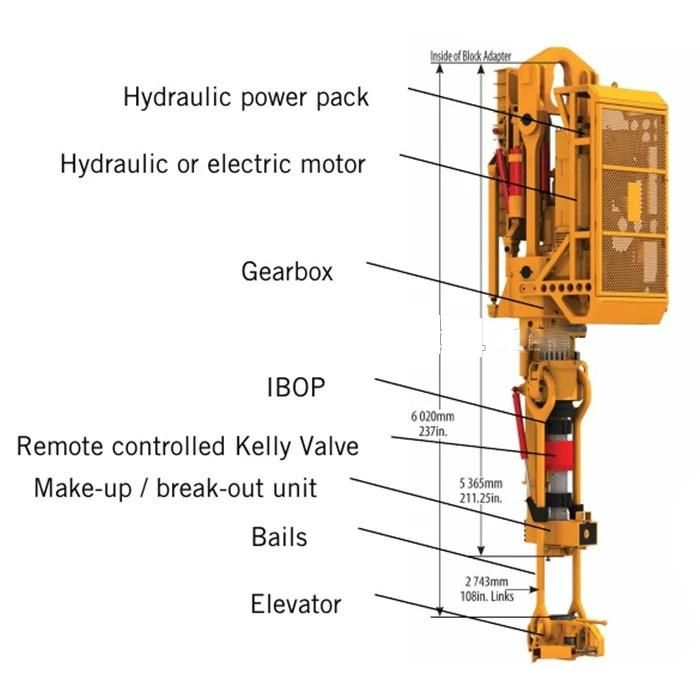

Technical specifications and parameters for Top Drive
Specification
250Ton
350Ton
500Ton
Nominal drilling depth (5 1/2" drill pipe)
4,000m(13,000ft)
5,000m(16,000ft)
7,000m(23,000ft)
Rated load capacities
2,250KN(250t))
3,150KN(350t)
4,500KN(500t)
Drilling torque (continuous, max.)
32KN.m
36KN.m
54KN.m
Rotary speed
0 - 180rpm
0 - 180rpm
0 - 220rpm
Rated power of AC induction motor
315 KW x 1
350KW x 1
350KW x 2
Tilt angle of tilt arm ( max)
Forth 30" Back 55"
Forth 30" Back 55"
Forth 30" Back 55"
Maximum torque of break out
50KN.m
65KN.m
80KN.m
Working pressure of hydraulic system
16MPa
16MPa
16MPa
Input voltage of driving cabinet
600VAC
600VAC
600VAC
Range of variable frequency
Rated 0 - 121Hz
Rated 0 - 121Hz
Rated 0 - 121Hz
Shift gears range of motor
0 - 2,400rpm
0 - 2,400rpm
0 - 2,400rpm
Drill pipe range
2 7/8" - 5 1/2"
2 7/8" - 5 1/2"
2 7/8" - 5 1/2"
Alarm Temperature of motor
220degree
220degree
Alarm Temperature of gear oil
75degree
75degree
Alarm Temperature of hydraulic oil
75degree
75degree
Transmission ratio
12.8:1
10.4:1
Shift gears range of motor
0 - 2,400rpm
0 - 2,400rpm
0 - 2,400rpm
Drill pipe range
2 7/8" - 5 1/2"
2 7/8" - 5 1/2"
2 7/8" - 5 1/2"
Alarm Temperature of motor
220degree
220degree
Alarm Temperature of gear oil
75degree
75degree
Alarm Temperature of hydraulic oil
75degree
75degree
Transmission ratio
12.8:1
10.4:1
Top Drive System (for short TDS) spare Parts
on
Product Description
