• Model NO.：DFQ-100
• Drilling Way：Impactor
• Type：DTH Drilling Rig
• Max. Drilling Depth：100m
• Drilling Diameter：105-150mm
• Rock Hardness：F=6~12
• Application：Water Well, Pile Construction, Boreholes
• Support Legs：Hydraulic, 800,1500mm Stroke
• Approved：SGS&BV
• Can Work with：Mud Pump or Air Compressor
• Mining Object：Water Well
• Usage：Water Well
• Power Type：Diesel
• Transport Package：Standard Export Packing
• Specification：100M DRILL RIG
• Trademark：DEFY
• Origin：China
• HS Code：8430490000
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. DFQ-100 Drilling Way Impactor Type DTH Drilling Rig Max. Drilling Depth 100m Drilling Diameter 105-150mm Rock Hardness F=6~12 Application Water Well, Pile Construction, Boreholes Support Legs Hydraulic, 800/1500mm Stroke Approved SGS&BV Can Work with Mud Pump or Air Compressor Mining Object Water Well Usage Water Well Power Type Diesel Transport Package Standard Export Packing Specification 100M DRILL RIG Trademark DEFY Origin China HS Code 8430490000 Production Capacity 200 Sets/Month

Product Description

Model DFQ-100 Trailer Mounted Water Well Drilling Rig Machine
*100m drill depth
*DTH drill rools,Fastest drilling rig for Rocky areas
*Top drive,Fully Hydraulic drilling
*Can work with both Mud pump and Air compressor

Features of DFQ-100 drilling machine with Crawler
1. Fully hydraulic controlling system,highly automated,high working efficiency,saving labor force.
2. Powerful cylinder,strong propulsion and lifting force for drilling deep holes.
3. Innovative embedded idler pulley structure,carriage stroke is increased to handle the drill pipes more easily.
4. Centralized control of the hydraulic control console, convenient to operate.
5. Chassis can be wheels,crawler or truck,as per your need.
6. Hammer rotary drilling method,making it more easily and efficiently to drill Rock ground.
7. There are Wheels type or Crawler type for your choice.

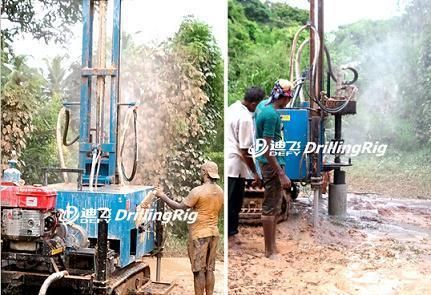

DFQ-100 in Sri Lanka Working site


III. Zhengzhou DEFY Service
Zhengzhou DEFY is proud to offer support through the entire process, including engineering, manufacturing, installation and commissioning. In addition, we provide drilling life-cycle services to our customers, including spare parts, technical support, and professional rig training in our factory.

No.	Item	DFQ-100
1	Drilling caliber	Φ105-150 mm
2	Max. drilling depth	100m
3	Work pressure	1.05-2.0 MPa
4	Gas consumption	15-18 m³/min
5	Apply to rock hardness	f=6-12
6	Power	24Kw/2300rpm
7	Weight(main machine)	2200 Kg
8	Dimension(main machine)	3200*1770*2050mm
