• Model NO.：DFQ-100WA
• Type：Rotary Drilling Rig
• Power：30kw
• Drilling Hole Diameter：105-180mm
• Stratum：Soil, Gravel, Weathered Stone, Concrete
• Usage：Ore, Water Well, Coal, Farm Irrigation
• Power Type：Diesel
• Transport Package：as Requirement
• Specification：100m
• Trademark：DEFY
• Origin：China Mainland
• HS Code：84304900
• Production Capacity：50sets,Month

Basic Info.

Model NO. DFQ-100WA Type Rotary Drilling Rig Power 30kw Drilling Hole Diameter 105-180mm Stratum Soil, Gravel, Weathered Stone, Concrete Usage Ore, Water Well, Coal, Farm Irrigation Power Type Diesel Transport Package as Requirement Specification 100m Trademark DEFY Origin China Mainland HS Code 84304900 Production Capacity 50sets/Month

Product Description

Small wheel type mini air compressor drilling rig machineApplication
It is widely used for water well drilling, geothermal air conditioning project and other boreholes, especially applicable to mountain area and rock formation water engineering.

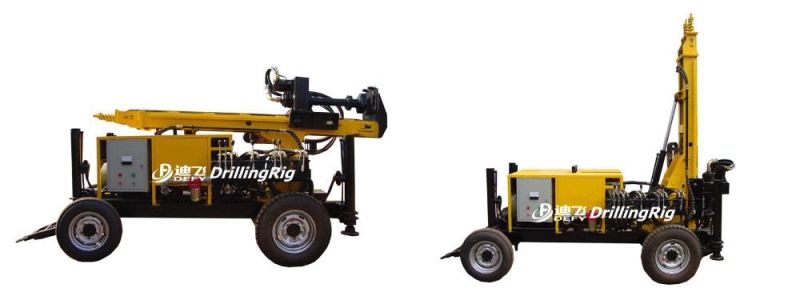

Model DFQ-100WA Trailer Mounted Water Well Drilling Rig
*100m drill depth
*DTH drill rools, Fastest drilling rig for Rocky areas
*Top drive, Fully Hydraulic drilling
*Can work with both Mud pump and Air compressor

General Description of DFQ-100WA Drilling Machine

Water well drilling rig is a light-weight, high efficiency, tractor mounted drilling machine. It can be applied into courtyard, indoor, greenhouse, underground car park, bridge opening, duct, tunnel and other strictly required working sites. This machine can be also used in water well drilling, irrigation wells, geothermal heat project and others. Especially suitable for the high efficiency required concentrated photovoltaic pole hole working.

This machine can drill in different geothermal conditions by air compressor and mud pump. The drill tower lifting, drill pipes installation and uninstallation, rotary, support legs, walking and other movements by fully hydraulic, which could decrease the labor intensity and increase the quality and efficiency of project.

 Features

1. suitable land condition is mainly very hard rock, like marble, granite, limestone.2. Equipped with special DTH hammer and DTH bit, efficient in rocky area.3. The rotary part uses high efficiency hydraulic motor, dual driver support points, small volume, large torque. 4. Air compressor equipped with high pressure air lubricator to prolong the DTH hammer's lifetime.5. Special air seal structure, abrasion compensated owned, well performance and long using time.

Technical Parameter

No.	Item	DFQ-100WA
1	Drilling caliber	Φ105-180mm
2	Max. drilling depth	100m
3	Diameter of drill pipe	Φ60,Φ73
4	Unit Length of drill pipe	1000mm
5	Work pressure	1.2-2.0 MPa
6	Gas consumption	12~20 m³/min
7	Impacter	DHD340350
8	Apply to rock hardness	f=6-12
9	Power	30Kw/1480rpm
10	Grade ability	25°
11	Walking speed	0~20 Km/h
12	Ground clearance	250mm
13	Leg cylinder stroke	600 mm
14	System pressure	20MPa
15	Propulsion	7.5 tonf
16	Lifting force	12 tonf
17	Speed of spindle	Fast  105 rpm Slow 65 rpm
18	Rotary torque	1600N.m
19	Weight	1700 Kg
20	Dimension	2.9×1.5×1.65m

Related products

Model	Movement	Borehole Diameter	Drilling Depth
DFQ-100	Crawler	105~150mm	100m
DFQ-100W	Wheel trailer	105~150mm	100m
DFQ-150	Crawler	105~203mm	150m
DFQ-150W	Wheel trailer	105~203mm	150m
DFQ-200	Crawler	105~203mm	200m
DFQ-200W	Wheel trailer	105~203mm	200m
DFQ-250	Crawler	105~254mm	250m
DFQ-300	Crawler	105~305mm	300m
DFQ-400	Crawler	105~400mm	400m
