New Drill Tower Portable Small Water Well Drilling Rig
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.- Condition:New
- Motor:AC Motor
- Drill Hole Diameter:100-150mm
- Drill Hole Depth:30-50m
- Bit Type:Diamond Bit
- Drilling Way:Rotary
Base Info
- Model NO.:XY-200F
- Type:Drilling Machine
- Model:Xy-200f
- Max. Drill Depth (M):200
- Dia. of Drill Rod(mm):50, 60
- Trailer:Video, Operation Manual
- Certificate:BV&SGS
- Operation:1 Person to Operate
- Mining Object:Water Well
- Usage:Water Well
- Power Type:Diesel
- Transport Package:Wooden Case
- Specification:BV&SGS
- Trademark:DEFY
- Origin:China(Mainland)
- HS Code:8430490000
- Production Capacity:200PC,Month
Description
1.Overall parameters
Drilling depth
200m
Maximum open hole caliber
400mm
End hole caliber
75mm
Diameter of drill rod
50mm
Drilling angle
90~75
Weight(not include power)
760kg
Dimension
2750*950*1600mm
2. Vertical shaft
Rotating speed
71,142, ,310,,620r/min
Feeding stroke
450mm
3.Hoist
Max. single line hoisting capacity
2400Kg
Diameter of wire rope
13mm
Volume of winding drum
35m
Hug floodgate caliber
230mm
Hug floodgate belt width
70mm
4.Mud pump
Type
Horizontal single urn twin-action
Rate of flow
180L/min
MAX. pressure
1.5MPa
Working pressure
0.7MPa
Diameter of water inlet tube
50mm
Diameter of water outlet tube
45mm
5.Power
Diesel engine
22HP, 2200r/min
Advantages:
1. Power supply
Power can be driven by electrical motor or diesel engine.
2. Compact structure
Vertical shaft box, drill tower, mud pump, diesel engine are in one base. No need to dismantle when using.
3. Mobile base

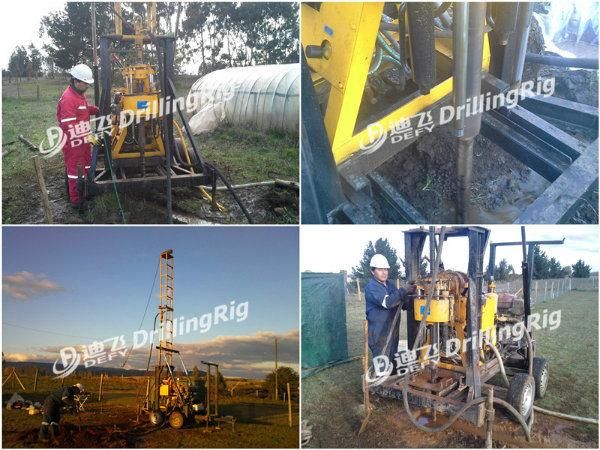

It can be mounted on trailer, tractor, truck, crawler or cars for easy transportation, very suitable for outdoor working.
4. Latest design
Hydraulic type, vertical shaft gyrator, flexible speed adjusting range.
5. For different stratums
Effective in diamond drilling, hard rock, soil, etc.
6. BW-160 mud pump
Independent mud pump, with large water flushing rate.Disassemble drill tower;
Small in size.
Easy to transport.
