2022 Hot Sale DTH Hammer Drilling Rig for Blast Holes

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
  • Drilling Depth：30m
  • Borehole Diameter：80~130mm
  • Application：Blast Hole, Small Well, Road Construction
  • Efficiency：20m,Hour
  • Rock Hardness：F=6~20
  • Air Compressor：10 MPa

Base Info

  • Model NO.：DFD-110Z
  • Drilling Angle：up and Down 100°; Left and Right 55°
  • Power：28~46kw
  • Dimension：4400X1950X2150mm
  • Gas Consumption：7~15m3,Min
  • Transport Package：Standard Export Packing
  • Specification：ISO; CE; BV; SGS
  • Trademark：DEFY
  • Origin：Henan, China
  • HS Code：8430490000
  • Production Capacity：100 Sets Per Month

Description

Basic Info.

Model NO. DFD-110Z Drilling Angle up and Down 100°; Left and Right 55° Power 28~46kw Dimension 4400X1950X2150mm Gas Consumption 7~15m3/Min Transport Package Standard Export Packing Specification ISO; CE; BV; SGS Trademark DEFY Origin Henan, China HS Code 8430490000 Production Capacity 100 Sets Per Month

Product Description

    DFD-110Z DTH Hammer Drilling Rig for Blast Holes I.General Description
DFD-110Z hydraulic DTH drilling machine is widely used in open mine exploit, irrigation well,
power station construction, road construction and other blast hole projects.

1. Has the newest hydraulic technique.
2. Low air consumption, large rotary torque, compact structure, move around flexibly.
3. Added with assistant drill pipes groove.
4. Working with air compressor and DTH hammer for high efficiency drilling.
5. Drilling with angles to satisfy different project needs.

II.Technical Parameter
Weight(Kg) 3100
Dimension(mm) 4400×1950×2150
Drill caliber(mm) 80~130
Drill depth(m) 30
Walk speed(Km/h) 2
Climb capacity(°) 30
Ground clearance(mm) 300
Working pressure(MPa) 0.7~1.6
Gas consumption(m³/min) 7 ~15
Stroke(mm) 2000
Sliding length(mm) 860
Drill tower up and down angle(°) Total 100
Drill tower left and right angle(°) Left 20 right 35
Power(Kw) 28/33/46
Hardness application F=6~20

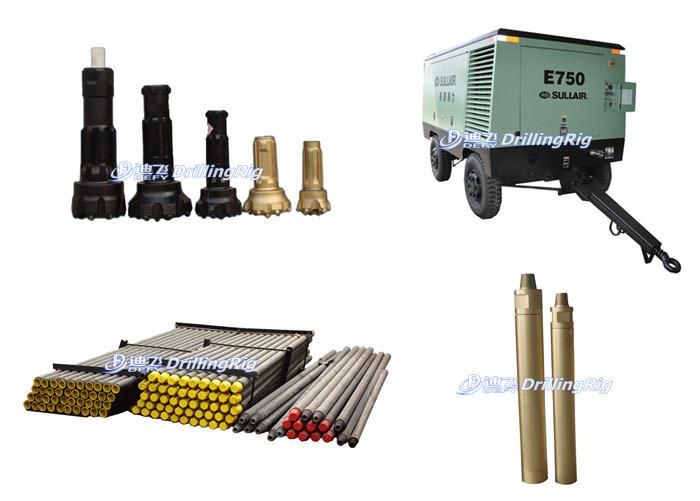

Drilling Accessories at Factory-price all Year Around:
2022 Hot Sale DTH Hammer Drilling Rig for Blast Holes

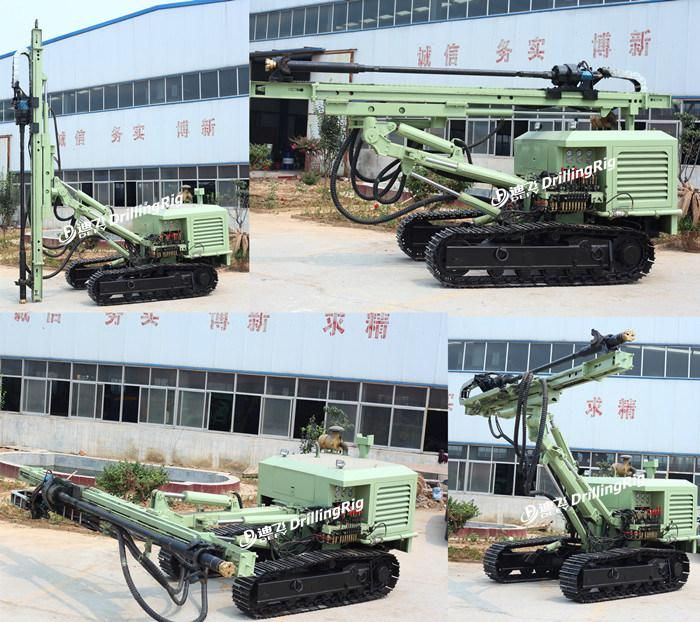

Drilling Vertically and Horizontally or with Angle:
2022 Hot Sale DTH Hammer Drilling Rig for Blast Holes

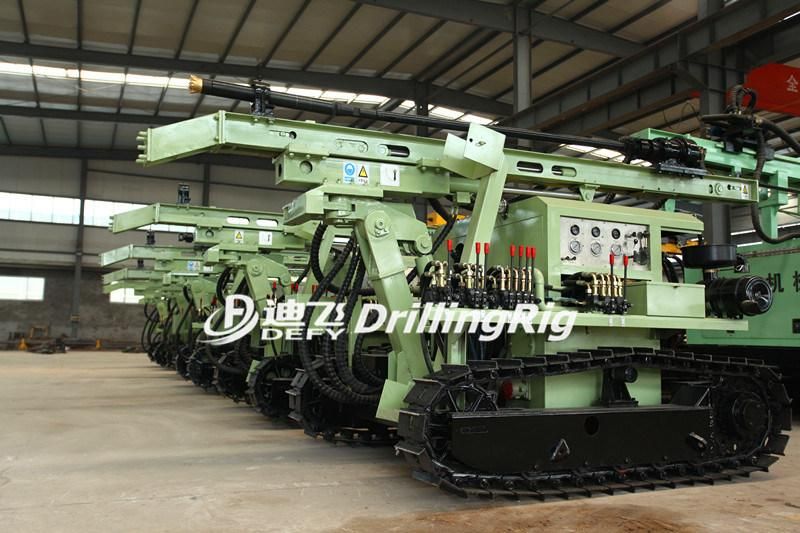

Factory Show:
2022 Hot Sale DTH Hammer Drilling Rig for Blast Holes
Customer Show:
2022 Hot Sale DTH Hammer Drilling Rig for Blast Holes
Contact Us for Best Quotation and Details:
Sales Manager: Ms. Mia Zhang


Our Service:
1. Free tranning in factory; Overseas technic support;
2. One year quality warranty;
3. Delivery time usually within 10 days;
4. Detailed operation manual or DVD to guide operation;
5. Accessories for replacement at anytime;
6. Shipment from China to your country.
