• Model NO.：DFQ-200
• Type：Crawler
• Model：Dfq-200
• Drilling Caliber：105-203mm
• Max. Drilling Depth：200m
• Work Pressure：1.05-2.0 MPa
• Apply to Rock Hardness：F=6-12
• Power：50kw,2200rpm
• Rotary Torque：2200n.M
• Transport Package：Wooden Case
• Specification：BV, SGS
• Trademark：DEFY
• Origin：Henan, China
• HS Code：8430490000
• Production Capacity：100set,Month

Basic Info.

Model NO. DFQ-200 Type Crawler Model Dfq-200 Drilling Caliber 105-203mm Max. Drilling Depth 200m Work Pressure 1.05-2.0 MPa Apply to Rock Hardness F=6-12 Power 50kw/2200rpm Rotary Torque 2200n.M Transport Package Wooden Case Specification BV, SGS Trademark DEFY Origin Henan, China HS Code 8430490000 Production Capacity 100set/Month

Product Description

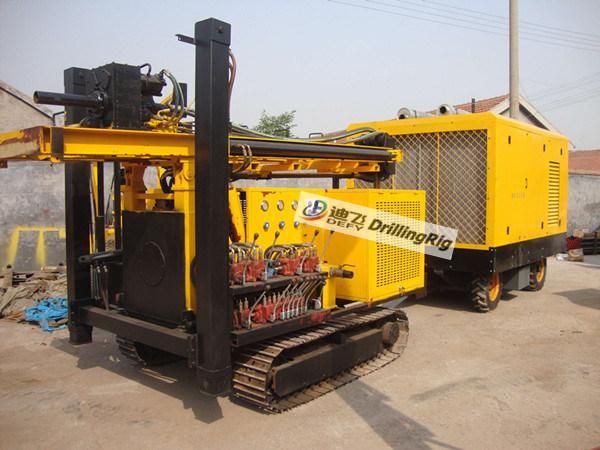

DEFY DFQ-200 DTH Hammer Drilling Machine for Water Used

I. General Description
DFQ-200 water drilling machine is fully-hydraulic, air-operated drilling machine with lightweight, high efficiency and multi-functions.

II. Application
It is widely used for water well drilling, geothermal air-conditioning project and other boreholes, especially applicable to mountain area and rock formation water engineering.
Especially solve the problems to drill very hard rocks.

III. Specification

No.	Item	Specification
1	Drilling caliber	Φ105-203mm
2	Max. drilling depth	200m
3	Unit Length of drill pipe	3000mm
4	Work pressure	1.05-2.0 MPa
5	Gas consumption	10~24 m³/min
6	Impacter	DHD350360
7	Apply to rock hardness	f=6-12
8	Power	50Kw/2200rpm
9	System pressure	20MPa
10	Propulsion	5.0 tonf
11	Lifting force	8.5 tonf
12	Weight	5200 Kg
13	Dimension	3700*1660*2350 mm

IV. Advantages
1. It can work on different geological stratum. Drilling Depth is up to 200m, caliber Φ 105-203mm.
2. It adopts new type full-hydro technology, with two big torque hydraulic motor. Rotary torque is up to 1050N. M, speed can be 135 rpm. Ten times more than traditional drilling rig.
3. Two large high pressure cylinders offer 8.5ton lifting force, ensuring the stable propelling force and lifting force.
4. Multi-cylinder water cooling engine offer rich power for hydraulic system, ensuring high efficient working.
5. The advanced new embedded guide wheel mechanism increases the carriage stroke(it can lift up to 4 meters drill pipe), which greatly facilitates users to unload drill pipe and casing.
6. Hydraulic control panel is easy to operate.
7. Crawler mounted mobile base can work in different stratum. High speed and protect the road.

Other models for choice:

Model	Movement	Borehole Diameter	Drilling Depth
DFQ-100	Crawler	105~150mm	100m
DFQ-100W	Wheel trailer	105~150mm	100m
DFQ-150	Crawler	105~203mm	150m
DFQ-150W	Wheel trailer	105~203mm	150m
DFQ-200	Crawler	105~203mm	200m
DFQ-200W	Wheel trailer	105~203mm	200m
DFQ-250	Crawler	105~254mm	250m
DFQ-300	Crawler	115~305mm	300m
DFQ-400	Crawler	115~400mm	400m
