100m Portable Air Compressor Track Drill Rig for Sale
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.- Certification：CE
- Condition：New
- Drill Hole Diameter：150-200mm
- Drill Hole Depth：70-100m
- Bit Type：DTH Bit
- Drilling Way：Rotary
Base Info
- Model NO.：DFQ-100
- Type：Rotary Drilling Rig
- Usage：Water Well
- Power Type：Diesel
- Transport Package：20′ Container
- Trademark：DEFY
- Origin：China(Henan)
- HS Code：8430490000
- Production Capacity：200set,Month
Description
Basic Info.
Model NO. DFQ-100 Type Rotary Drilling Rig Usage Water Well Power Type Diesel Transport Package 20′ Container Trademark DEFY Origin China(Henan) HS Code 8430490000 Production Capacity 200set/MonthProduct Description
100m Portable Air Compressor Track Drill Rig for SaleBrief introduction:
100m Portable Air Compressor Track Drill Rig for Sale is a kind of light weight, high efficiency and multi-function drilling equipment, it is suitable for drilling water wells, agricultural irrigation well, geothermal air-conditioning hole and other uses, especially for water engineering in mountainous and rock areas. It is much more efficient than the traditional rotary drilling rigs ,can create very considerable economic benefit for users. DFQ series drilling rig solves the problems to drill very hard rocks, gravel, pebble stratum that the traditional drilling rigs are difficult to drill, DFQ series can work efficiently under all kinds of geological structure.
Specification:
| No. | Item | DFQ-100 |
| 1 | Drilling caliber | Φ105-150 mm |
| 2 | Max. drilling depth | 100m |
| 3 | Diameter of drill pipe | Φ60, Φ63.5 |
| 4 | Work pressure | 1.05-2.0 MPa |
| 5 | Gas consumption | 15-18 m³/min |
| 6 | Impacter | DHD340350 |
| 7 | Apply to rock hardness | f=6-12 |
| 8 | Power | 24Kw/2300rpm |
| 9 | Propulsion | 5.0tonf |
| 10 | Lifting force | 8.5tonf |
| 11 | Speed of spindle | Fast 135 rpm Slow 91 rpm |
| 12 | Rotary torque | 1050N.m |

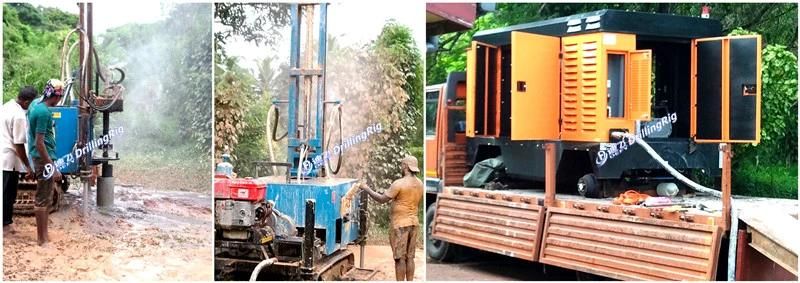

DFQ-100 Drilling Rig Working in Sri Lanka:
Drilling Rig EXPO around the world:
