• Model NO.：DFQ-150W
• Application：Hard Rock, Water Well Drilling Rig
• Color：Yellow, Blue
• Work Pressure：1.05-2.0 MPa
• System：Hydraulic Control
• Feature：Working with DTH Hammer and Bits
• Transport Package：Standard Container
• Specification：3500X1770X2300mm
• Trademark：DEFY
• Origin：Henan, China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. DFQ-150W Application Hard Rock, Water Well Drilling Rig Color Yellow, Blue Work Pressure 1.05-2.0 MPa System Hydraulic Control Feature Working with DTH Hammer and Bits Transport Package Standard Container Specification 3500X1770X2300mm Trademark DEFY Origin Henan, China Production Capacity 100 Sets Per Month

Product Description

Mobile dth hammer stone drilling rig machine price

General Description

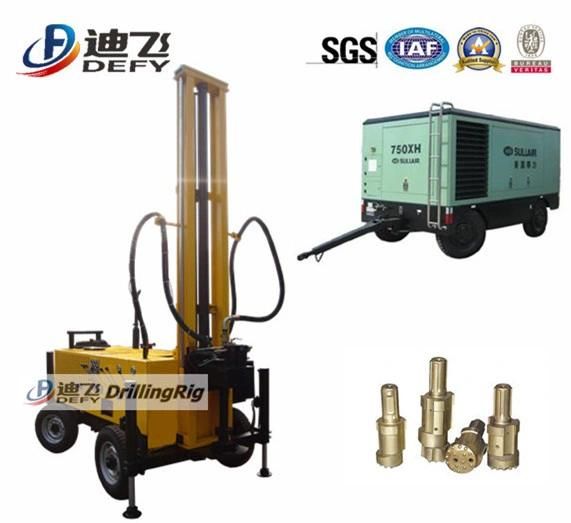

DFQ-150W drilling rig is a lightweight, high efficiency and multi-function drilling equipment,it adopts wheel trailer, can be hauled by tractor or cars, easy to transport,convenient and quick. It adopts to two kinds of working way---with mud pump or air compressor, strong applicability. It is widely used for water well drilling,geothermal air-conditioning project and other boreholes, especially applicable to mountain area and rock formation water engineering.

Much higher efficient than the traditional rotary drill rigs, creating the considerable economic benefit for users. Especially solve the problems to drill very hard rocks that the traditional rotary drilling rig meet, our DFQ-150W is able to work efficiently under all kinds of geological conditions.

Product Parameters


No.	Item	Parameter
1	Drilling caliber	Φ105-203mm
2	Max. drilling depth	150m
3	Diameter of drill pipe	Φ73,Φ76
4	Unit Length of drill pipe	2000mm
5	Work pressure	1.05-2.0 MPa
6	Gas consumption	15~24 m³/min
7	Impacter	DHD350360
8	Impacting frequency	1200-1500Hz
9	Apply to rock hardness	f=6-12
10	Power	44Kw/2000rpm
11	Ground clearance	210mm
12	Leg cylinder stroke	600 mm
13	System pressure	20MPa
14	Propulsion	5.5 tonf
15	Lifting force	10 tonf
16	Speed of spindle	Fast 120 rpm     Slow 85 rpm
17	Rotary torque	2000N.m
18	Weight	2800 Kg
19	Dimension	L3500×W1770×H2300mm

Customer Visit


 Our Service
1. Provide factory cost accessories all year

2. Engineers are available to service machine overseas or free training in factory

3. Online service 24hours*7 days

4. 12 months quality warranty for main body

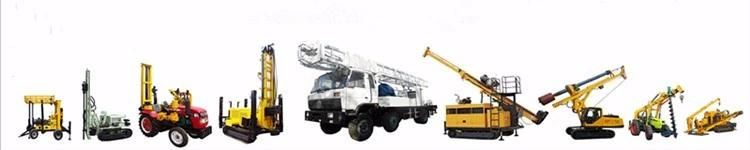

Rich Product Series

For all products, please visit the website:

https://defydrillingrig.en.made-in-china.com/product-list-1.html

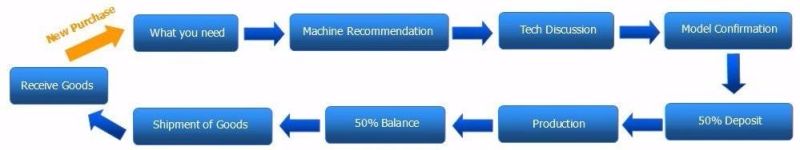

 How To Buy
