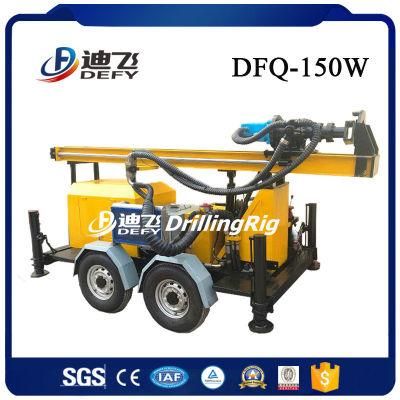

100-200m Portable Borehole Drilling Machine / Tractor Mounted Drilling Rig for Sale
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.- After-sales Service：7*24 Online Service
- Warranty：1 Year After The Machine Leaves Factory
- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：250-300mm
Base Info
- Model NO.：XY-200T
- Drill Hole Depth：150-200m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Power：22HP or 15kw
- Mud Pump：Bw-160
- Weight：3850kg
- Operation：Manual and VCD
- Complete Set：with All Necessary Accessories
- Max Depth：200m
- Hole Dia.：75-400mm
- Application：Water Well, Coring, etc.
- Transport Package：Wooden Package
- Specification：XY-200T
- Trademark：DEFY
- Origin：China
- HS Code：84304900
- Production Capacity：50 Set Per Month
Description
1.Overall parameters
Drilling depth
200m
Maximum open hole caliber
400mm
End hole caliber
75mm
Diameter of drill rod
50mm
Drilling angle
90~75
Weight(not include power)
760kg
Dimension
2750*950*1600mm
2. Vertical shaft
Rotating speed
71,142, ,310,,620r/min
Feeding stroke
450mm
3.Hoist
Max. single line hoisting capacity
2400Kg
Diameter of wire rope
13mm
Volume of winding drum
35m
Hug floodgate caliber
230mm
Hug floodgate belt width
70mm
4.Mud pump
Type
Horizontal single urn twin-action
Rate of flow
180L/min
MAX. pressure
1.5MPa
Working pressure
0.7MPa
Diameter of water inlet tube
50mm
Diameter of water outlet tube
45mm
5.Power
Diesel engine
22HP, 2200r/min
Our service
Delivery time : depends on the quantity, usually it is 10 working days.
Quality control : we have QC department, before shipping, goods will be strictly checked.
Tech support :
- 24 hours * 7 days online pre & after sale service ;
- Factory site training or engineers go to overseas to train the workers ;
- Manual and DVD operation video.
Spear parts: offer spear parts all year around at factory price.
Sales Manager: Debbie Liu
