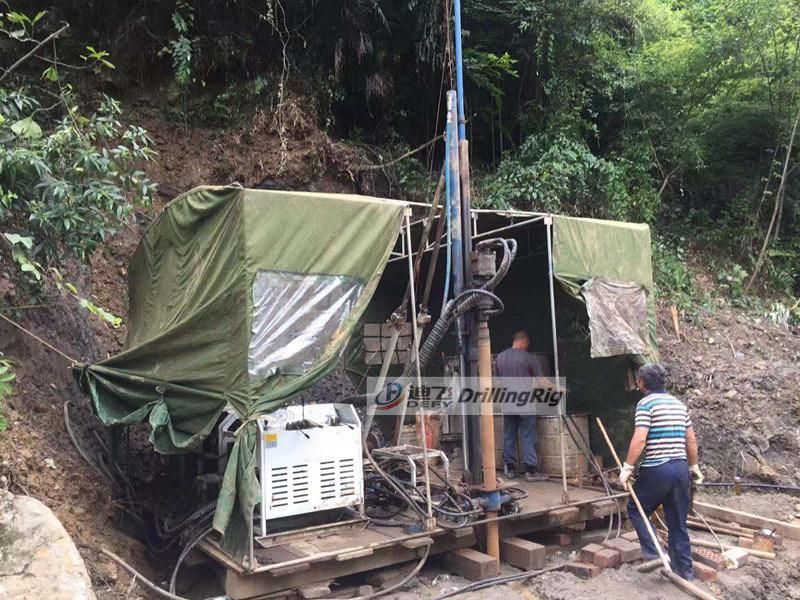

Dfn-180 Fully Hydraulic Portable Drilling Rig for Sale

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
  • After-sales Service：7*24 Online Service
  • Certification：ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：<100mm
  • Drill Hole Depth：150-200m

Base Info

  • Model NO.：DFN-180
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Drilling Tools：Htw, Ntw, Btw Size
  • Htw：200m
  • Ntw：100m
  • Btw：40m
  • Power：24.5kw
  • Lifting Force：10000 N
  • Transport Package：China Standard
  • Trademark：DEFY
  • Origin：China

Description

Promery moverEngine modelKubota line 3 cylinders, turbo charged
diesel engineRated output24.5KWRotary speed3000RPMFuel tank capacity24LHydraulic systemHydraulic typeMultiple pump circulationControl panelMulti-circlation pressure display,
intergrated panelCooling methodWater coolingSystem pressure21MPaHydraulic oil tank capacity30LRotate unitDriving typeTop drivingRotate speed50-1300RPM continue adjustableOutput torque1243 N.M max.Feeding unitAdjust rang of feeding frame angle65-90°(0-90°)Cylinder feeding stroke1.3mPulling force
Single/double cylinder4t/8tThrust force
Single/double cylinder2.1t/4.2tFlash circulation systemMud pump driving typeHydraulic drivingMax. Rated flow rate120L/minMax. Rated output pressure2MPaFoot clampHold methodHydraulic clampDriving typehydraulicMax. opening114mmWireline hoistDriving typehydraulicCable diameter5mmDrump capacity250mLifting force10000N max.Line speed150m/min max.Dfn-180 Fully Hydraulic Portable Drilling Rig for Sale
