Small 22m Diesel Portable Rotary Drilling Rig Machine Ycr60d

Newindu Construction Engineering (Shanghai) Co., Ltd.
  • After-sales Service：1 Year Warranty
  • Warranty：1 Year Warranty
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：>300mm

Base Info

  • Model NO.：YCR60D
  • Drill Hole Depth：>300m
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Transport Package：Nude Packing
  • Specification：6010*2600*3353mm
  • Trademark：NEWINDU
  • Origin：China
  • Production Capacity：300pieces,Year

Description

item)(Parameters)(Chasis)Engine typeQSF3.8-115/ Power/ revolution86kW/2200rpm()Deployment speed (margin)2600mmTrack shoe width600mmTraction104KN(Power head)The maximum out torque60kN·mPower head revolution0~35rpmThe maximum pressure increased55kNThe maximum pullout force80kNPressurizing oil cylinder stroke1500mm(Winch)(Main winch)Lifting force of the first layer70kNThe maximum lifting speed59m/minSteel wire diameter∅18mmAuxiliary winchLifting force of the first layer15kNThe maximum lifting speed50m/minSteel wire diameter∅12mm(Mast)Front inclination angle of mast5°Left and right inclinations of mast±4°(Hydraulic pump)The maximum working pressure of system32MPa(Hole depth

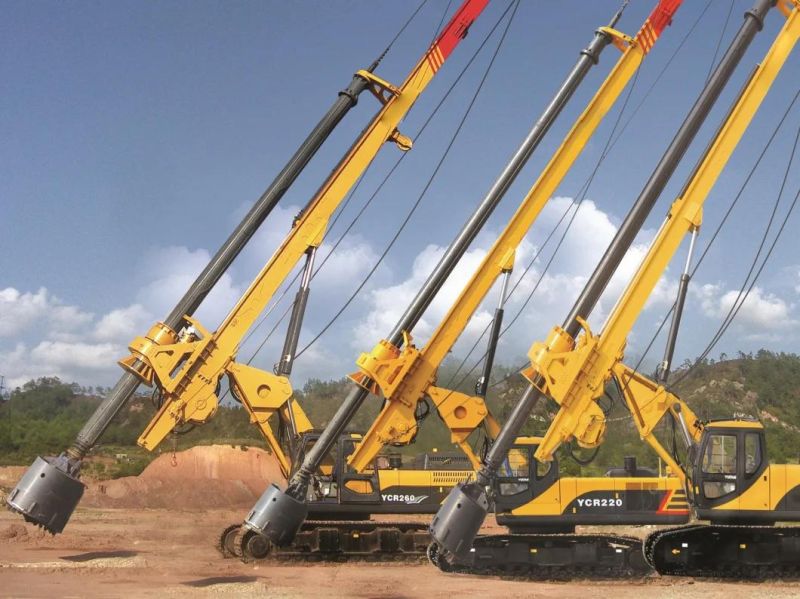

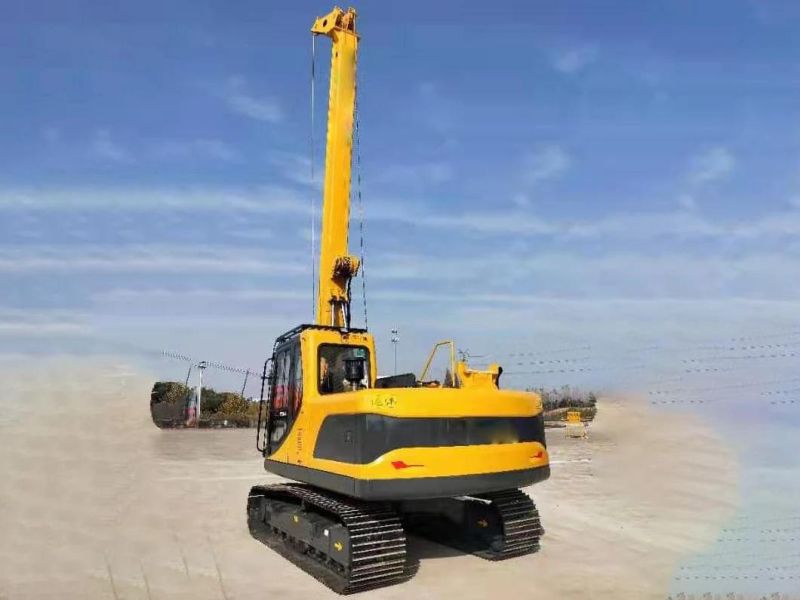

and diameter)The maximum drilling diameter1.2mThe maximum drilling depth28m/22m(4/3)Weight at working state20 t()15.7t()19tDrill pipe(The standard configuration)∅299-4x7.6 m(optional configuration )∅299-3x7.6 m Product image
Small 22m Diesel Portable Rotary Drilling Rig Machine Ycr60dSmall 22m Diesel Portable Rotary Drilling Rig Machine Ycr60dSmall 22m Diesel Portable Rotary Drilling Rig Machine Ycr60dSmall 22m Diesel Portable Rotary Drilling Rig Machine Ycr60d
