• Model NO.：XR220D
• Type：Crawler
• Rated Power：242kw
• Working Pressure：35MPa
• Rotary Speed：22r,Min
• Track Shoe Width：800mm
• The Length of Crawler：5715mm
• Overall Drilling Weight：700t
• Transport Package：Nude
• Specification：16355x3500x3510
• Trademark：Oriemac
• Origin：China
• Production Capacity：350units,Month

Basic Info.

Model NO. XR220D Type Crawler Rated Power 242kw Working Pressure 35MPa Rotary Speed 22r/Min Track Shoe Width 800mm The Length of Crawler 5715mm Overall Drilling Weight 700t Transport Package Nude Specification 16355x3500x3510 Trademark Oriemac Origin China Production Capacity 350units/Month

Product Description

New Hydraulic Articulated Rotary Drilling Rig XR220D
Contact Person: Vicky Zhu


Product Description

The machine adapt single row rope for main winch to figure out the wear of steel rope. and extend the life-span.

With infrared camera for observing main winch , Manipulator can observe the state of steel rope at day and night in cab.

Optional configuration according to customers' requirement (eg: support cylinder , automatic positioning of slewing , Crowd Winch tyro crowd winch CFA, hydraulic casing oscillator, DTH hammer ) Excellent expansibility.

Adopting the supercharged CUMINS engine with European effluent standard. Meet environmental protection and energy conservation . Super power.

With the hydraulic pressure system adopted threshold power control and positive flow control, the system acquired high efficiency and higher energy conservation.

The patented parallelogram articulated structure actualizes a wider work range . The highly strengthened box-type steel structure design makes the mast of highly-rigidity and intensity , therefore the drill accuracy is heightened .

The machine has passed CE certification of TüV Rheinland group.

Standard centralized lubricating system, allowing easier maintenance.

Product Parameters

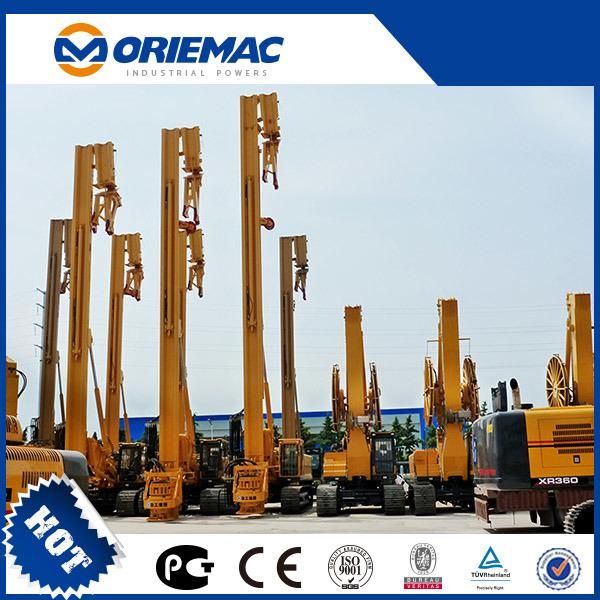

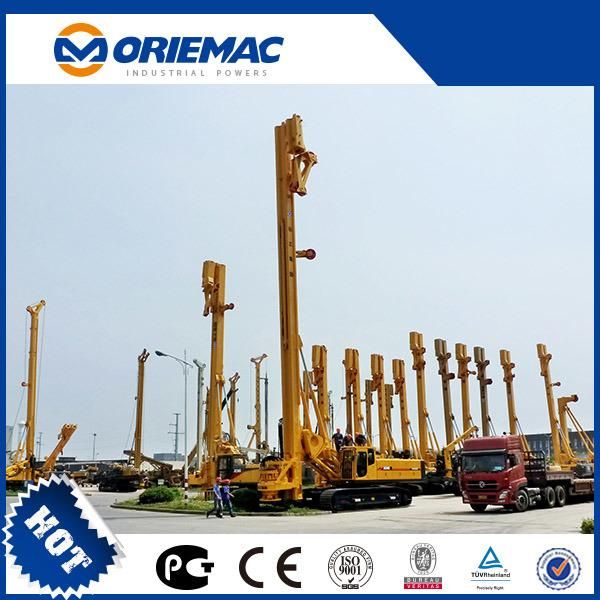

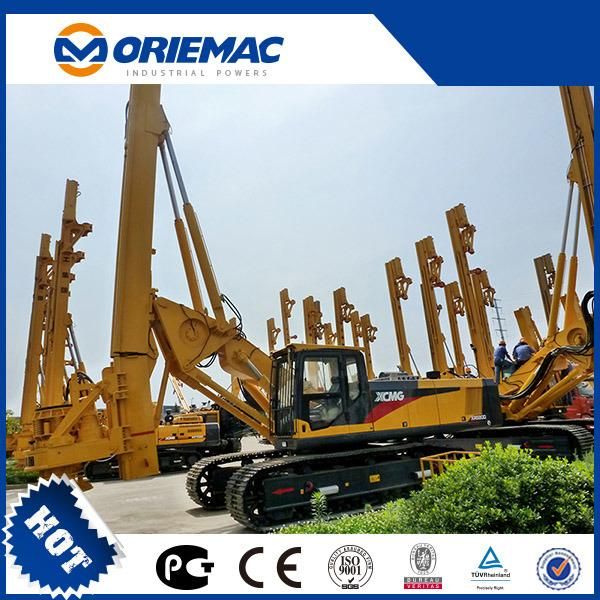

Product Show
