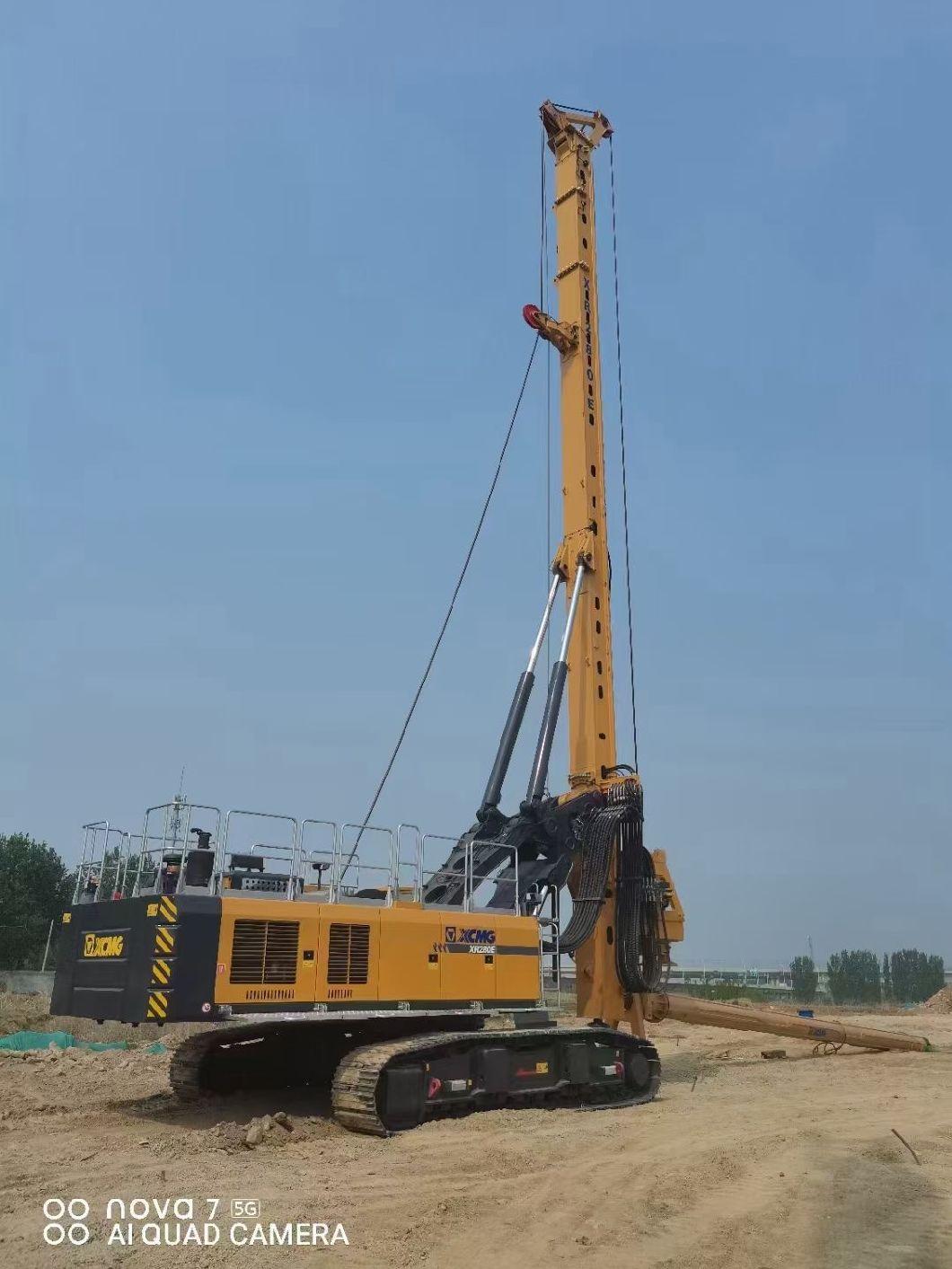

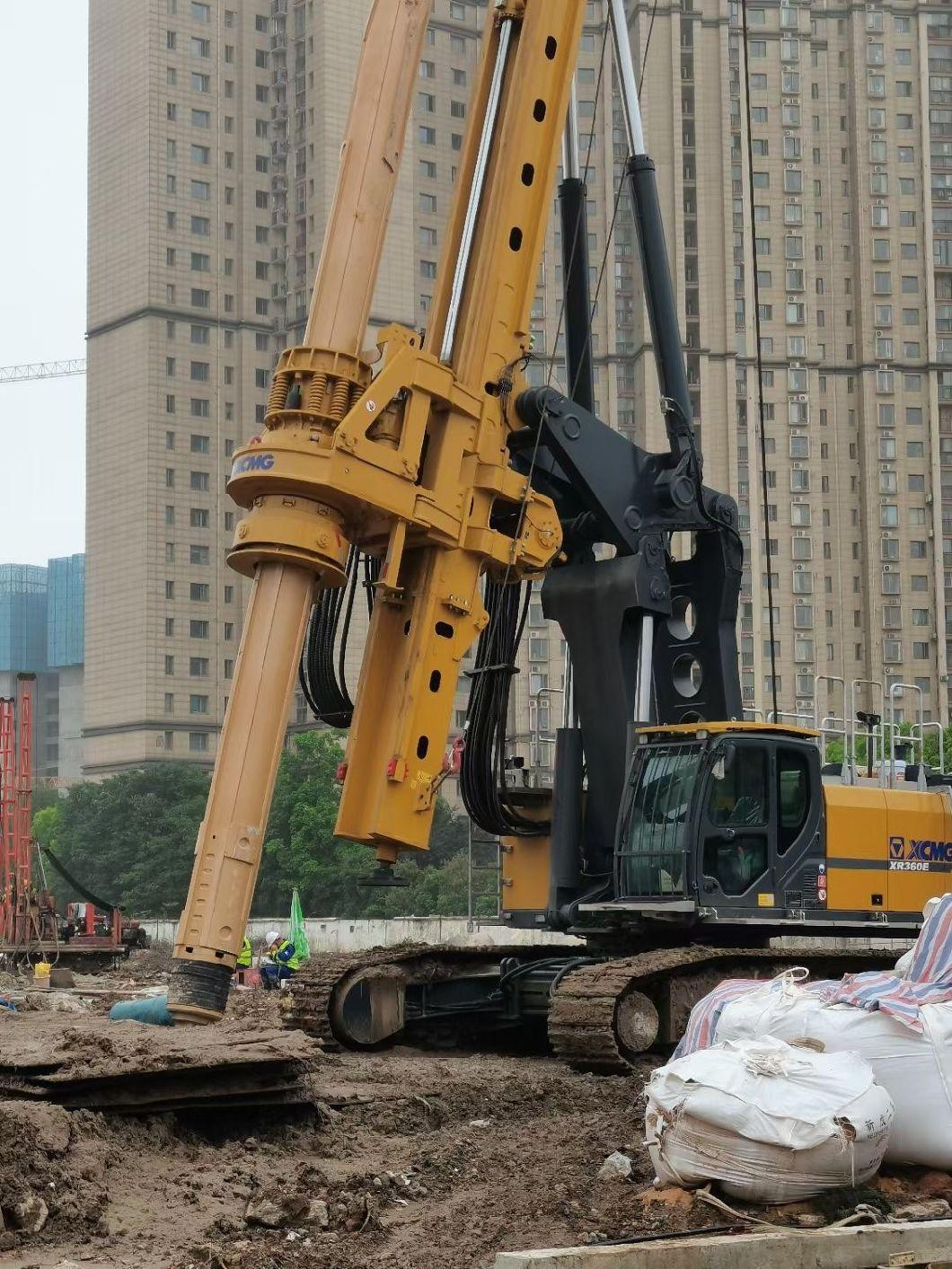

Piling Machinery New Hydraulic Rotary Drilling Rig Xr240e Xr280e Xr320e
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Drill Hole Depth：50-70m
- Drilling Way：Rotary
- Type：Crawler
- Brand Name：Oriemac
Base Info
- Model NO.：XR240E XR280E
- Transport Package：Nude Packing
- Specification：ISO, CE, GOST
- Trademark：ORIEMAC
- Origin：China
- HS Code：1
Description
Item
Unit
Parameters
Working capacity
Max diameter
mm
Φ2200mm(Crowd Cylinder)
Φ2000mm(Crowd Winch)
Max depth
m
70
Engine
Model
-
TAD1171VE
Rated power
kw
265
Tank volume
L
580
Rotary drive
Max torque
kN.m
240
Speed
r/min
7-30
Working condition
Overall working height
m
22.7
Overall working weight
t
82
Crawler
Crawler width
mm
3250-4400
Shoes width
mm
800
Shoes length
mm
5715
Driving force
kN.m
485
Travel speed
km/h
0-1.8
Mast
Lateral
°
4
Forward
°
5
Crowd cylinder
Max crowded force
kN
210
Max extraction force
kN
220
Stroke
mm
5000
Slow speed
m/min
5.8
High speed
m/min
12
Crowd winch (optional)
Max crowded/ extraction force
kN
250/250
Stroke
m
13
Slow speed
m/min
7
High speed
m/min
30
Diameter of ropes
mm
24
Main winch
Max extraction force
kN
240
Speed
m/min
0-70
Diameter of ropes
mm
32
Auxiliary winch
Max extraction force
kN
80
Speed
m/min
0-70
Diameter of ropes
mm
20
Hydraulic system
Max flow
L
2x280+90
Max working pressure
Mpa
34
