• Model NO.：YGY-130YY, YGY-180YY, YGY-200YY
• Bit Type：Drag Bit
• Drilling Way：Rotary
• Type：Crawler
• Application：Water Well,Geological Exploration
• One-Time Advance Length：3300mm
• Power：32kw
• Name：Water Well Drilling Machine
• Weight：5500kg
• Air Consumption：17~35m³,Min
• Drilling Depth：200m
• Swing Speed：48~70rpm
• Air Pressure：1.7~3.0MPa
• Transport Package：Export Wooden Box,According to Your Needs
• Specification：3800*1600*2450mm
• Trademark：Yugong,OEM
• Origin：Henan
• HS Code：8430419000
• Production Capacity：600 Sets,Month

Basic Info.

Model NO. YGY-130YY, YGY-180YY, YGY-200YY Bit Type Drag Bit Drilling Way Rotary Type Crawler Application Water Well/Geological Exploration One-Time Advance Length 3300mm Power 32kw Name Water Well Drilling Machine Weight 5500kg Air Consumption 17~35m³/Min Drilling Depth 200m Swing Speed 48~70rpm Air Pressure 1.7~3.0MPa Transport Package Export Wooden Box/According to Your Needs Specification 3800*1600*2450mm Trademark Yugong/OEM Origin Henan HS Code 8430419000 Production Capacity 600 Sets/Month

Product Description

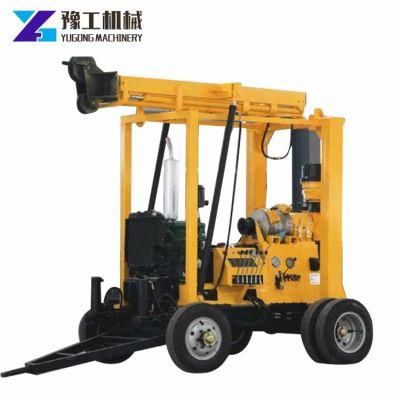

Cheap 200m Depth Bore Hole Portable Rotary Water Well Drilling Rig Machine

Product Description

Application Of Water Well Drilling Rig

This water well rig is a light, efficient and versatile drilling and drilling equipment powered by a diesel engine. It is mainly used for drilling wells, agricultural irrigation wells and other wells, especially for mountainous and rock formations. Water intake project. This series of rigs adopts new hydraulic technology, which is equipped with high-torque hydraulic motor rotation and large-bore hydraulic cylinder advancement.

Description Of Water Well Drilling Rig

Yugong multi-purpose deep water well drilling rig is our independent research  and development products. Adopting newest model & advanced hydro technology, our water well drilling machine are mainly used for well drilling in resource exploration hydrology wells, civil use water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas, terrestrial heat, or salvage work.

Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customer's positive feedback.


Technical Parameters Of Water Well Drilling Rig

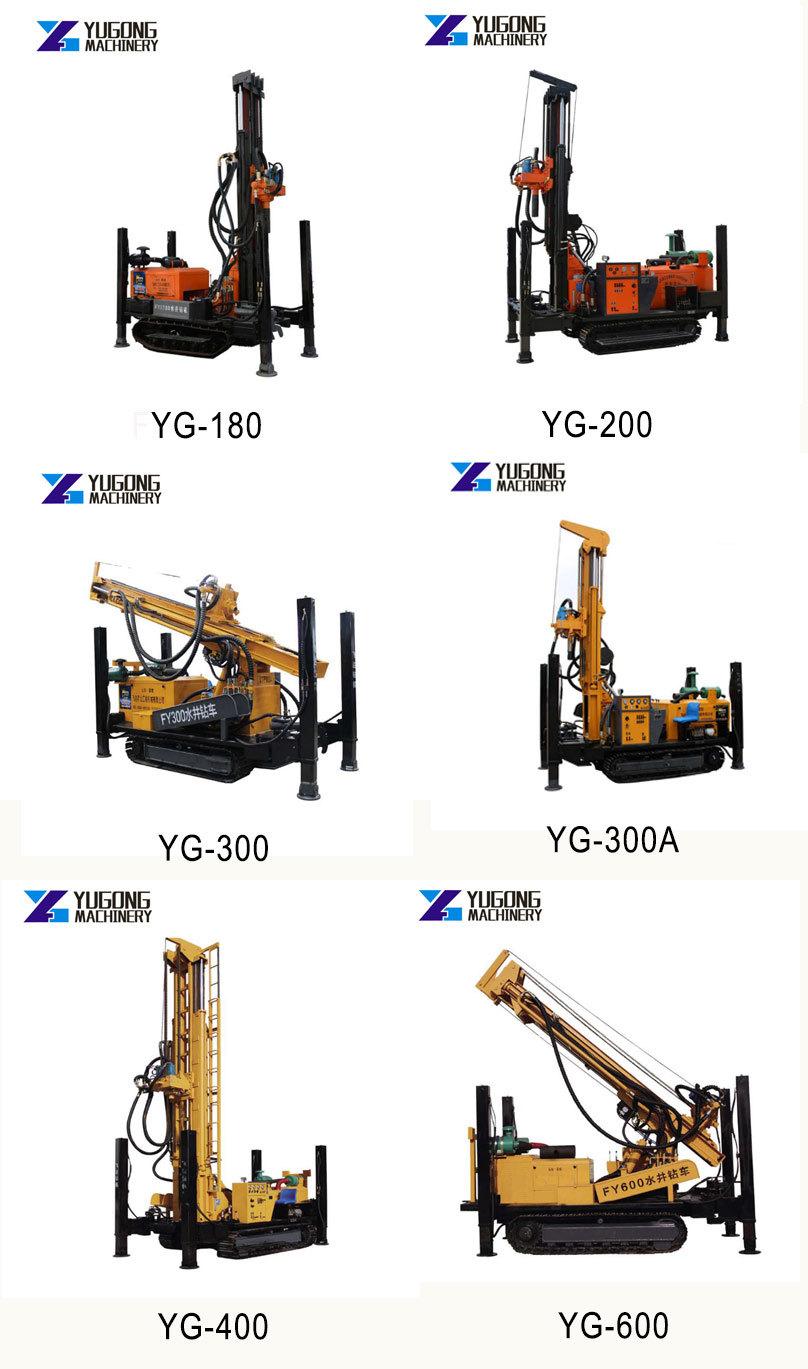

Model	YG-130	YG-200	YG-300	YG-300A	YG-400	YG-600
Weight(Ton)	3	5.5	9	7	10	12
Drilling Diameter(mm)	100~219	140~305	140~325	140~325	140~350	140~350
Drilling Depth(mm)	130	200	300	260	400	6000
Walking Speed(Km/h)	0.8	2.5	2.5	2.5	2.5	2.5
Climbing Angles	30	30	30	30	30	30
Power(Kw)	32	65	84	75.8	95	115
Pressure(Mpa)	1.45~2.5	1.7~3.0	1.7~3.3	1.7~3.0	1.7~3.5	1.7~3.5
Air Consumption(m³/Min)	15~29	17~30	17~35	17~35	17~35	17~35
Drilling Pipe Diameter(mm)	76/89	76/89/102	89/102	76/89/102	76/89/102	76/89/102
Drilling Pipe Length(M)	1/1.5	1.5/2.0/3.0	1.5/2.0/3.0	1.5/2.0/3.0	1.5/2.0/3.0	1.5/2.0/3.0
Rig Lifting Force(T)	5	18	28	24	24	30
Swing Speed(Rpm)	40~65	50~70	55~115	40~70	45~115	45~115
Swing Torque(N.M)	2600~4000	5000~6500	7200~9500	7000~9000	8500~10000	8500~10500
Dimension	4000*1450*2050	3800*1700*2350	5500*1950*2780	4100*1900*2600	5200*2000*2780	5400*2100*2850

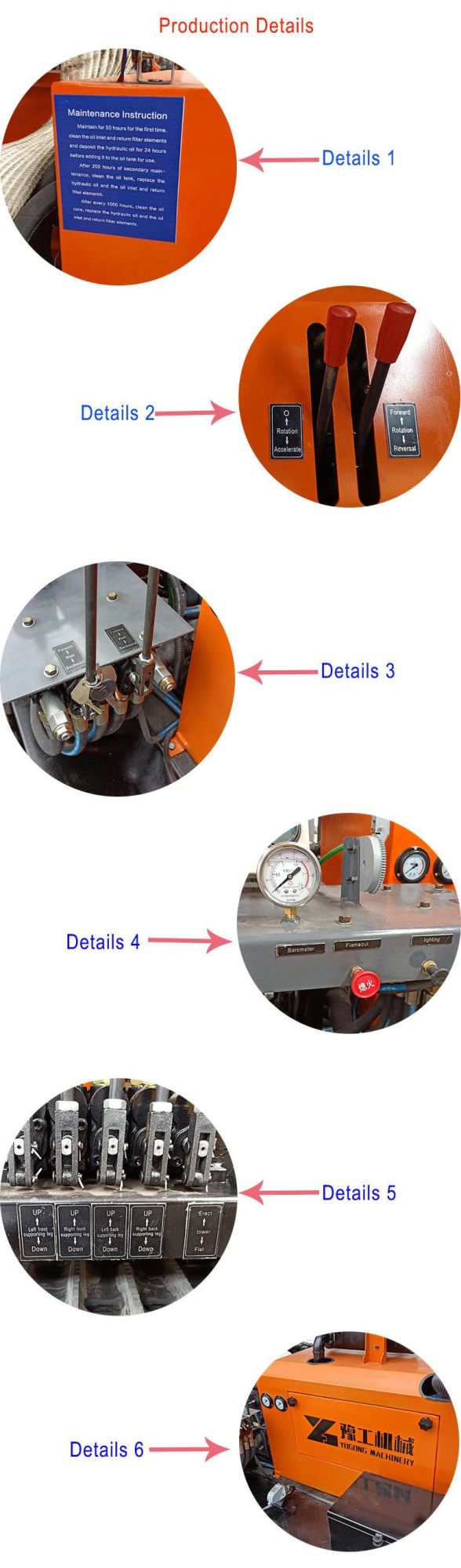

Product Details

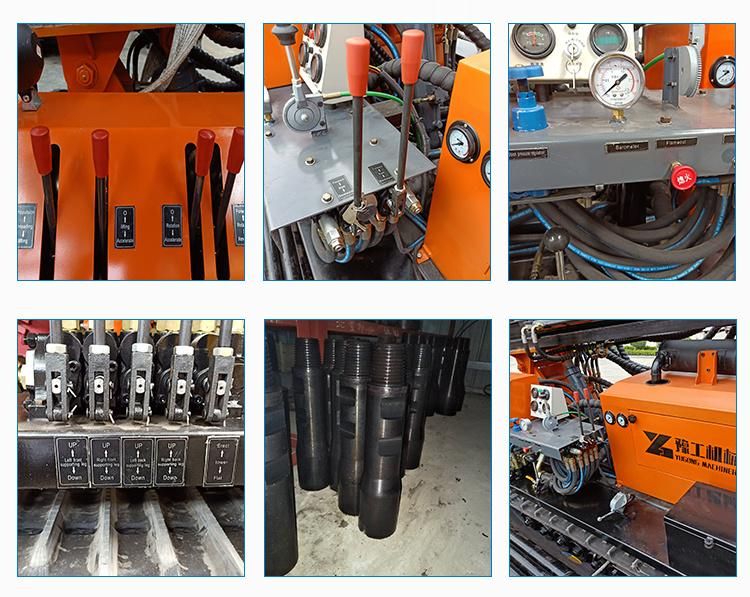

Details About The Water Well Drilling Rig

Related Products

Related Products About The Water Well Drilling Rig

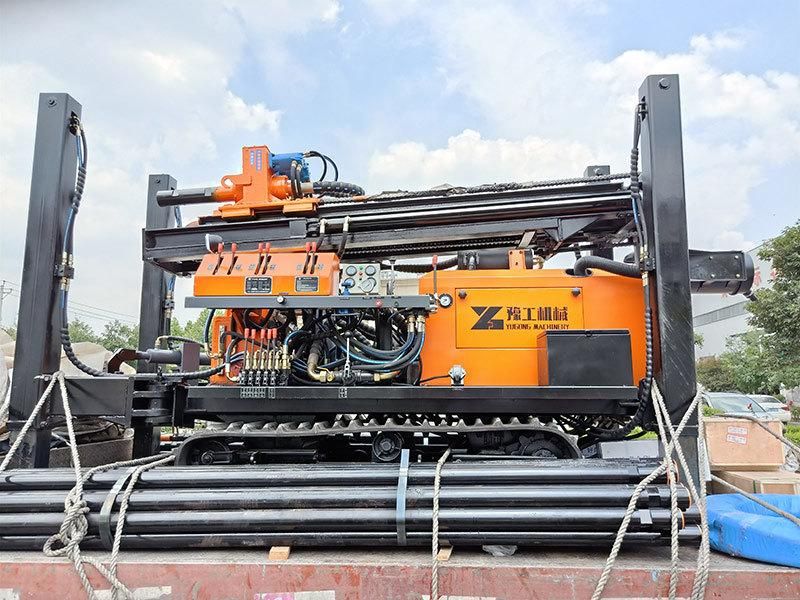

Packaging & Shipping

Packaging Details

1. Wrapped by protective film;
2. Packed by standard import & export wooden cases or carton boxes;
3. Customized according to your requirement.


Delivery Time

Within one week


Shipping

Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.

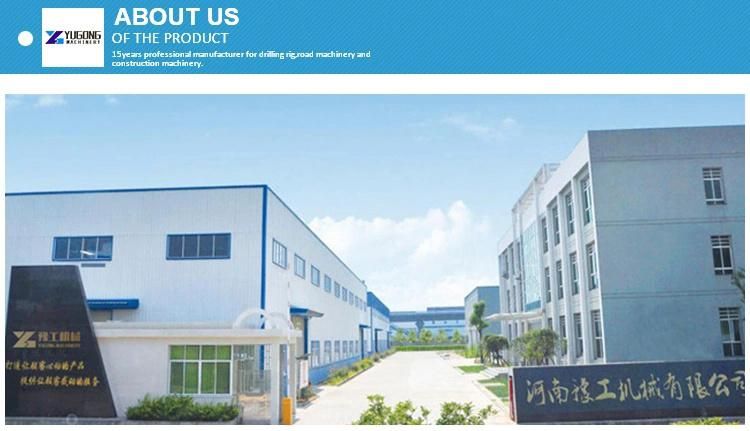

Company Information



Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipment and so on.

We believe that good quality can give us survival, thus we only provide you with top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.

All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
