150m Hydraulic Crawler DTH Drilling Machine Using Hammer

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
  • Certification：ISO 9001:2008, BV, SGS
  • Condition：New
  • Motor：Diesel Engine or AC Motor
  • Drill Hole Diameter：105-200mm
  • Drill Hole Depth：100-150m
  • Bit Type：DTH Bit

Base Info

  • Model NO.：DFQ-150
  • Drilling Way：Rotary Impacting,Percussion
  • Type：Rotary Drilling Rig
  • Depth：150m
  • Diameter：203~105mm
  • Working with：Air Compressor or Mud Pump
  • Operation：Full-Hydraulic
  • Auxiliary Equipment：DTH Hammer and Bits
  • Mobility：Wheel Trailer, Crawler or Truck
  • Dfq Series：100m~500m
  • Usage：Ore, Water Well
  • Power Type：Diesel
  • Transport Package：Standard Export Packing
  • Specification：150M DTH RIG
  • Trademark：DEFY
  • Origin：Henan, China
  • Production Capacity：200 Sets,Month

Description

Speed of spindleFast  120 rpmSlow  85 rpm17Rotary torque2000N.m18Weight2800 Kg19DimensionL3500×W1770×H2300mm20Mud pumpBW-160    III. Drilling capability at 100~200m per day when hard rock ground is complete

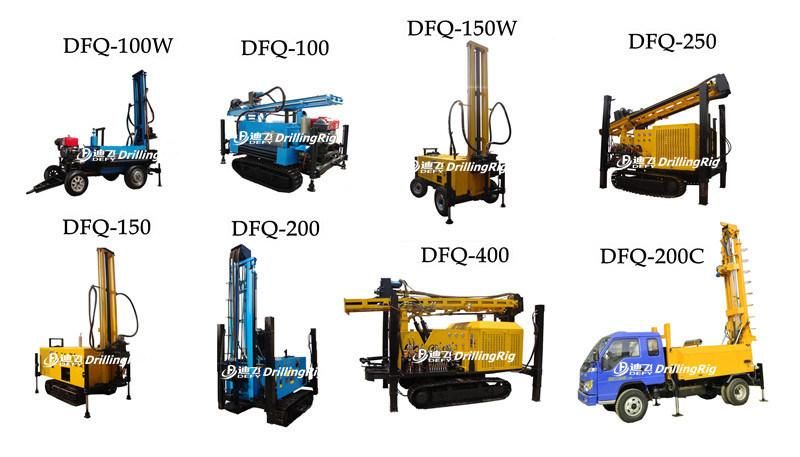

Model Drilling CaliberMax. Drilling depthMovable Chassis
DFQ-100105~150mm100mcrawler
DFQ-100W105~150mm100mtrailer
DFQ-150105~203mm150mcrawler
DFQ-150W105~203mm150mtrailer
DFQ-200105~203mm200mcrawler
DFQ-200W105~203mm200mtrailer
DFQ-250115~220mm250mcrawler
DFQ-300105-305mm300mcrawler
DFQ-400105-400mm400mcrawler

150m Hydraulic Crawler DTH Drilling Machine Using Hammer

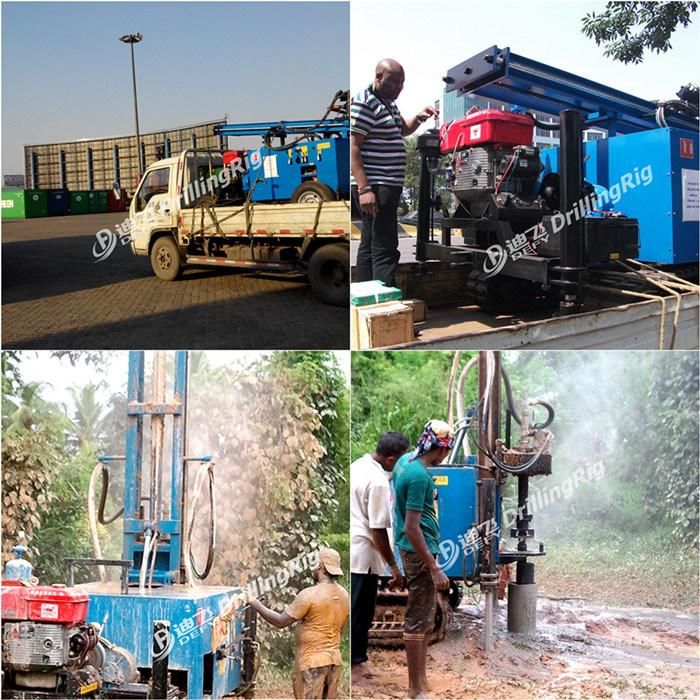

IV. Shipment & Serving on Working Site


150m Hydraulic Crawler DTH Drilling Machine Using Hammer
