6m Crane Auger Drilling Rig for Pole

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
  • Type：Rotary Drilling Rig
  • Condition：New
  • Model：Dft-A1004
  • Pile Depth：6m
  • Pile Diameter：1000mm~2000mm
  • Overseas Training：Yes, Available

Base Info

  • Model NO.：DFT-A1004
  • Pressure Pile Driver Type：Hydraulic Pile Driver
  • Pile Hammer Type：Auger Rod
  • Power Source：Diesel
  • Motor Power：100kw
  • Noise：With Noise
  • Certification：ISO 9001:2008, CE, ISO 9001:2000, SGS

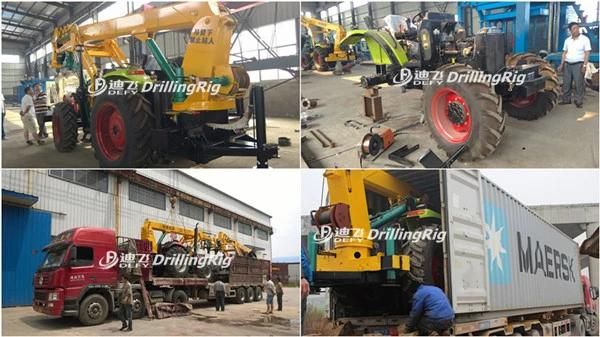

  • Transport Package：Standard Export Packing
  • Specification：BV&SGS&ISO
  • Trademark：DEFY
  • Origin：Zhengzhou, Henan Province, China
  • HS Code：8430490000
  • Production Capacity：200 Sets,Month

Description

Basic Info.

Model NO. DFT-A1004 Pressure Pile Driver Type Hydraulic Pile Driver Pile Hammer Type Auger Rod Power Source Diesel Motor Power 100kw Noise With Noise Certification ISO 9001:2008, CE, ISO 9001:2000, SGS Transport Package Standard Export Packing Specification BV&SGS&ISO Trademark DEFY Origin Zhengzhou, Henan Province, China HS Code 8430490000 Production Capacity 200 Sets/Month

Product Description

DFT-A1004 Crane Auger Drilling Rig for Pole

I. Brief introduction:
DFT-A1004 auger drilling rig is patent product of Zhengzhou Defy, with Patent Certificate, adopting full hydraulic control, with crane, tractor, auger onto one base, greatly reducing working time, labor cost, etc. It is widely used for Cement pole borehole of power construction, Photovoltaic (pv) stent pile foundation drilling, Pile foundation of building construction and so on.
6m Crane Auger Drilling Rig for Pole

II. Specification of DFT-A1004:
Drilling depth0 -6m
Drilling diameter1m-2m
Standard drill pipe300mm-500mm (can customize 500~1000mm drill pipes)
Lifting methodFull hydraulic
Standard drilling time40s (diameter of 300mm-500mm)
Drill Head MaterialTungsten alloy
Auger MaterialHigh-manganese carbon steel
Crane5 ton or 8 ton for choice
TractorModel 1004 BOMR tractor, 100HP
DimensionL5900*W2000*H2600mm
Weight7.3 t
Applicationloess, clay, pebble sand, weathered granite, tundra.
Not suitable forrocks, whole sand bed ,household garbage and so on.
Operator needed1 person
6m Crane Auger Drilling Rig for Pole
III. Highlights:
1. Have four hydraulic stabilizer legs, with cross-country 2 or 4 wheel-drive, with wide tires

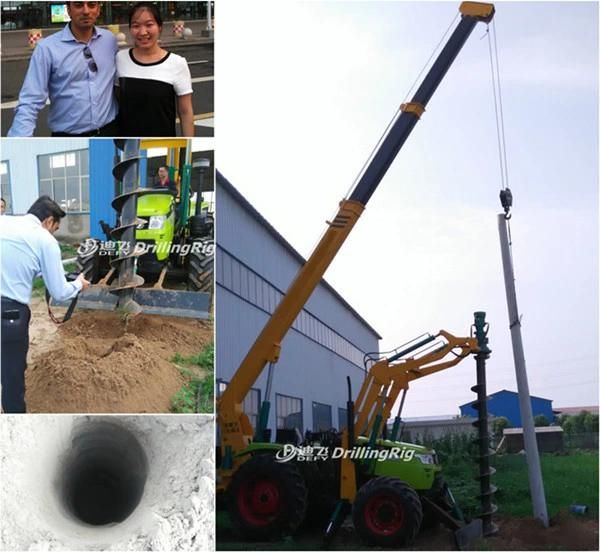

2. 360° rotation gear motor, hydraulic hoisting and drilling system, combining the auger drill rig with crane, one equipment can realize the drilling and pole uprighting work, more efficient and cost-effective.
3. BOMR tractor as power, strong enough, strong cross-country power. Fully hydraulic driving.  Full-automatic put and upright the pole.
