• Model NO.：DFQ-150W
• Type：Rotary Drilling Rig
• Mobile Base：Crawler or Wheels or Tractor
• Max. Drilling Depth：150m
• Color：Blue or Yellow
• Rock Hardness：F=6~12
• Drilling Speed：3-5min Per Meter
• Dimension(L*W*H)：L3500*W1770*H2300mm
• Power(W)：44kw
• Usage：Water Well
• Power Type：Diesel
• Transport Package：One 20gp Container
• Specification：BV,SGS
• Trademark：DEFY
• Origin：China(Mainland)
• HS Code：8430490000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DFQ-150W Type Rotary Drilling Rig Mobile Base Crawler or Wheels or Tractor Max. Drilling Depth 150m Color Blue or Yellow Rock Hardness F=6~12 Drilling Speed 3-5min Per Meter Dimension(L*W*H) L3500*W1770*H2300mm Power(W) 44kw Usage Water Well Power Type Diesel Transport Package One 20gp Container Specification BV/SGS Trademark DEFY Origin China(Mainland) HS Code 8430490000 Production Capacity 50 Sets Per Month

Product Description

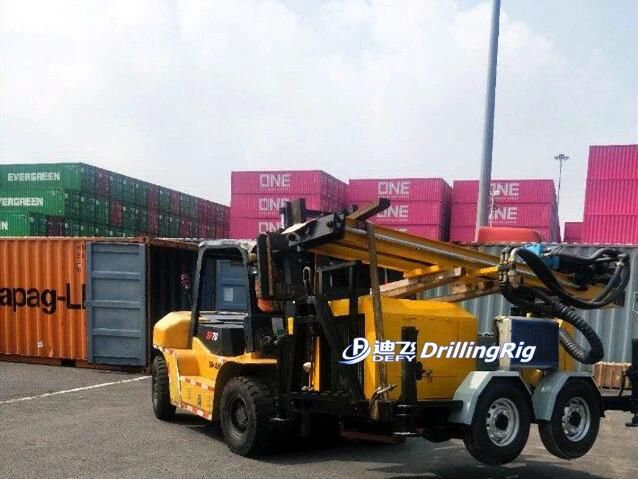

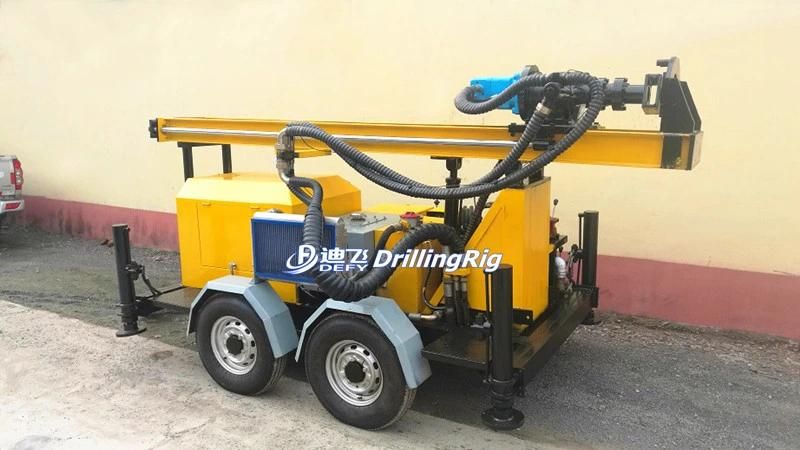

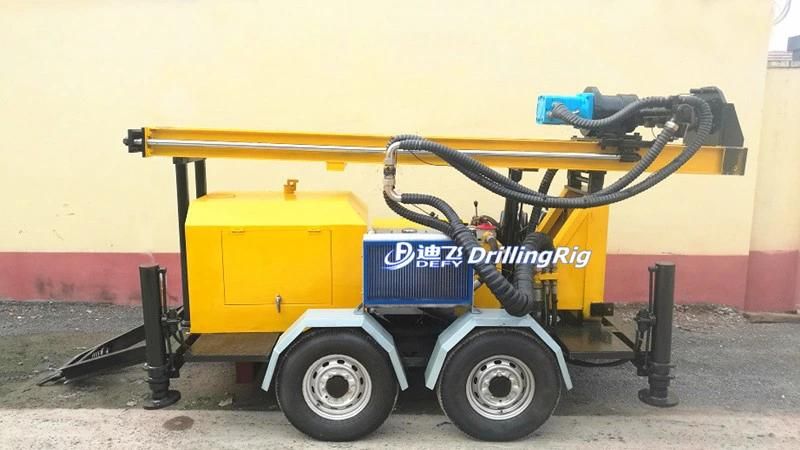

Portable Water Well Borehole Drilling Rig in Chile

Portable Water Well Borehole Drilling Rig in Chile
*150m drill depth, 105-203mm caliber
*DTH drill rools, Fastest drilling rig for Rocky areas
*Top drive, Fully Hydraulic drilling
*Can work with both Mud pump and Air compressor
* Wheels type and crawler type for your choice


DEFY DFQ Series Exported records in the first half year of 2019
1.13 DFQ-100 ------Russia ------ one set
2.6 DFQ-150W --- Peru ------ one set
2.11 DFQ-100W ---Chile ------- one set
2.17 DFQ-300 ------Argentina--- one set
3.3 DFQ-100W ---Gabon ------ one set
4.18 DFQ-150 ------ Russia ----- one set
4.27 DFQ-200------ Libya ------- one set
5-28 DFQ-100 ------ Angola ----- one set
6.15 DFQ-150W ---- Chile------ one set

Remarks: Dear friend, thank you for your time! We are professional manufactuer of drilling rig and tools, please feel free to inform me your drilling depth (m) and caliber (mm), our engineers will design a complete perfect configuration list for you!
