Dfy-100 Hydroblasting Hole Stone Quarry Drilling Machines for Sale
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.- Certification：ISO 9001:2008
- Condition：New
- Motor：AC Motor or Diesel Engine
- Drill Hole Diameter：80-105mm
- Drill Hole Depth：10-20m
- Bit Type：DTH Bit
Base Info
- Model NO.：DFY-100
- Drilling Way：Impactor
- Max Depth：20m
- Max. Drilling Diameter(mm)：80-105mm
- Application：Blast Hole, Stone Quarry, Down The Hole Drilling
- Control System：Hydraulic Control System
- Size of Drill Pipe：60mm*2000mm
- Air Consumption：at Least 10m3 Per Minutes
- Size：4100*2030*2020mm
- Weight：3300kg
- Remark：Pneumatic and Hydraulic Power
- Gradeability：30°
- Usage：Ore, Water Well, Coal
- Power Type：Diesel
- Type：Down The Hole Hammer Drill Rig
- Transport Package：Container
- Specification：20M ROCK BLASTING DRILL RIG
- Trademark：DEFY
- Origin：Zhengzhou, Henan Province
- Production Capacity：50 Sets
Description
DFY-100 hydroblasting hole stone quarry drilling machines for sale
Rigidity rock
F=6-20
Diameter of hole
80-105mm
Optium drilling depth
20m
Working pressure
5-7bar
Air consumption
≥10m³/min
Rotation speed
0-65rpm
Lift power
15KN
Size of drill pipe
Φ60*2000mm
gradeability
30°
groundclearance
254mm
Walking speed
2.0 km/h
Sliding carrier pitch angle
-118.5° +23.5°
Sliding carrier swing angle
-11.5 + 36.5°
Sliding carrier supply
900mm
Size of drill rig
4100*2030*2020mm
Weight of drill rig
3300kg
remark
Pneumatic and hydraulic power

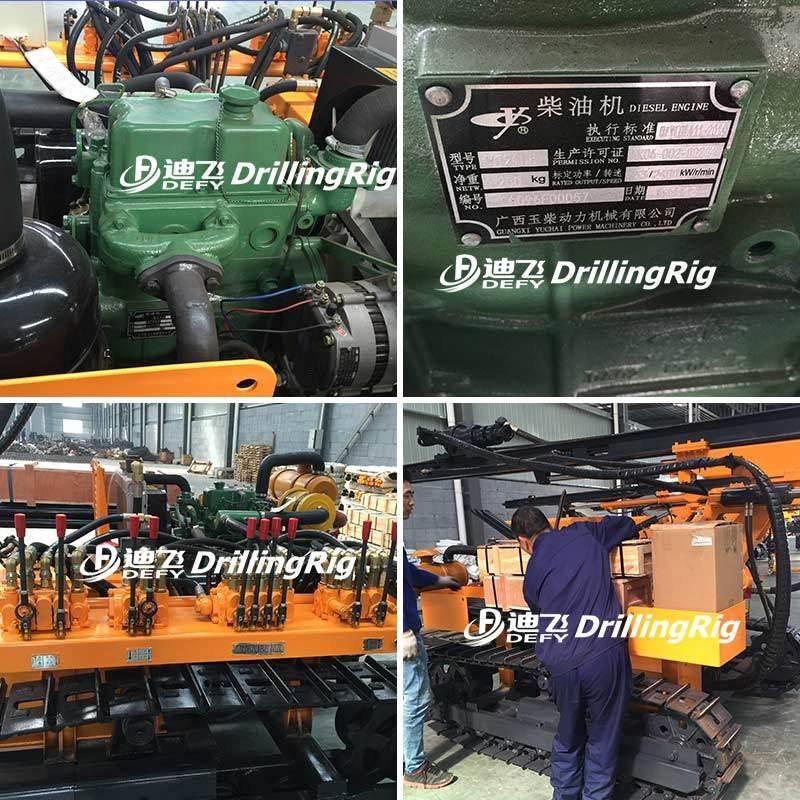

Detail Pictures:
DFY-100 hydroblasting hole stone quarry drilling machines adopt YuChai diesel engine, offer sufficient power for 20m blast hole drilling, operation handles are easy to operate.

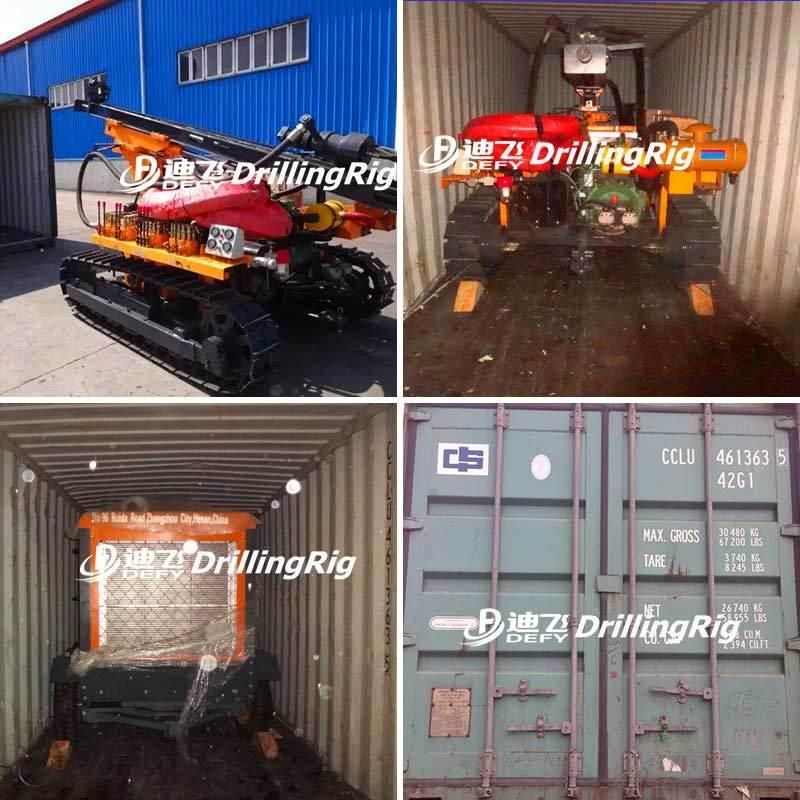

Delivery Pictures:
DFY-100 hydroblasting hole stone quarry drilling machines delivery to Columbia:
Our Company:
ZhengZhou Defy 12 years professional exporting experience, realiable drilling machine manufacturer since 1970S.
Defy offer water well drilling machines drilling depth from 100m, 200m, 400m, 600m, 800m and 1500m. with 75-1500mm diameter. geotechnical core drilling machine from 0-3000m depth.
Spindle rotary type drilling machine, pneumatic air operated drilling machine,stone quarry drilling machines, trailer, crawler, truck mounted drilling machine for your choices.
